Connecting to a HD receiver,
DVD, or VCR player
Connect a HD receiver, DVD, or VCR player to the
TV and select an appropriate input mode.

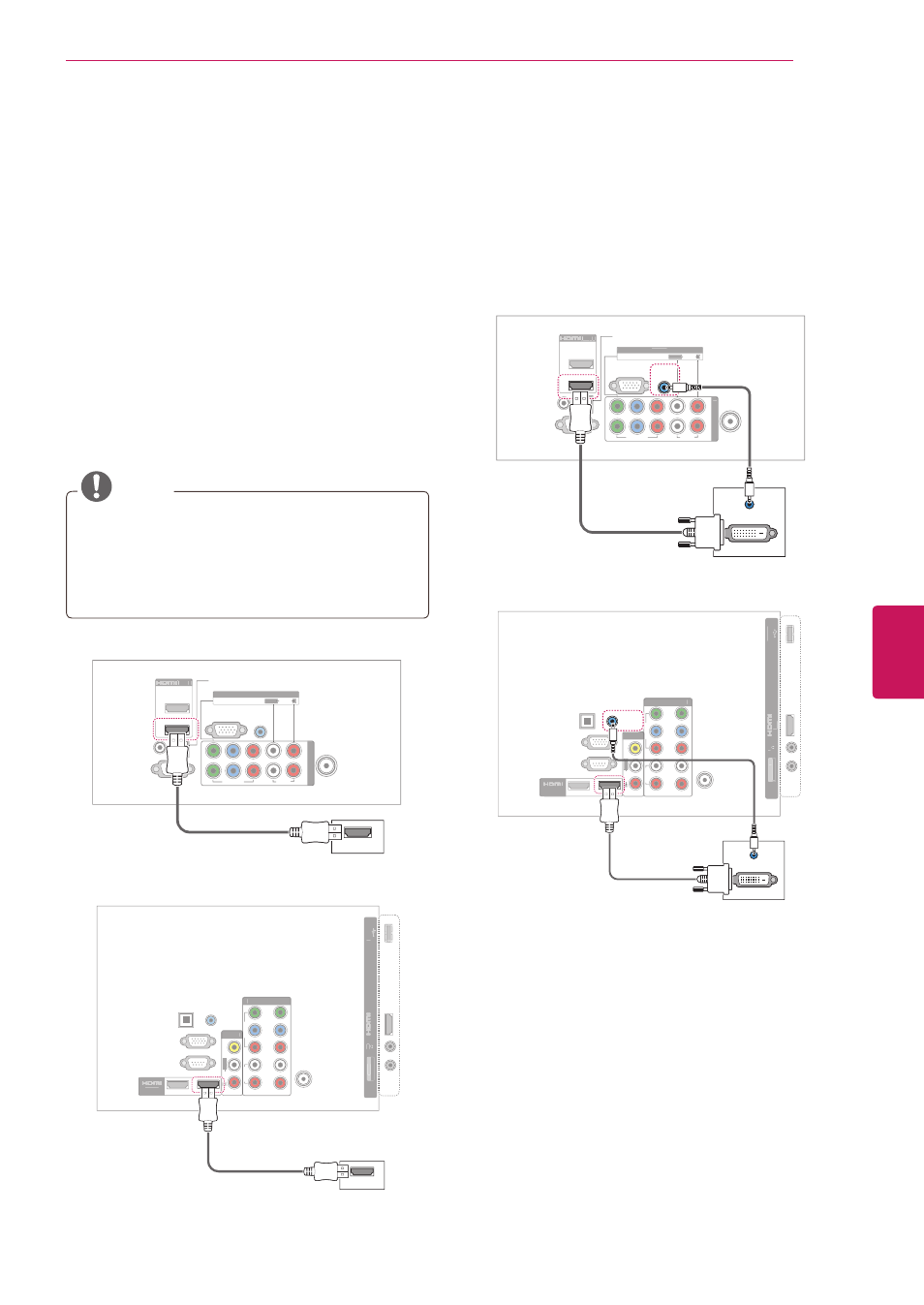

HDMI Connection
Transmits the digital video and audio signals from
an external device to the TV. Connect the external
device and the TV with the HDMI cable as shown
in the following illustration.
NOTE
y
y
Use the latest High Speed HDMI™ Cable
with CEC (Customer Electronics Control)
function.
y
y
High Speed HDMI™ Cables are tested to
carry an HD signal up to 1080p and higher.
PW350 series
CO
M
PO
NE
NT
IN
VIDEO
AUDIO
Y
L
P
B
P
R
R
RGB IN (PC)
AUDIO IN
(RGB/DVI)
ANTENNA
/CABLE
IN
RS-232C IN
(CONTROL & SERVICE)
REMOTE
CONTROL IN
OPTICAL
DIGITAL
AUDIO OUT
AV IN 1
1
/DVI IN
VIDEO
AUDIO
L/MONO
O
O
R
R
R
2
1
2
HDMI
LV3500 series
IN
3
US
B
IN
LAN
OPTICAL DIGITAL
AUDIO OUT
PTICAL DIGIT
TICAL DIGIT
ANTENNA/
CABLE IN
ANTENNA
ANTENNA
H/
P
ANTENNA /
CABLE IN
RS-232C IN(CONTROL & SERVICE)
RGB IN(PC)
(RGB/DVI)
AUDIO IN
OPTICAL
DIGITAL
AUDIO OUT
1
2
VID
EO
AUDI
O
COMPONENT IN
Y
P
B
P
R
R
L
VID
EO
AU
DIO
R
R
AV IN 1
/ DVI IN
2
1
L/M
ON
O
AV IN
2
VID
EO
/
AU
DI
O
HDMI
DVI to HDMI Connection
Transmits the digital video signal from an external
device to the TV. Connect the external device and
the TV with the DVI-HDMI cable as shown in the
following illustration. To transmit an audio signal,
connect an audio cable.
