ASSEMBLING AND PREPARING
32LV2500, 32LV2520, LV3500, LV3520, LW5000 series
NOTE
y y You can set the power indicator light to on or off by selecting OPTION in the main menus.
Touch button 2 Description
/ I Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the main menus, or saves your input and exits the menus.
ENTER ⊙ Selects the highlighted menu option or confirms an input.
- VOL + Adjusts the volume level.
v CH ^ Scrolls through the saved channels.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
IN
3
USB IN
LAN OPTICAL DIGITAL
AUDIO OUT
ANTENNA/
CABLE IN
ENTER CH VOL HOME INPUT
AV
IN
2
VIDEO /
AUDI
O
H/
P
ANTENNA /
CABLE IN
RS-232C IN(CONTROL & SERVICE)
RGB IN (PC)
(RGB/DVI)
AUDIO IN
OPTICAL
DIGITAL
AUDIO OUT
1 2
VIDE
O
AUDI
O
COMPONENT IN
Y
P
B
P
R
R
L
VIDE
O
AUDI
O
L/MONO
R
AV IN 1
/ DVI IN
2 1
USB IN
IN
3

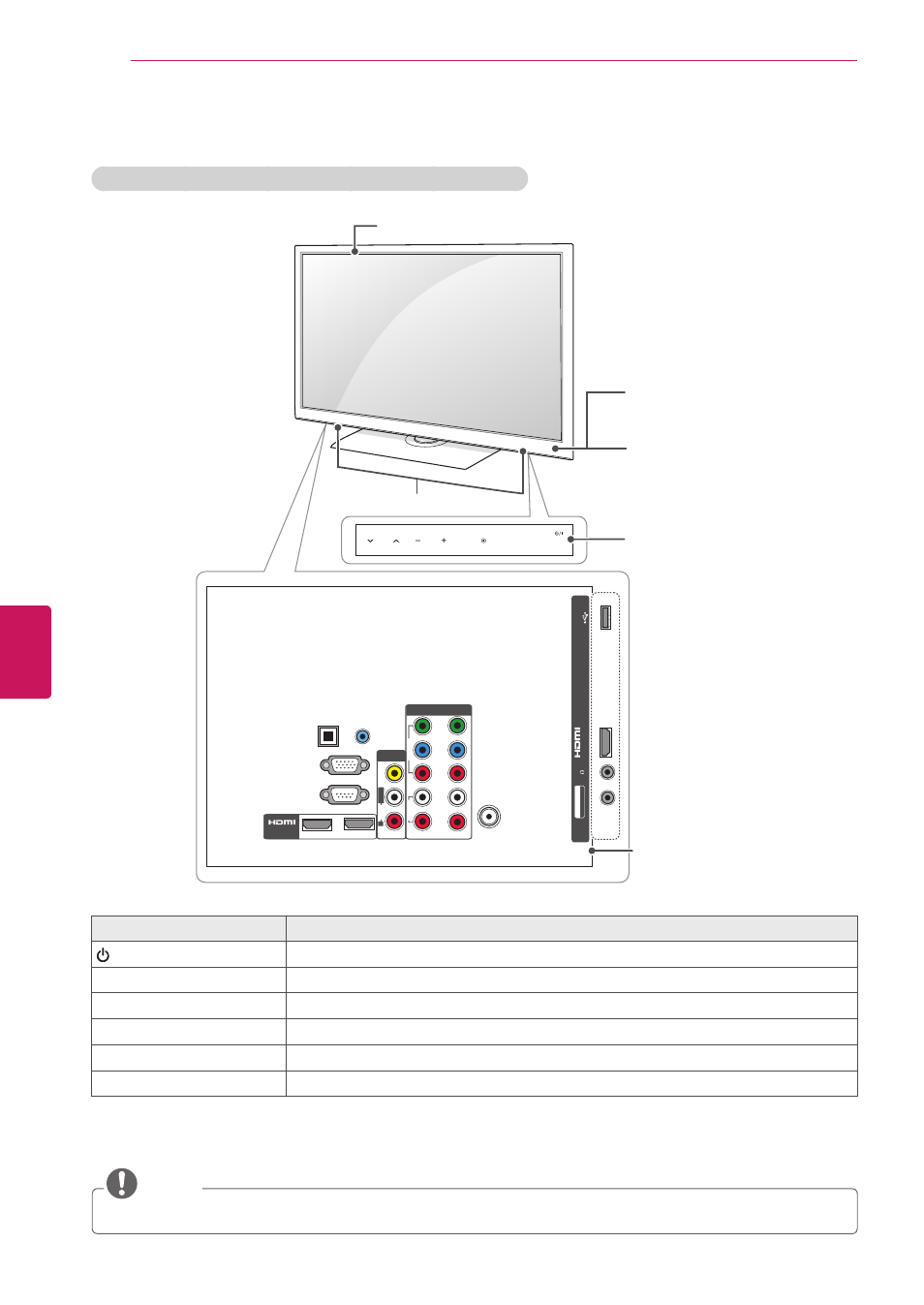

Screen
Touch buttons 2
Power indicator
Remote control and
intelligent 1 sensors
Rear Connection panel
(See p.73)
Speakers
