EXTERNAL EQUIPMENT SETUP
DVD SETUP

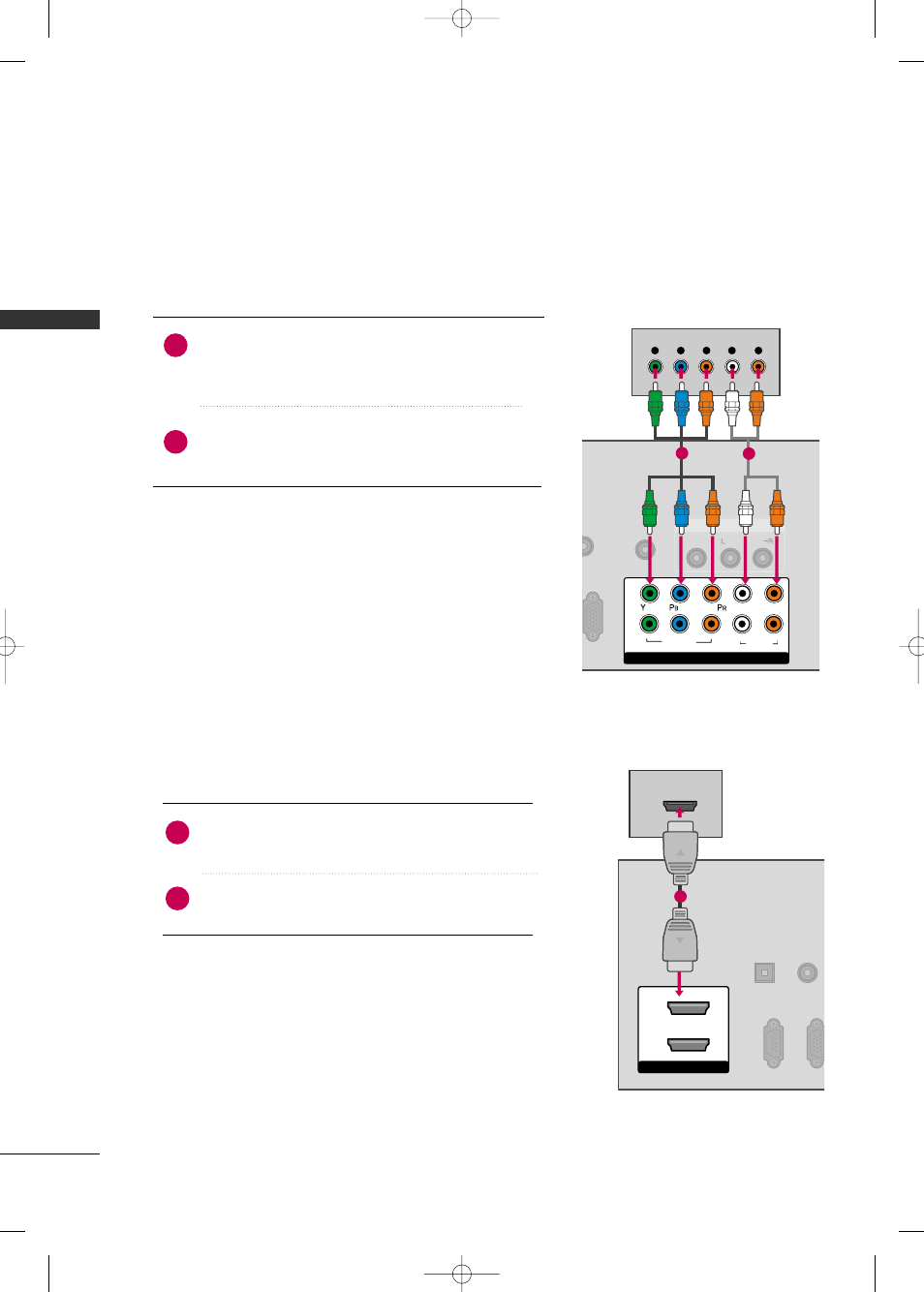

Component Connection
Connect the video outputs (Y, P B , P R
) of the DVD to the
C CO OM MP PO ON NE EN NT T IIN N V VIID DE EO O 1 1 jacks on the TV.
Match the jack colors (Y = green, P B = blue, and P R = red).
Connect the audio outputs of the DVD to the
C CO OM MP PO ON NE EN NT T IIN N A AU UD DIIO O 1 1 jacks on the TV.
1. How to connect
2. How to use
■ Turn on the DVD player, insert a DVD.
■ Select the C Co om mp po on ne en ntt1 1 input source on the TV using
the II N N P P U U T T button on the remote control.
■ If connected to C CO OM MP PO ON NE EN NT T IIN N 2 2 input, select the
C Co om mp po on ne en ntt2 2 input source on the TV.
■ Refer to the DVD player's manual for operating instructions.
2
1
HDMI Connection
Connect the HDMI output of the DVD to the
H
HD DM MII//D DV VII IIN N 1 1, 2 2 or 3 3 jack on the TV.
No separate audio connection is necessary.
HDMI supports both audio and video.
1. How to connect
2. How to use
■ Select the H HD DM MII1 1 , 2 2 or 3 3 input source on the TV using
the II N N P P U U T T button on the remote control.
■ Refer to the DVD player's manual for operating instructions.
2
1
A
IO IN
B/DVI) REMOTE
CONTROL IN
AUDIO VIDEO /MONO
AV IN 1
COMPONENT IN
1
2
VIDEO AUDIO
L R
Y L R P B P R
HDMI/DVI IN
2
1
HDMI-DTV OUTPUT
RGB IN(PC) RS-232C IN
(CONTROL
& SER
VICE)
OPTICAL
DIGITAL
AUDIO OUT
AUDIO
(RGB/DVI
1 2
1
