Component connection

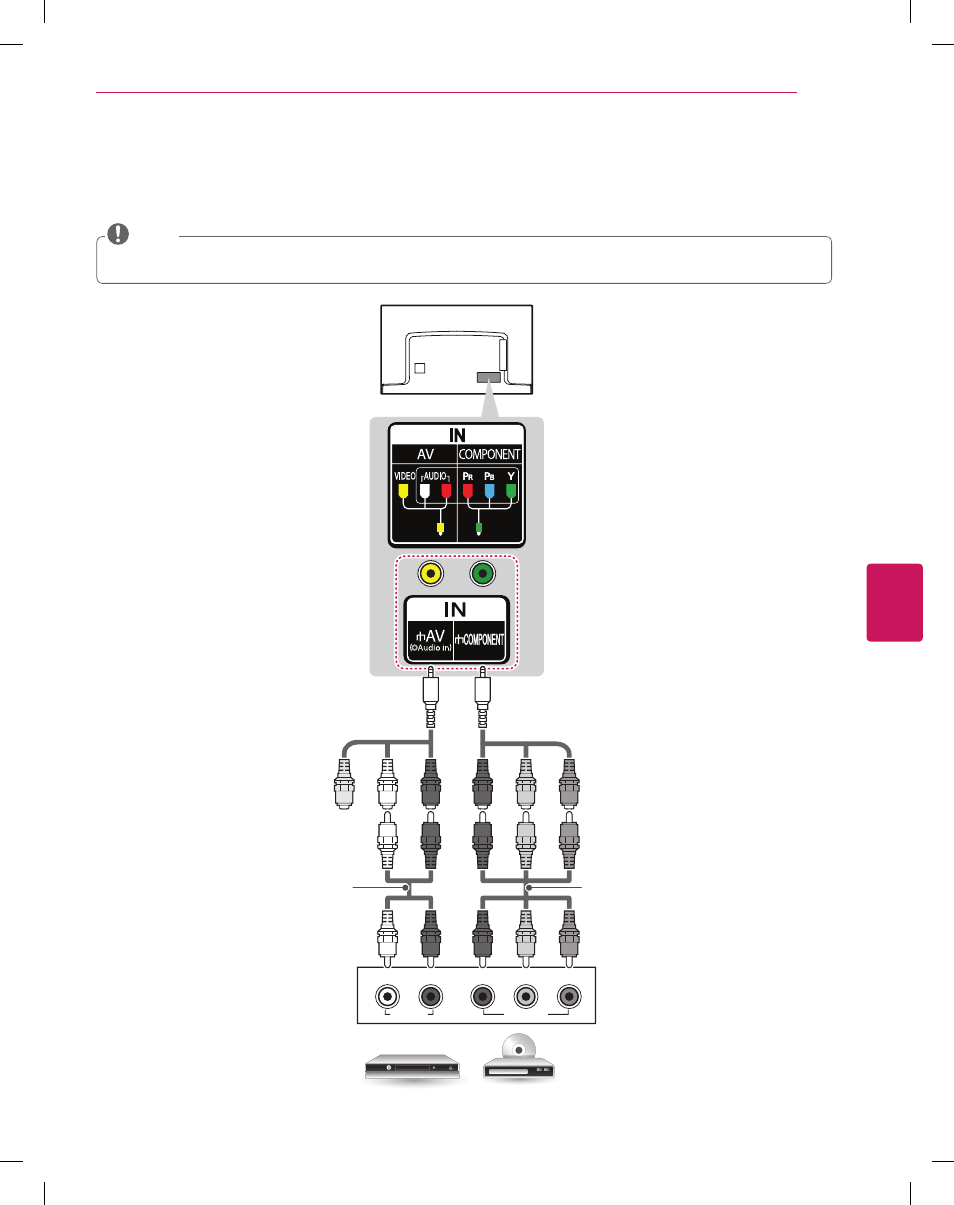

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component
cable as shown in the following illustration.
y y If cables are installed incorrectly, it could cause the image to display in black and white or with distorted color.
y y Check to ensure the cables are matched with the corresponding color connection.
NOTE
VIDEO AUDIO
L R Y P R P B
(*Not Provided)
YELLOW
YELL
O
W
WHITE
RED RED
BL
UE
GREEN
WHITE
RED RED
BL
UE
GREEN
WHITE
RED RED
BL
UE
GREEN
(Use the composite video cable provided.)
DVD / Blu-Ray / HD Cable Box
GREEN
(Use the component video cable provided.)
(*Not Provided)
