1) Choose an appropriate mounting location underneath a cabinet or shelf. Close proximity to an electrical outlet
and a TV antenna or cable connection will facilitate a neat, easy installation. Do not mount the VE-500A above
a range or oven. Be sure that the location chosen will provide adequate access to the electrical connectors on
the rear of the unit before continuing.
2) If the location chosen has bottom edge molding it may be necessary to use the mounting spacers provided to
effectively lower the VE-500A’s rotating screen below the molding. Measure the distance between the bottom
of the molding and the bottom of the cabinet. A maximum measurement of 1.5” can be accommodated without
using spacers. For larger moldings choose a combination of spacers which will reduce the mounting depth to
1.5” or less.
3) Measure the thickness of the bottom of the cabinet or shelf and the spacers chosen. Select the shortest
screw length which will pass through the countersunk washer, kitchen cabinet and spacers with between 1/4”
and 1 1/2” inches to spare
4) Cut out the template supplied and tape it in place onto the cabinet surface to be drilled. Center punch the four
holes indicated on the template and remove the template.
5) Carefully drill four 1/4” holes at the locations marked above. Place the screws chosen through the countersunk
washers and then through the holes from the top down.
6) Screw the appropriate spacers on to the screws first, then position the VE-500A and screw it in place using its
threaded holes.
7) Plug the AC Power adapter into a nearby electrical outlet and into the receptacle marked DC 12v input at the
rear of the VE-500A
8) Connect your TV antenna or cable system to the antenna connector on the rear of the VE-500A.
9) Route the wires safely away from heat and moisture sources and secure them in place using the self adhesive
wire mounting clip provided.
PICTURE VOLUME CHANNEL P0WER
5" TFT LCD TV
OPEN
TM AUDIO OX
AV/TV SENSOR AUTO PRO

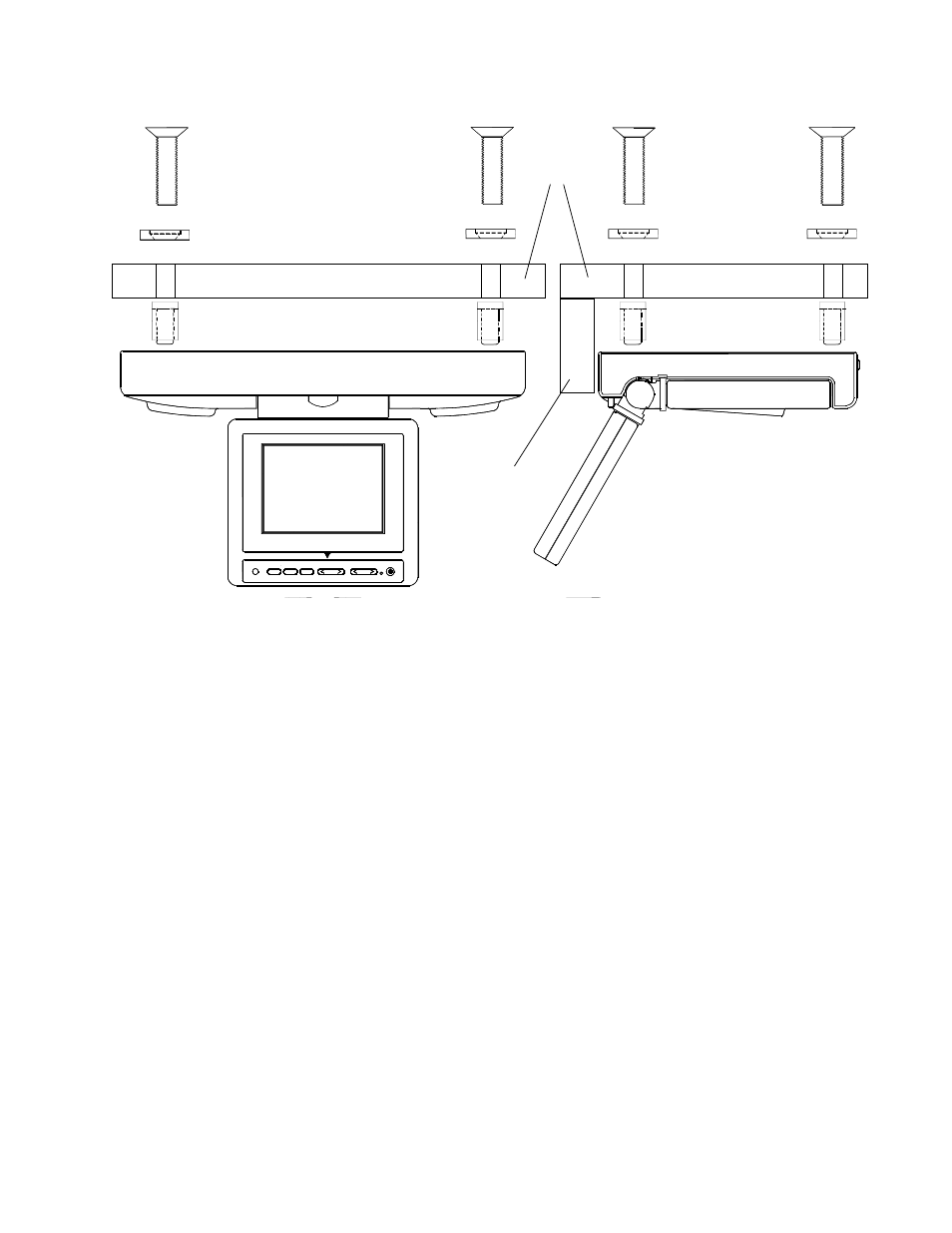

UNDER CABINET INSTALLATION
Cabinet or
Shelf
Bottom
Edge
Molding
