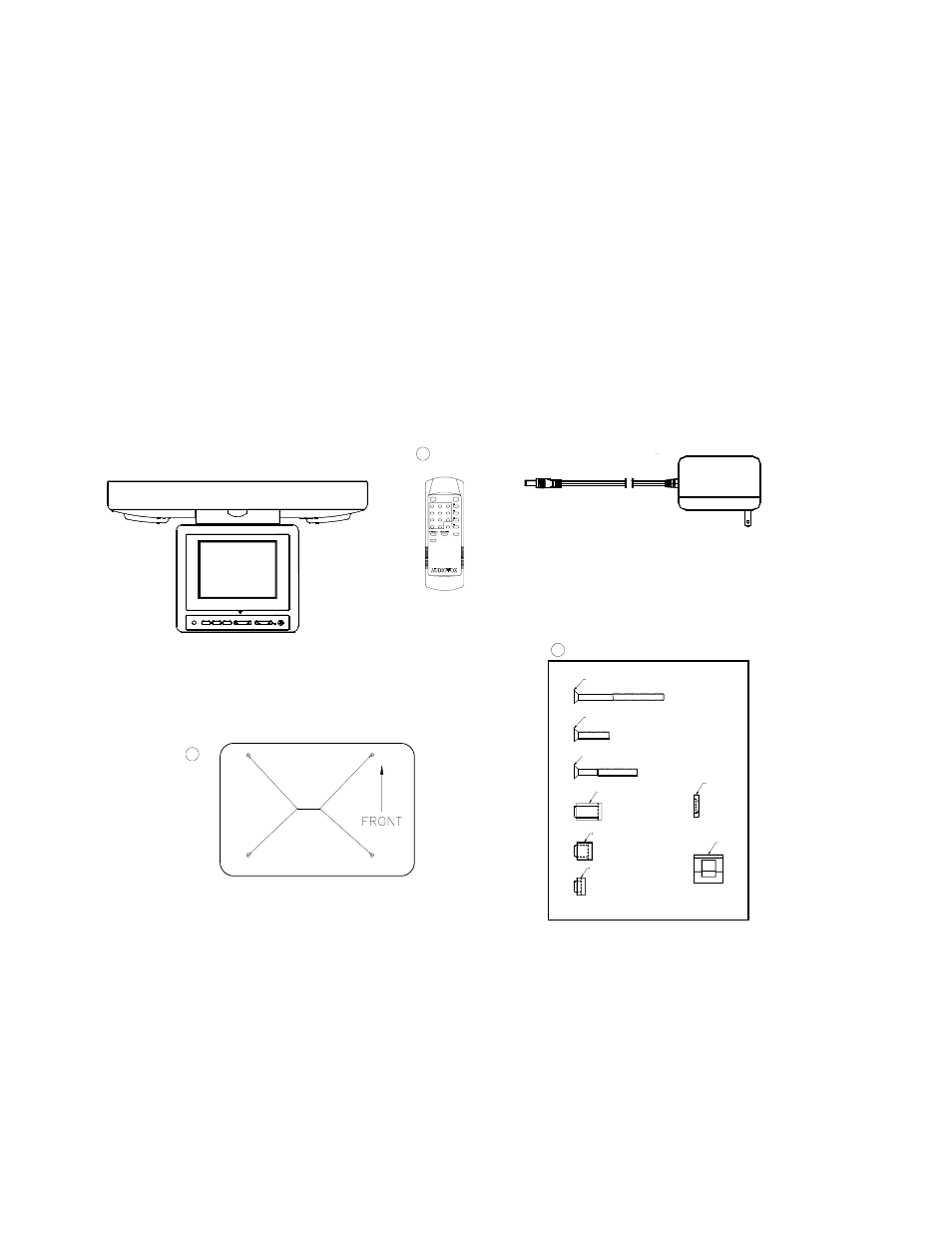

INCLUDED IN THIS KIT
1 VE500A 5-Inch Television (P/N 136D2179) (1)
2 Remote Control (P/N 136B2180) (1)
3 AC/DC Power Adapter [email protected] (P/N 1541096) (1)
4 Mounting template (1)
5 Hardware Bag (P/N 1502177) (1)
A) 10 - 32 x 2 1/2 Mounting screws (P/N 1001896) (4)
B) 10 - 32 x 3/4 Mounting screws (P/N 1001897)
(4)
C) 10 - 32 x 1 3/4 Mounting screws (P/N 1001898) (4)
D) 3/4” Spacer (P/N 1023316)
(4)
E) 1/2” Spacer (P/N 1023317) (4)
F) 5/16” Spacer (P/N 1023318) (4)
G) Countersunk washer (P/N 1023319) (4)
H) Self Adhesive Wire mounting clip (P/N 1023320) (2)
TOOLS REQUIRED
Philips head screwdriver
Centerpunch
1/4” Drill bit
Electric Drill
Adhesive Tape
