APPENDIX
110
APPENDIX
Press the M ME EN NU U button and then use D D or E E button
to select the O OP PT TIIO ON N menu.
Press the G G button and then use D D or E E button to
select S Se ett IID D.
Press the G G button and then use D D or E E button to
adjust S Se ett IID D to choose the desired TV ID number.
The adjustment range of Set ID is 1~99.
Press E EX XIIT T button to return to TV viewing or press
M ME EN NU U button to return to the previous menu.
Use this function to specify a TV ID number.
Refer to ‘Real Data Mapping 1’. p p..1 11 12 2
Set ID
Communication Parameters
■ Baud rate : 9600 bps (UART)
■ Data length : 8 bits
■ Parity : None
■ Stop bit : 1 bit
■ Communication code : ASCII code
■ Use a crossed (reverse) cable.

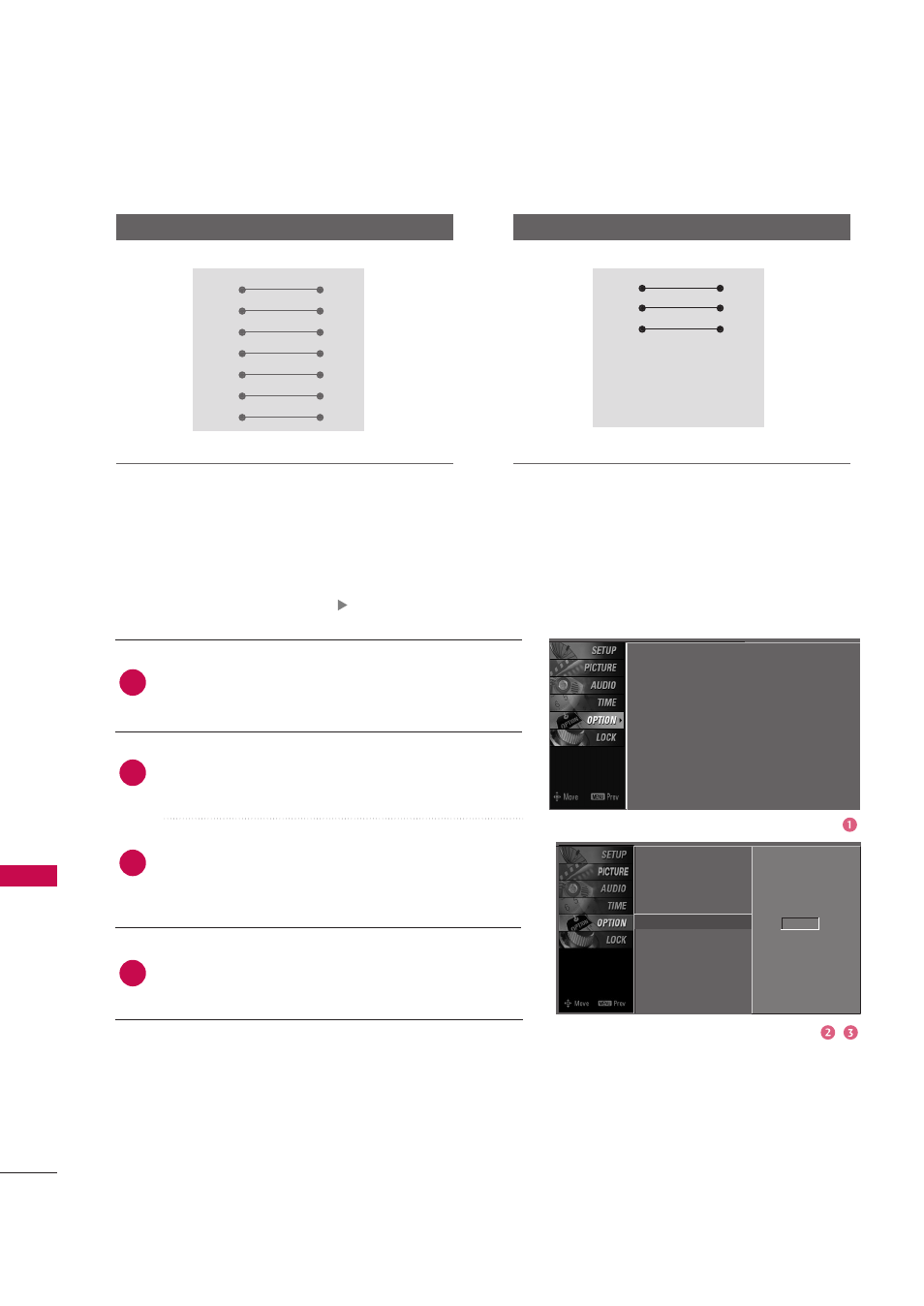

RS-232C Configurations
7-Wire Configurations (Standard RS-232C cable)
PC PDP
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS
D-Sub 9 D-Sub 9
3-Wire Configurations(Not standard)
PC PDP
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS
D-Sub 9 D-Sub 9
2
3
4
1
Subtitle : Off
Input Label
SIMPLINK : Off
Key Lock : Off
Set ID : 1
ISM Method
Low Power
Front Display
Factory Reset
Model Info
Subtitle
Input Label
SIMPLINK
Key Lock
Set ID G
ISM Method
Low Power
Front Display
Factory Reset
Model Info
