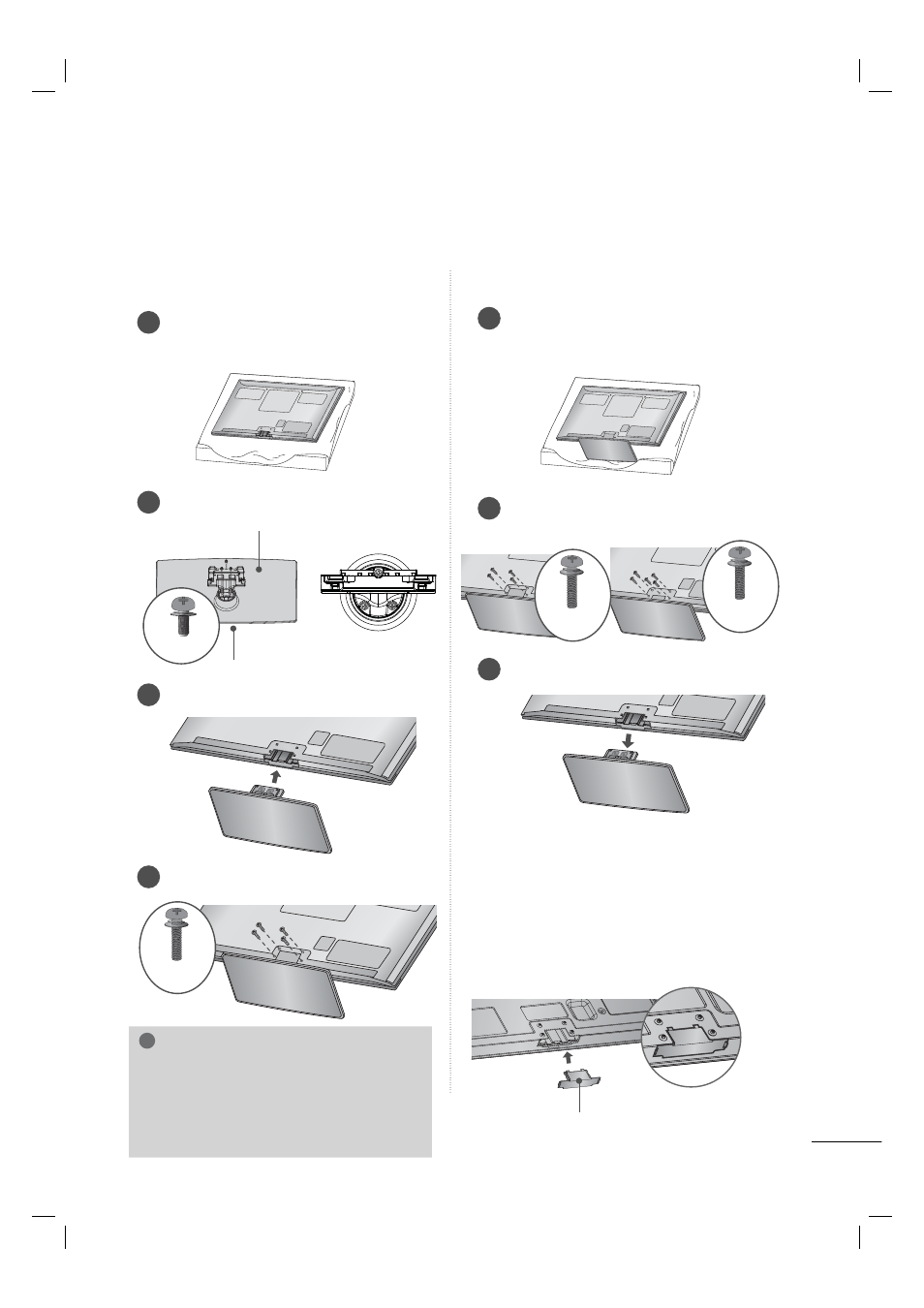

STAND INSTRUCTIONS

(For 50/60PK750)

Image shown may differ from your TV.

!

NOTE

When assembling the desk type stand,
make sure the screws are fully tightened (If
not tightened fully, the TV can tilt forward
after the product installation). Do not over
tighten.

1

Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.

2

Assemble the parts of the STAND BODY
with the STAND BASE of the TV.

INSTALLATION

(For 50PK750)

PROTECTION COVER

After removing the stand, install the included
PROTECTION COVER over the hole for the
stand.

Press the PROTECTION COVER into the TV until
you hear it click.

When installing the wall mounting bracket, use
the PROTECTION COVER.

1

Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.

2

Remove the screws that hold the stand on.

3

Detach the stand from TV.

DETACHMENT

STAND BASE

STAND BODY

M5 x 14

3

Assemble the TV as shown.

4

Install the 4 screws into the holes shown.

M4 x 28

50PK750

60PK750

M4 x 30

M4 x 28

PROTECTION COVER

Fix a guide to the outside.
