INSTALLATION DETACHMENT
ꔛ Image shown may differ from your TV.
! NOTE
► When assembling the desk type stand, make sure the screws are fully tightened (If not tightened
fully, the TV can tilt forward after the product installation). Do not over tighten.
1
Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
2
Loosen the bolt underneath the stand base
and straighten the insert so that the stand
body will sit straight. Assemble the parts of
the STAND BODY with the STAND BASE of
the TV. At this time, tighten the screws that
hold the STAND BODY on.
3 Assemble the TV as shown.
4 Assemble the part of the STAND REAR
COVER with the TV.
5
Install the 4 screws into the holes shown.
1
Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
2 Remove the screws that hold the stand on.
3 Detach the STAND REAR COVER from TV.
4 Detach the stand from TV.

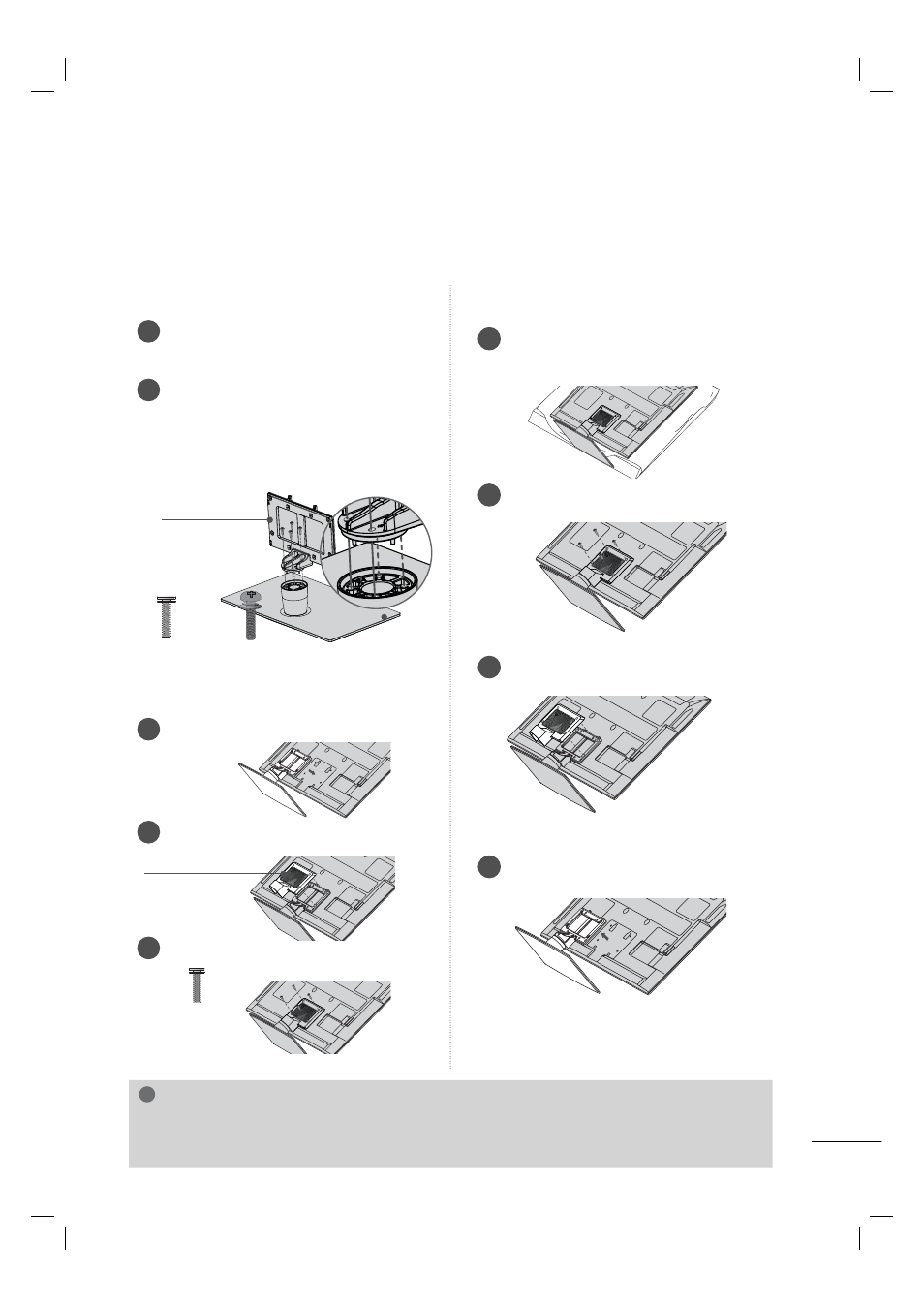

STAND INSTRUCTIONS
(For 42/47LE5350, 32/42/47/55LE5400, 42/47/55LE5500, 42/47/55LE7500, 47/55LE8500,
42/47/55LX6500)
STAND BASE
STAND BODY
STAND REAR
COVER
M4 x 20
(47/55LE8500)
M4 x 16
(Other models)
M4 x 24
(55LE5400/5500/7500,
55LX6500, 42LE5350)
M4 x 20
(47/55LE8500)
M4 x 16
(Other models)
M4 x 26
(47LE5350)
