EXTERNAL
EQ
UIPMENT
SETUP
26
PC SETUP
EXTERNAL EQUIPMENT SETUP

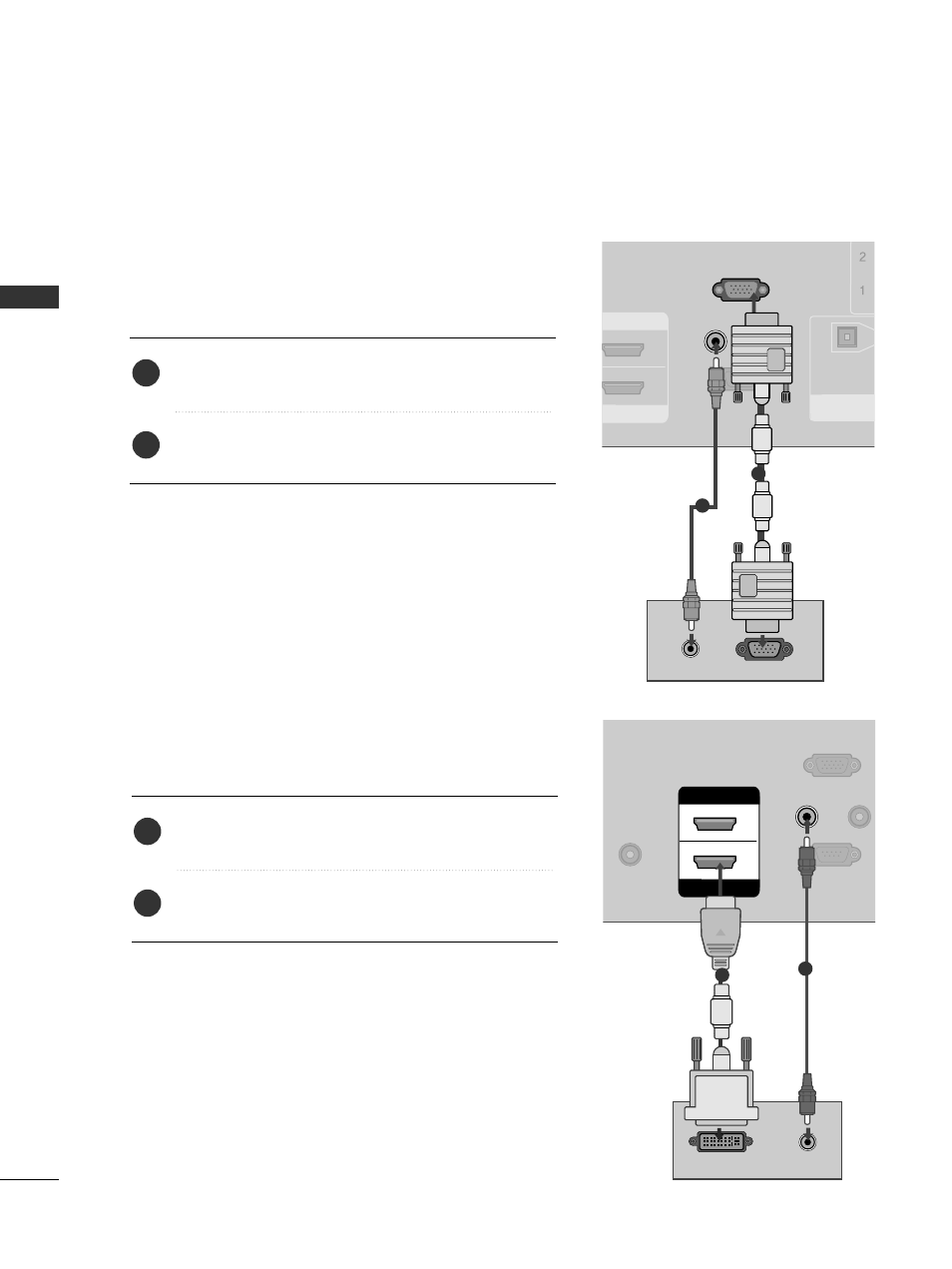

When connecting HDMI to DVI cable
Connect the DVI output of the PC to the H HD DM MII//D DV VII
IIN N 1 1 jack on the set.
Connect the PC audio output to the A AU UD DIIO O IIN N
((RRG GB B//D DV VII)) jack on the set.
1. How to connect
2. How to use
■ Turn on the PC and the TV.
■ Select H HD DM MII1 1//D DV VII input source by using the IIN NPPU UT T
button on the remote control.
2
1
This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.
When connecting D-sub 15pin cable
Connect the RGB output of the PC to the R RG GB B IIN N
((PP C C)) jack on the set.
Connect the PC audio output to the A AU UD DIIO O IIN N
((RRG GB B//D DV VII)) jack on the set.
1. How to connect
2. How to use
■ Turn on the PC and the TV.
■ Select R RG GB B--PPC C input source by using the IIN NPPU UT T button
on the remote control.
2
1
REMOTE
CONTROL
RS-232C IN
(CONTROL & SERVICE
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
DVI-PC OUTPUT AUDIO
ANTENNA/
CABLE IN
HDMI IN
HDMI/DVI IN
1
2
1
2
RGB OUTPUT AUDIO
REMOTE
CONTROL IN
RS-232C IN
(CONTROL & SERVICE)
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
DIGITAL AUDIO
OUT
OPTICAL
HDMI IN
HDMI/DVI IN
1
2
1
2
