EXTERNAL
EQ
UIPMENT
SETUP
20
EXTERNAL EQUIPMENT SETUP
REMOTE
CONTROL IN
RS-232C IN
(CONTROL & SERVICE)
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
DIGITAL AUDIO
OUT
OPTICAL
SERVICE
COMPONENT IN
A
V
OUT
A
V
IN 1
VIDEO AUDIO
MONO ( )
S-VIDEO
ANTENNA/
CABLE IN
HDMI IN
HDMI/DVI IN
1
2
L R DVI-DTV OUTPUT
VIDEO AUDIO

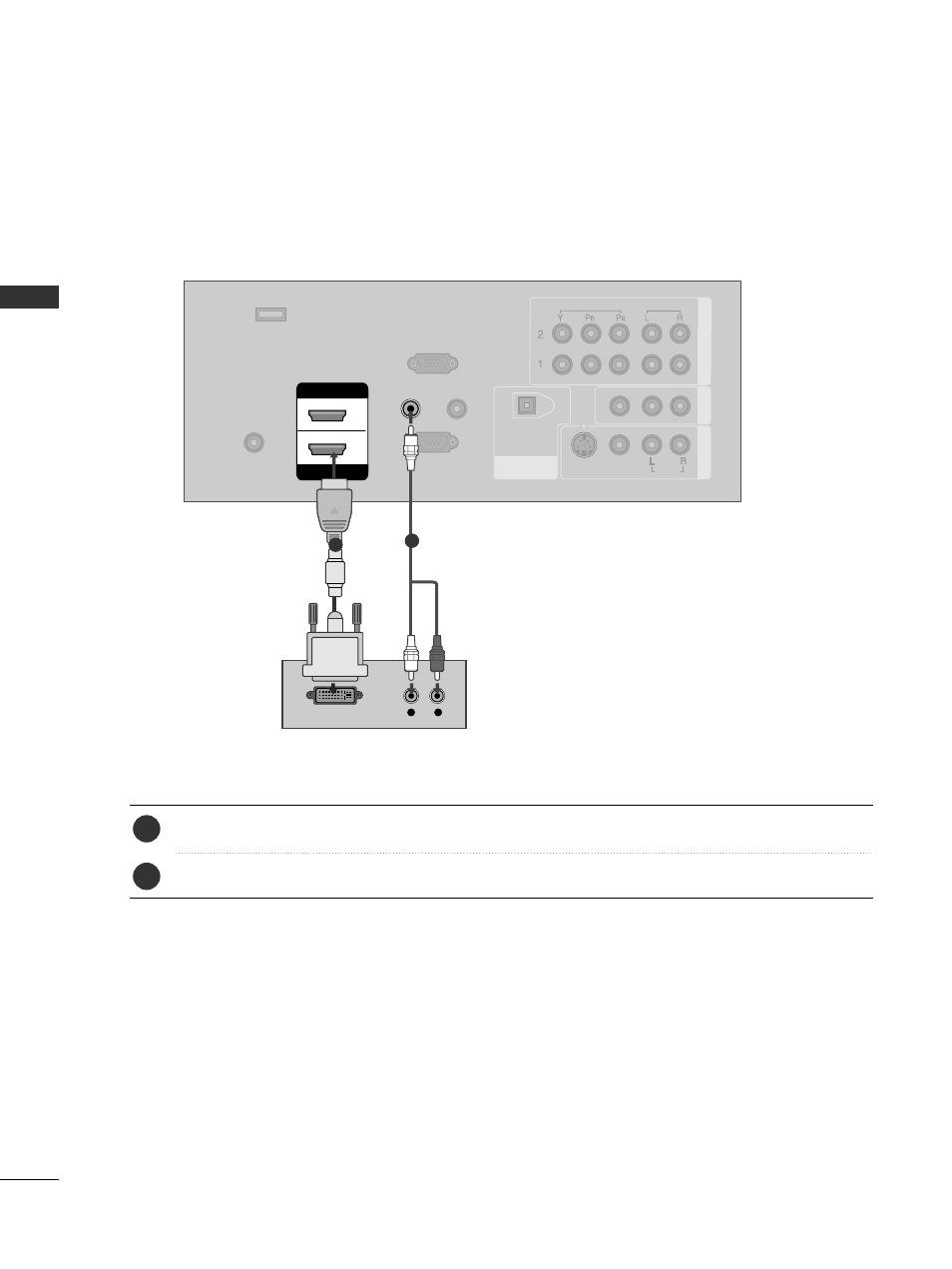

Connect the DVI output of the digital set-top box to the H HD DM MII//D DV VII IIN N 1 1 jack on the set.
Connect the audio output of the digital set-top box to the A AU UD DIIO O IIN N ((R RG GB B//D DV VII)) jack on the set.
1. How to connect
■ Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.)
■ Select H HD DM MII1 1//D DV VII input source by using the IIN NPPU UT T button on the remote control.
2. How to use
2
1
1
2
When connecting HDMI to DVI cable
