AIMB-766 User Manual
100

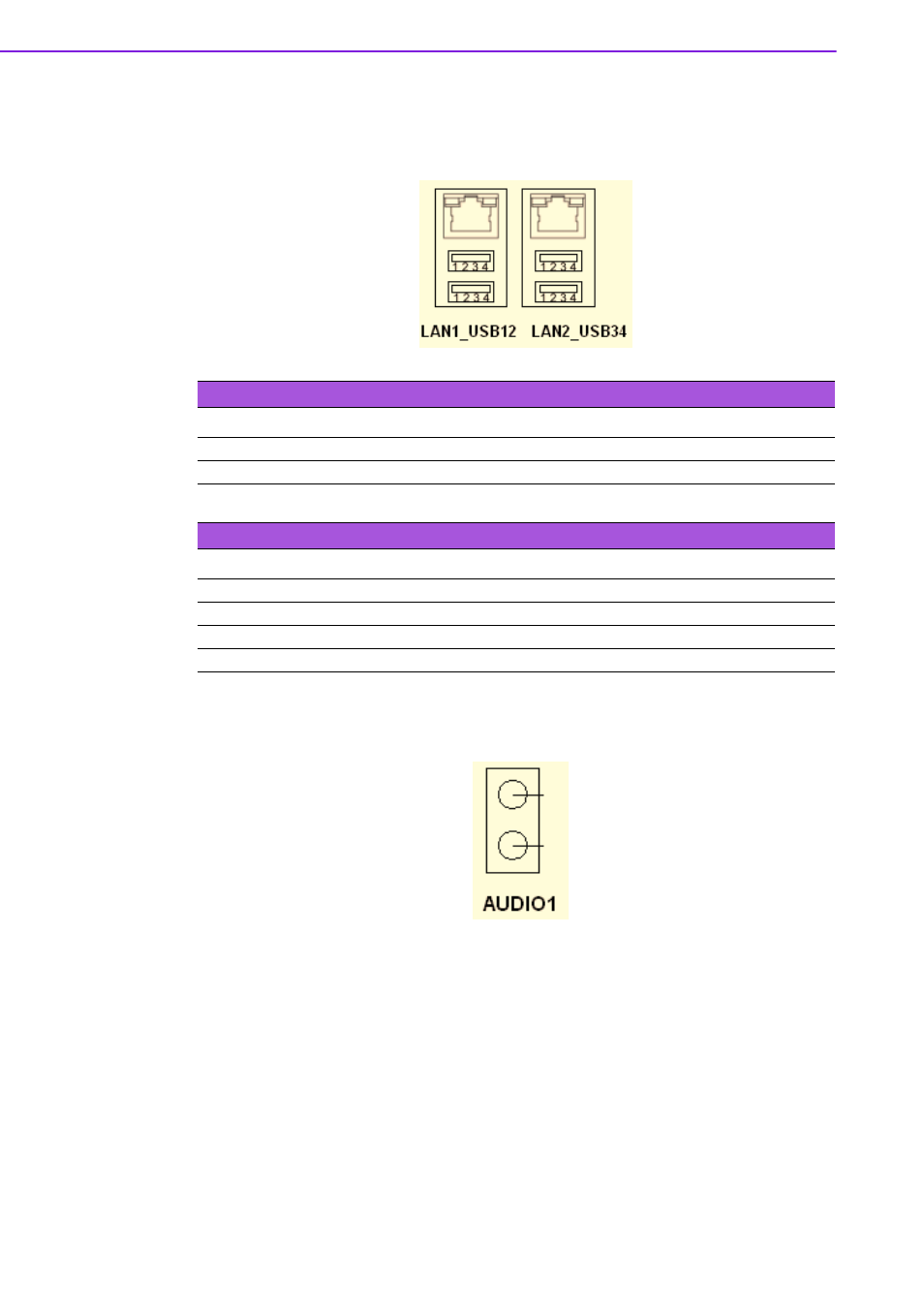

B.18
USB/LAN ports (LAN1_USB12 and
LAN2_USB34)
B.19
Line Out, Mic IN Connector (AUDIO1)
Table B.18: USB Port
Pin
Signal
Pin
Signal
1
VCC_DUAL
3
Data0+
2
Data0-
4
GND
Table B.19: Giga LAN 10/100/1000 Base-T RJ-45 port
Pin
Signal
Pin
Signal
1
MID0+
5
MID2+
2
MID0-
6
MID2+
3
MID1+
7
MID3+
4
MID1-
8
MID3+
Line Out
MIC In
