DIP SWITCH SETTINGS FOR SOUND ACTIVE MODE
(MASTER/SLAVE)
1 2 4 3 5 6
Master - Head 1
7 8 9
1 2 4 3 5 6
HEAD 3
7 8 9
1 2 4 3 5 6
HEAD 4
7 8 9
1 2 4 3 5 6
HEAD 2
7 8 9
10 ON
ON
ON
ON
10
10
10
1 2 4 3 5 6
HEAD 6
7 8 9
1 2 4 3 5 6
HEAD 8
7 8 9
1 2 4 3 5 6
HEAD 9
7 8 9
1 2 4 3 5 6
HEAD 7
7 8 9
10 ON
ON
ON
ON
10
10
10
1 2 4 3 5 6
HEAD 11
7 8 9
1 2 4 3 5 6
HEAD 14
7 8 9
1 2 4 3 5 6
HEAD 12
7 8 9
10 ON
ON
ON
10
1 2 4 3 5 6
HEAD 13
7 8 9
ON
10
10
1 2 4 3 5 6
HEAD 5
7 8 9
ON
10 1 2 4 3 5 6
HEAD 10
7 8 9
ON
10 1 2 4 3 5 6
HEAD 15
7 8 9
ON
10
1 2 4 3 5 6
HEAD 16
7 8 9
ON
10

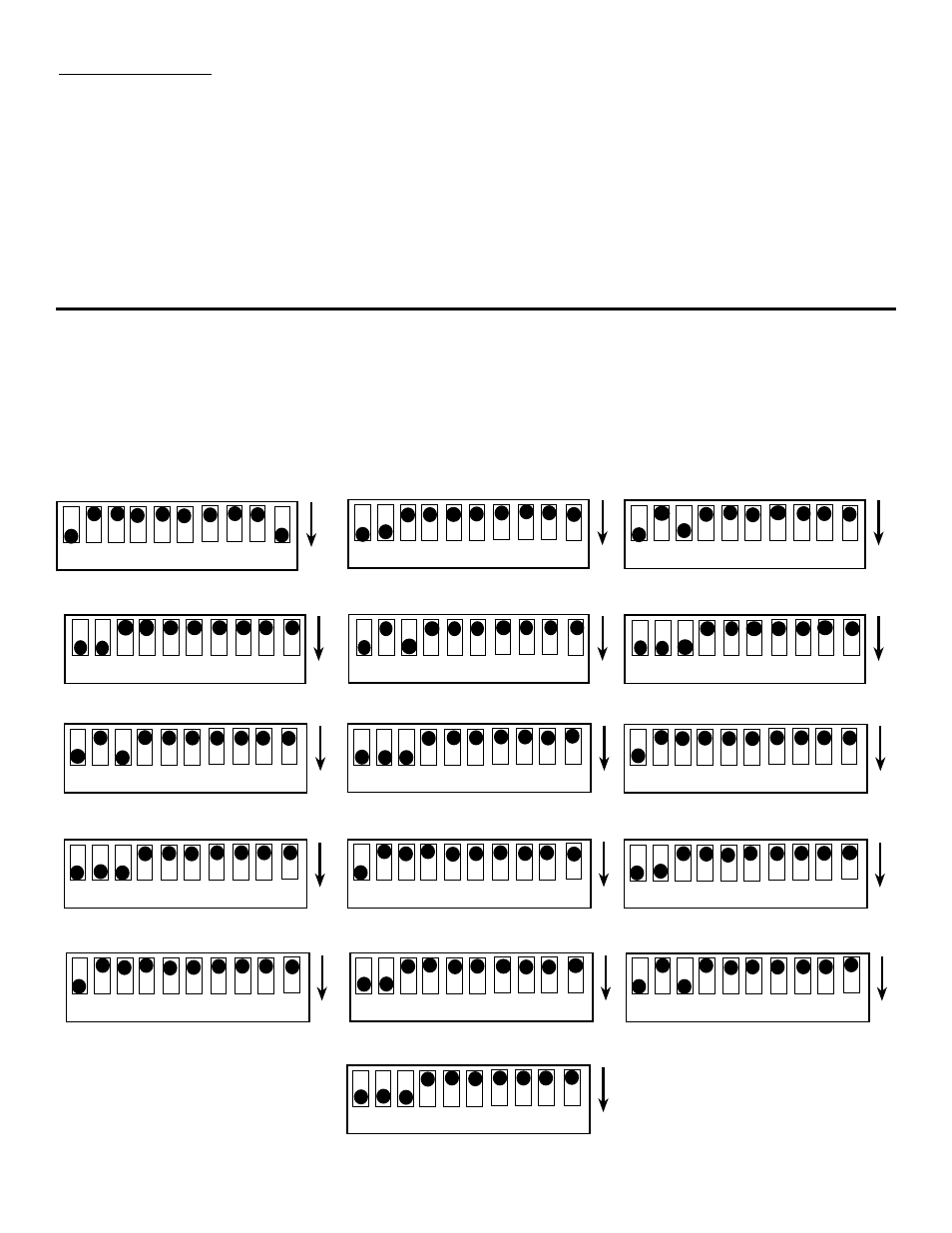

The following chart details the OYNX II™ dip switch setting for up to 16 fixtures in a Master/ Slave mode.
© American DJ ® Los Angeles, CA 90058 USA - www.americandj.com - Onyx II™ page 3
Fixture Cleaning:
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried
out periodically to optimize light output.
1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.
2. Use a brush to wipe down the fan grill and remove as much built up as possible.
3. Clean the external optics with glass cleaner and a soft cloth every 20 days.
4. Clean the internal optics with glass cleaner and a soft cloth every 30-60 days.
5. Always be sure to dry all parts completely before plugging the unit in.
Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog
residue, dust, dew).
