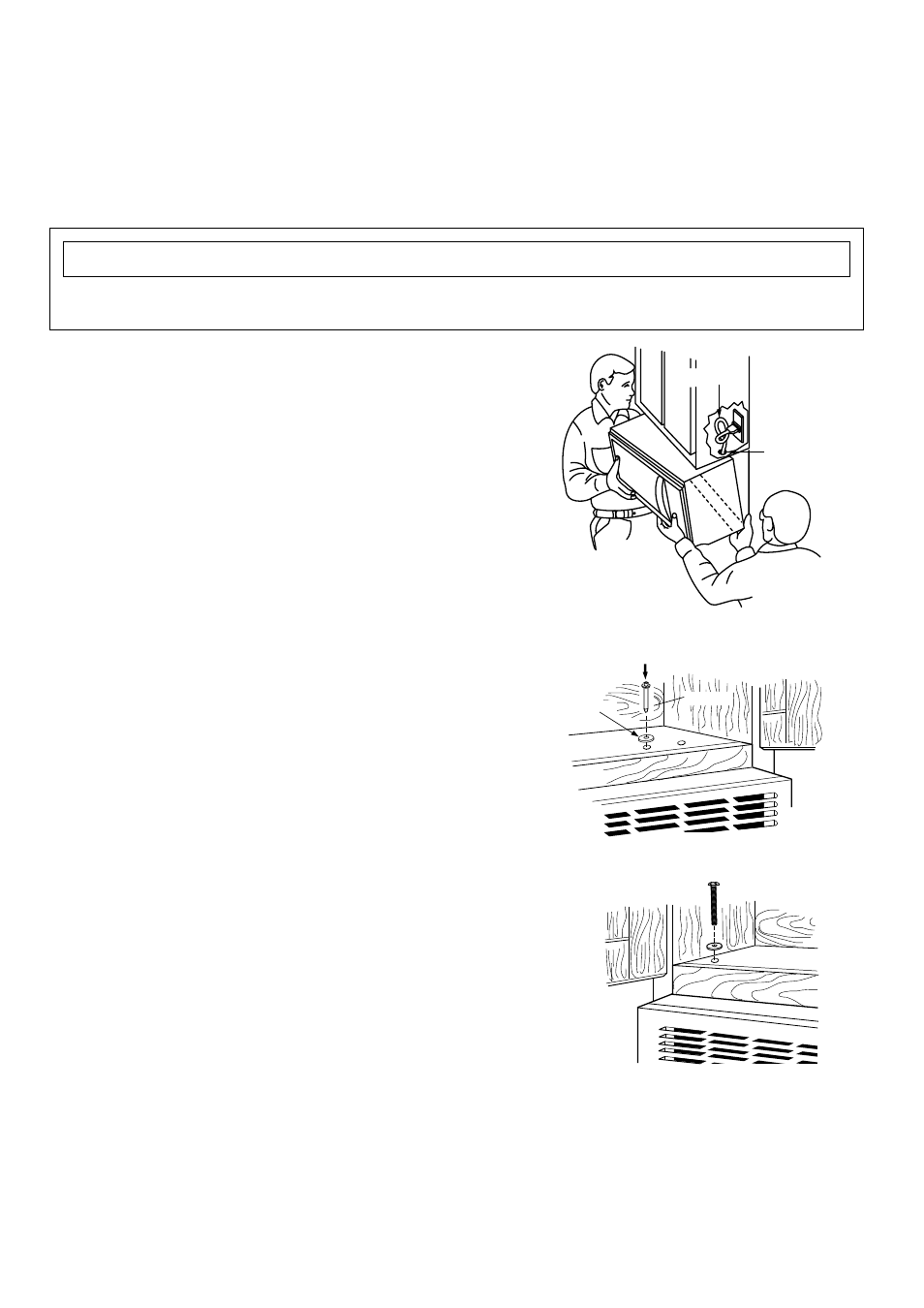

STEP 6: ATTACH THE OVEN TO THE WALL
1. Carefully lift microwave oven and hang it on support tabs
(See Figure 26) at the bottom of the mounting plate.
Reaching through upper cabinet, thread power supply cord
through the power supply cord hole in the bottom of the
upper cabinet. See Figure 30.
2. Rotate the microwave oven upward so the top of oven is
against the bottom of the upper cabinet or cabinet frame.
3. Drop the lock pin and washer assembly into hole "N" (left
side hole) and push the pin down as far as it will go. See
Figure 31.
4. Place washers over two 1/4"x3" bolts. Then insert a bolt
down through each hole in the upper cabinet bottom.
Tighten the bolts until the gap between the upper cabinet
and microwave oven is closed. See Figure 32.
5. Remove lock pin and washer.
If wall-vented or room-vented installation is used, go to No.
8 on the next page.
INSTALLATION
20
To avoid risk of personal injury or property damage, you will need two people to install this microwave oven.
w w CAUTION
Figure 30
Figure 32
washer
Figure 31
lock pin
power cord
power cord
hole
