STEP 3: PREPARE THE VENTING BLOWER
ROOM-VENTED (Recirculating)
INSTALLATION:

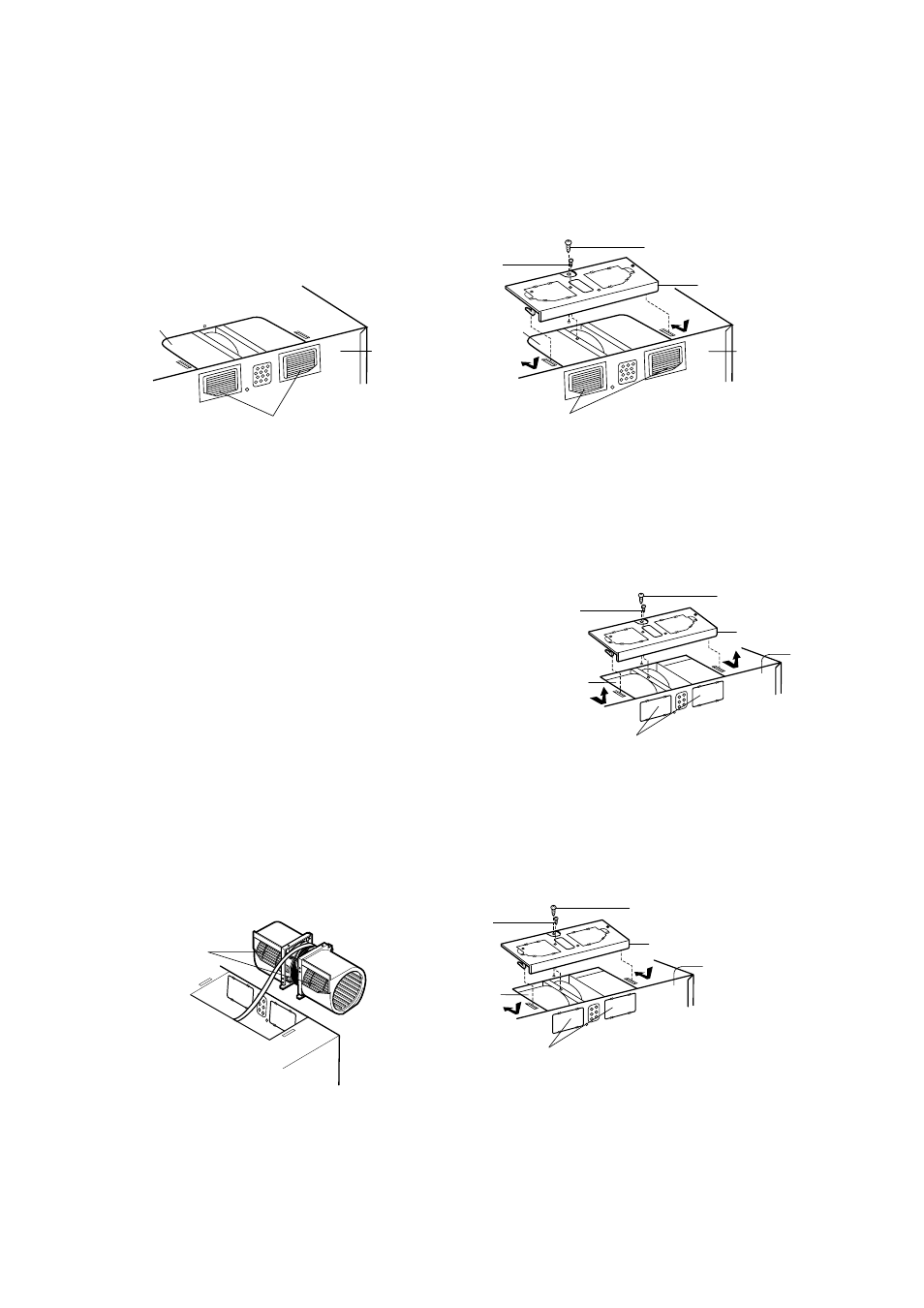

1. Remove one blower unit mounting screw and two blower
plate screws. Remove the blower plate from cabinet. See
Figure 17.
2. Carefully lift the blower unit out of the microwave oven.
3. Rotate blower unit so that the exhaust ports face the front of
the cabinet. See Figure 18.
4. Place blower unit back into microwave oven.
5. Reattach blower plate to microwave oven. Attach with the
one blower unit mounting screw and then the two blower
plate mounting screws.
See Figure 19.
