10Base-T Station to Hub Connection
To connect a 10Base-T network station to the FriendlyNet Hub,
follow the instructions and diagram below.
▲ Important: Use a straight-through network
cable. Make sure the length of the cable between
the station and hub does NOT exceed 100 meters
(including all patch cables and cross-connect
wires).
Network cable segments can be connected to, or
disconnected from, the hub while the power is
on.
1
Connect one end of the network cable to an RJ-
45 port on the FriendlyNet Hub.
❶
2
Connect the other end of the cable to the net-
work station’s Ethernet adapter.
❷

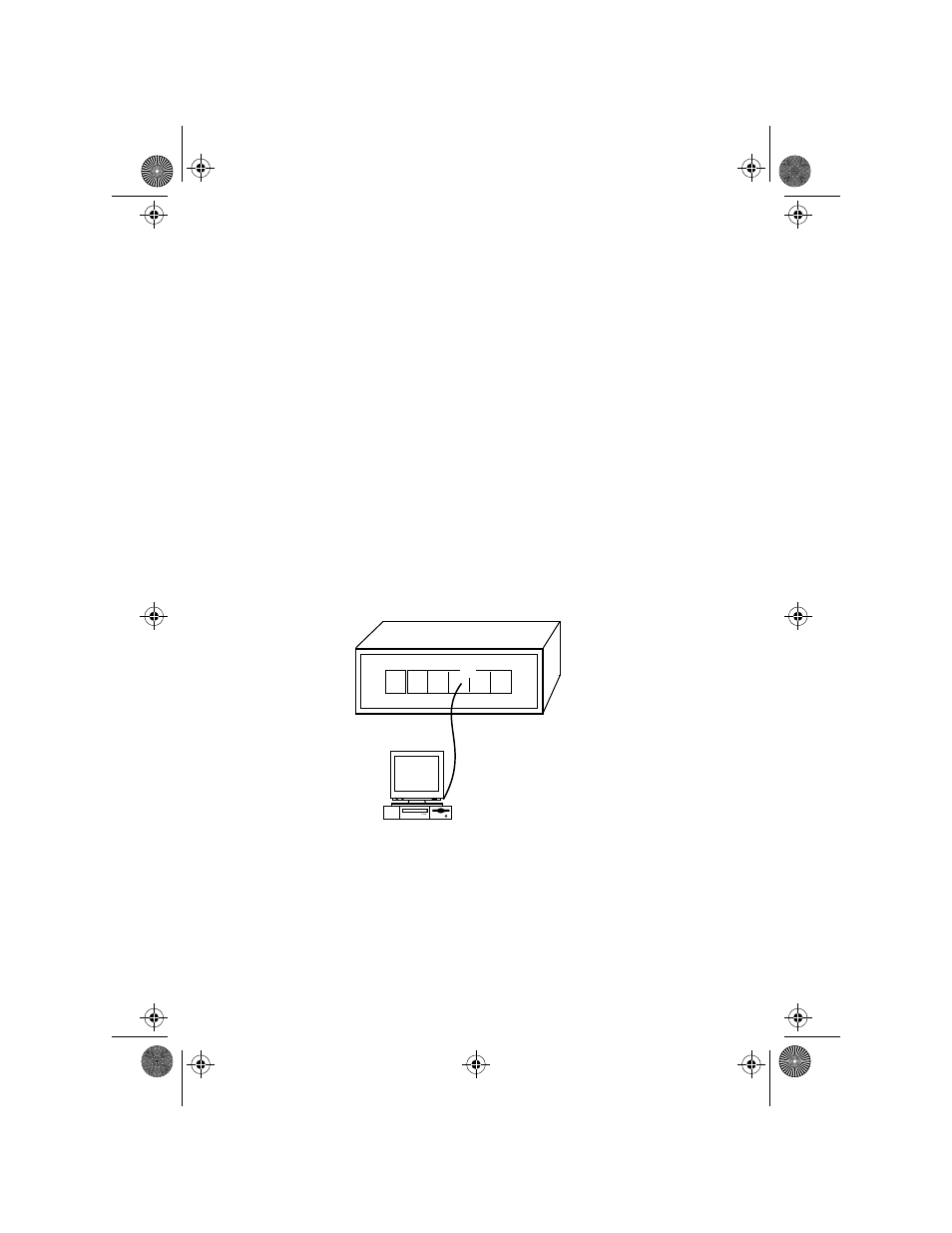

Figure 2-1 Connecting a 10Base-T station to the FriendlyNet
Ethernet Hub
straight-through cable
❷
Uplink 1 2 3 4 5
❶
