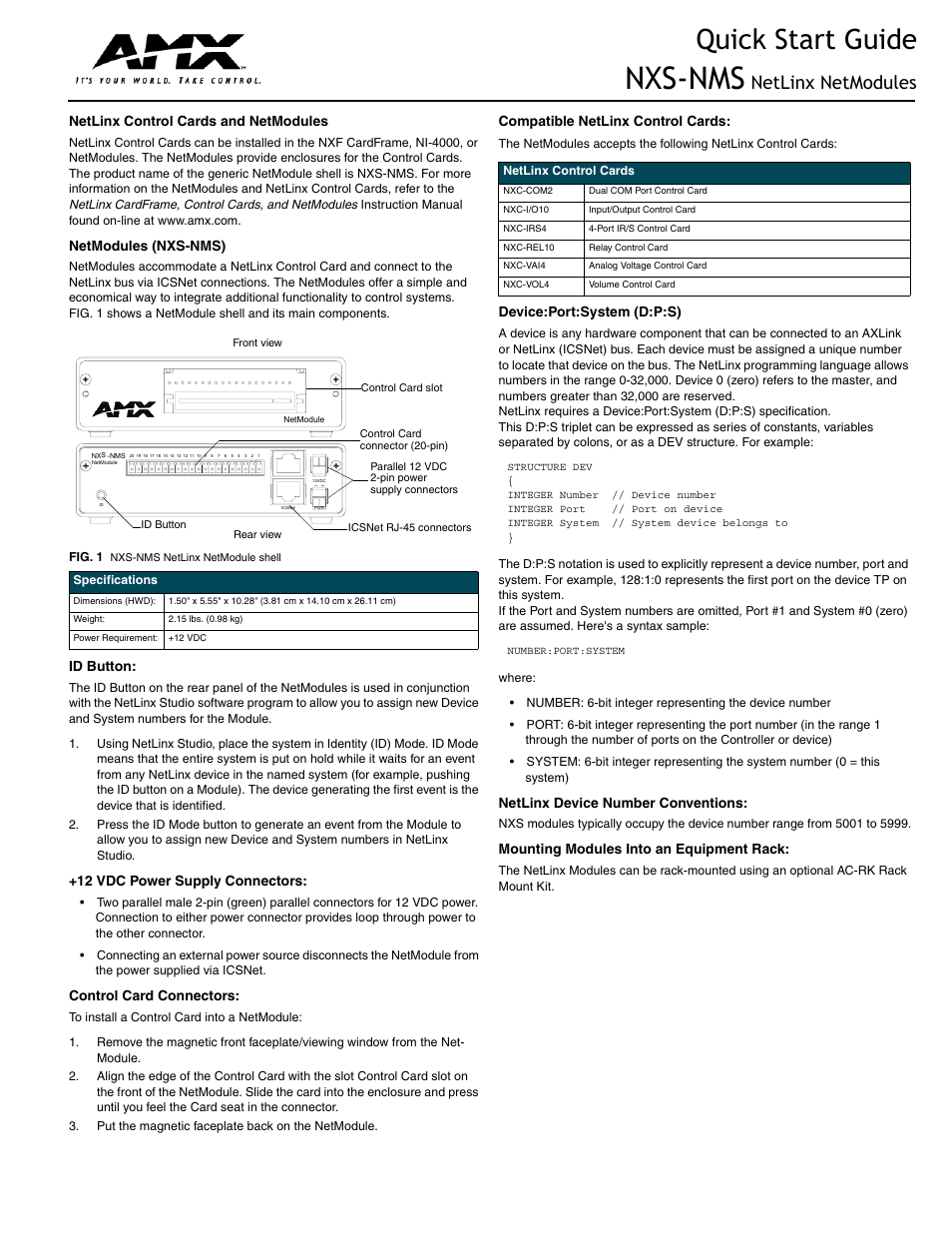

NXS-NMS NetLinx NetModules Quick Start Guide
NetLinx Control Cards and NetModules
NetModules (NXS-NMS)
FIG. 1 NXS-NMS NetLinx NetModule shell
ID Button:
1. Using NetLinx Studio, place the system in Identity (ID) Mode. ID Mode means that the entire sy...
2. Press the ID Mode button to generate an event from the Module to allow you to assign new Devic...
+12 VDC Power Supply Connectors:
Control Card Connectors:
1. Remove the magnetic front faceplate/viewing window from the NetModule.
2. Align the edge of the Control Card with the slot Control Card slot on the front of the NetModu...
3. Put the magnetic faceplate back on the NetModule.
Compatible NetLinx Control Cards:
Device:Port:System (D:P:S)
NetLinx Device Number Conventions:
Mounting Modules Into an Equipment Rack:
