CE-300 User Manual
24

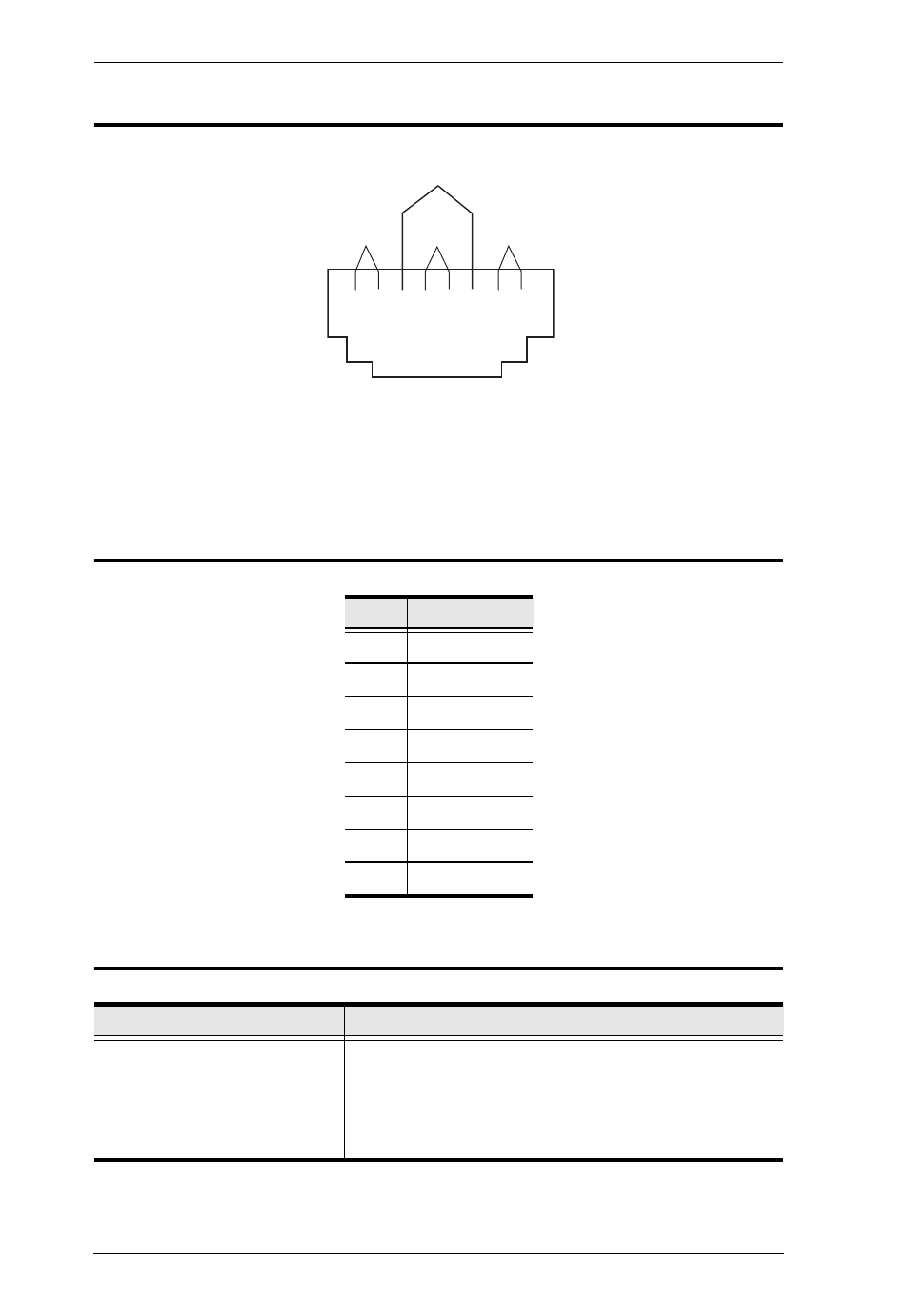

TP Wiring Diagram
TP Pin Assignments
Troubleshooting
Pin Assignment
1 /V OUT B
2 V OUT B
3 /V OUT G
4 /V OUT R
5 V OUT R
6 V OUT G
7 /DO
8 DO
Problem Solution
There are ghost images on
the external monitor. The distance between the external console and the
CE-300 is too great. The maximum VGA cable
distance should not exceed 20 m and, in some cases,
may need to be shorter. Replace the VGA cable with
one of an appropriately short length.
JACK POSITIONS
PAIR 2 PAIR 1
PAIR 3
PAIR 4
T568B
AT&T 258A
1 2 3 4 5 6 7 8
W-O O W-G Bl W-Bl G W-Br Br
