#809 Operation & Care Manual • 4.
I N S T A L L A T I O N
Options and Accessories
Cutting Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .BA-2054

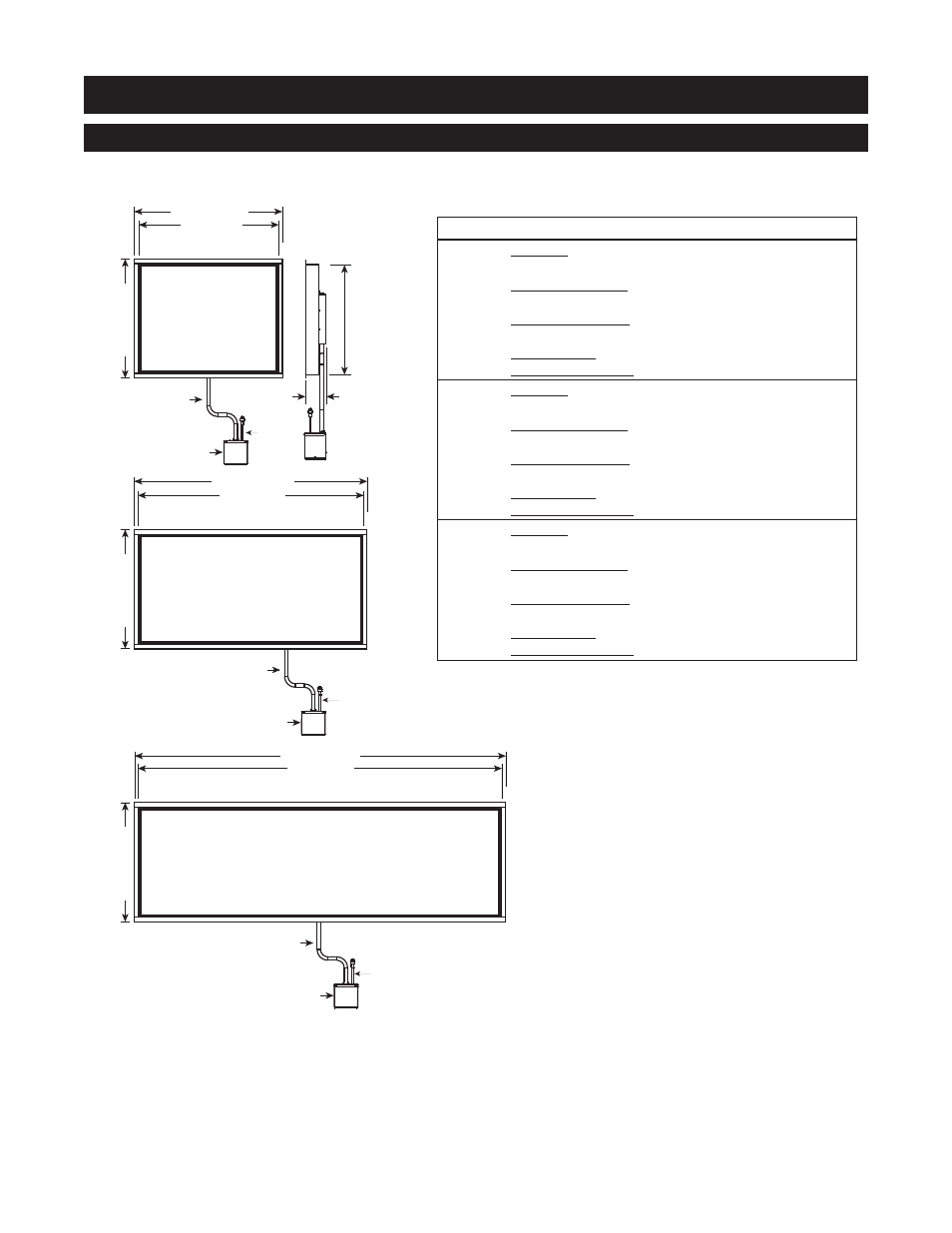

Exterior Dimensions
SITE INSTALLATION
29" (737mm)
30-5/8" (778mm)
2
4
-5
/8
"
(6
2
6
m
m
)
47" (1194mm)
48-5/8" (1235mm)
2
4
-5
/8
"
(6
2
6
m
m
)
71" (1803mm)
72-5/8" (1845mm)
2
4
-5
/8
"
(6
2
6
m
m
)
4-7/16"
(113mm)
2
3
"
(5
8
4
m
m
)
O
P
E
N
IN
G
R
E
Q
U
IR
E
D
Flexible
water-tight tether
30" (762mm)
Control
Flexible
water-tight tether
30" (762mm)
Control
Flexible
water-tight tether
30" (762mm)
Control
ELECTRICAL CONNECTION
60" (1524mm) cord
ELECTRICAL CONNECTION
60" (1524mm) cord
ELECTRICAL
CONNECTION
60" (1524mm)
cord
D I M E N S I O N S : L x W x H
HFM-30 EXTERIOR : 30-5/8" x 24-5/8" x 4-7/16"
(778mm x 626mm x 112mm)
SURFACE MATERIAL : 28-3/8" x 22-3/8" x 3/4"
(721mm x 569mm x 19mm)
OPENING REQUIRED
: 29" L x 23" W
(737mm x 584mm)
CONTROL BOX
4" L x 5" W
OPENING REQUIRED
: (102mm x 127mm)
HFM-48 EXTERIOR : 48-5/8" x 24-5/8" x 4-7/16"
(1235mm x 626mm x 112mm)
SURFACE MATERIAL : 46-3/8" x 22-3/8" x 3/4"
(1178mm x 569mm x 19mm)
OPENING REQUIRED
: 47" L x 23" W
(1194mm x 584mm)
CONTROL BOX
4" L x 5" W
OPENING REQUIRED
: (102mm x 127mm)
HFM-72 EXTERIOR : 72-5/8" x 24-5/8" x 4-7/16"
(1845mm x 626mm x 112mm)
SURFACE MATERIAL : 70-3/8" x 22-3/8" x 3/4"
(1788mm x 569mm x 19mm)
OPENING REQUIRED
: 71" L x 23" W
(1803mm x 584mm)
CONTROL BOX
4" L x 5" W
OPENING REQUIRED
: (102mm x 127mm)
