8 9
Specifications Installation
Built-in French Door Refrigeration Specifications
800 Series 30" Built-in Bottom Freezer 800 Series 36" Built-in French Door Bottom Freezer
Model Numbers B30BB830SS Stainless Steel B36BT830NS Stainless Steel
Appearance Full height door—true cabinet integration without exposed
venting grille Full height door—true cabinet integration without exposed
venting grille
Optiflex® hinge—opens out and away from cabinetry up to 115°
door opening angle Optiflex® hinge—opens out and away from cabinetry up to 115°
door opening angle
Frame kit for flush installation (25"-inch-deep cutouts) or
framed installation (24"-inch-deep cutouts), preassembled Frame kit for flush installation (25"-inch-deep cutouts) or
framed installation (24"-inch-deep cutouts), preassembled
Performance Dual refrigeration system with two compressors and two
evaporators for best humidity/temperature and no odor
transfer Dual refrigeration system with two compressors and two
evaporators for best humidity/temperature and no odor
transfer
Electronic Sensor Controls — keep temperatures consistent so
food stays fresh no matter where it is stored Electronic Sensor Controls — keep temperatures consistent so
food stays fresh no matter where it is stored
Full width meat drawer Full width meat drawer
Carbon air filter reduces odors and keeps air clean and fresh Carbon air filter reduces odors and keeps air clean and fresh
Humidity-controlled crispers Humidity-controlled crispers
Filtered ice-maker Filtered ice-maker
SuperCool™ — quickly balances temperatures between cool
items and newly placed goods SuperCool™ — quickly balances temperatures between cool
items and newly placed goods
SuperFreeze™ — quickly balances temperatures between frozen
items and newly placed goods SuperFreeze™ — quickly balances temperatures between frozen
items and newly placed goods
Convenience Pre-assembled with stainless steel panels and handles for
quick installation Pre-assembled with stainless steel panels and handles for
quick installation
All-LED sidewall and theater lighting All-LED sidewall and theater lighting
Efficiency ENERGY STAR® qualified ENERGY STAR® qualified
Sabbath mode Sabbath mode
Economy mode Economy mode
Capacity 16 cu ft 20 cu ft
Note: Dimensions are for planning only. For details, see installation manual, or
visit www.bosch-home.com/us. Specifications subject to change without notice.
For immediate installation dimensions by fax, call 1.925.284.3558. Use code
#8317 for a directory of Bosch products. Also available online at dexpress.com.

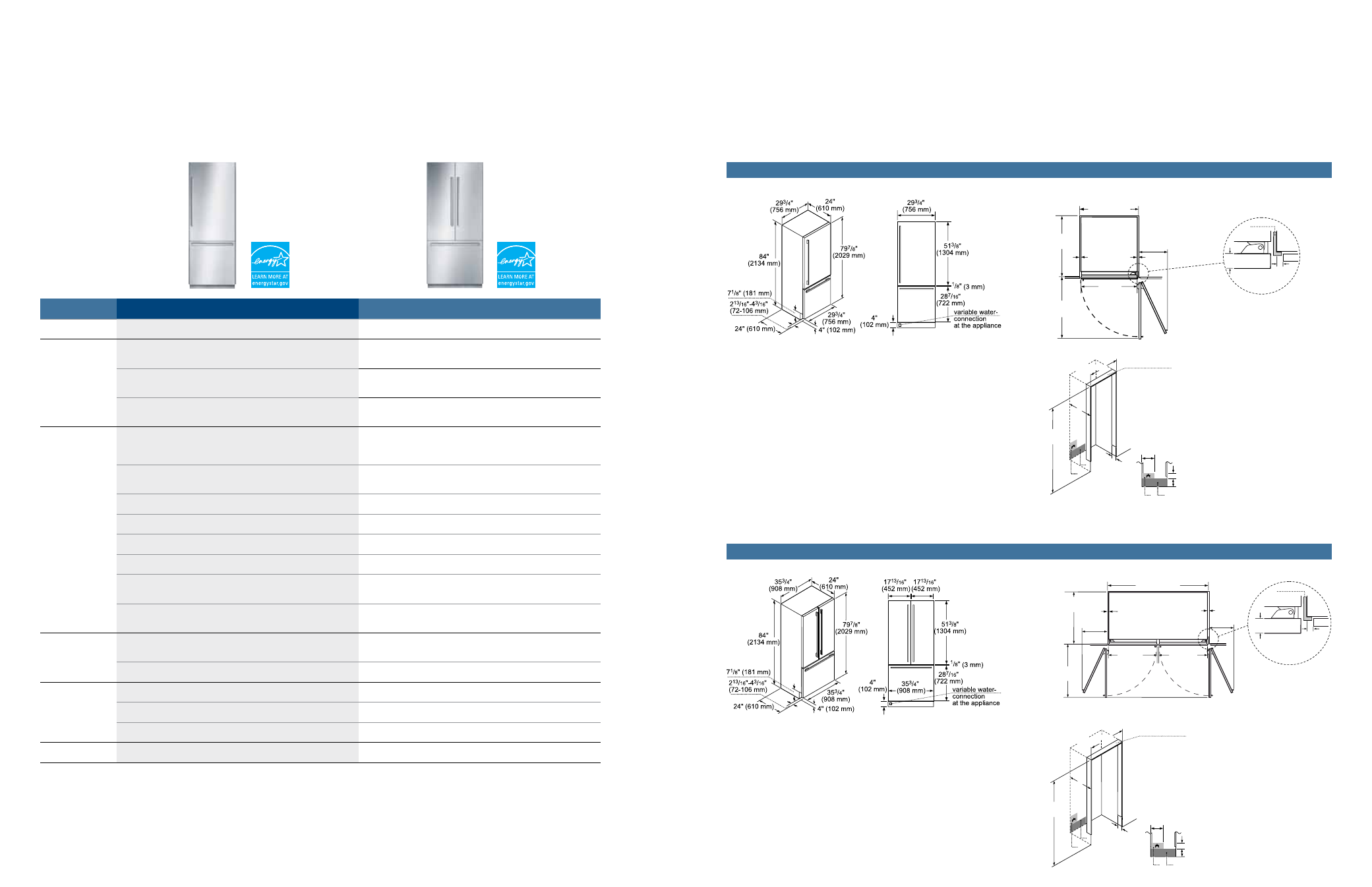

Refrigeration Dimensions and Installation
800 Series 30" Built-in Bottom Freezer
B30BB830SS
800 Series 36" Built-in French Door Bottom Freezer
B36BT830NS
A: Area for installation of power connection.
B: Area for running the water line. It is recommended that the
waterbox is placed adjacent to the installation cavity, so that it
can be accessed for service without uninstalling the appliance.
If this is not possible, place the recessed waterbox adjacent to
the water supply socket elevated at the heights as referenced
in areas A and B.
C: Niche depth depends on kitchen design.
min. 4"
(102 mm)
Furniture return
36" (914 mm)
84"
(2134 mm)
A
B
C
B A
4" (102 mm)
5 1 / 8 " (130 mm)
18"
(457 mm)
** door handle must be added to this dimension.
Frame
90°
115°
17 13 / 16 "
(452 mm)
17 13 / 16 "
(452 mm)
9 1 / 4 "**
(235 mm)
9 1 / 4 "**
(235 mm)
20 15 / 16 "
(530 mm)
36" (914 mm)
3 / 4 " (19 mm)
7 / 16 "
(11 mm)
1 / 8 "
(3 mm)
1 / 8 "
(3 mm)
24"
(610 mm)
90°
115°
Frame
** Door handle must be added
to this dimension
14 5 /
16 "**
(364 mm)
24"
(610 mm)
33"
(830 mm)
30" (762 mm)
29 3 /
4 "
(756 mm)
1 / 8 "
(3 mm)
1 / 8 "
(3 mm)
3 / 4 " (19 mm)
7 / 16 "
(11 mm)
A: Area for installation of power connection.
B: Area for running the water line. It is recommended that the
waterbox is placed adjacent to the installation cavity, so that it
can be accessed for service without uninstalling the appliance.
If this is not possible, place the recessed waterbox adjacent to
the water supply socket elevated at the heights as referenced
in areas A and B.
C: Niche depth depends on kitchen design.
Furniture return
min. 4"
(102 mm)
min. 4"
(102 mm)
min. 4"
(102 mm)
min. 4"
(102 mm)
min. 4"
(102 mm)
min. 4"
(102 mm)
min. 4"
(102 mm)
min. 4"
(102 mm)
min. 4"
(102 mm)
min. 4"
(102 mm)
min. 4"
(102 mm)
min. 4"
(102 mm)
30" (762 mm)
84"
(2134 mm)
A
B
C
B A
4" (102 mm)
5 1 / 8 " (130 mm)
15"
(381 mm)
