Electrolux ZCS2100 - Manual (Page 4)

6
5b
10b
6 7
8 9
4
10a
5a
3
1a
A
A
B
B
C
D
1b 2
English

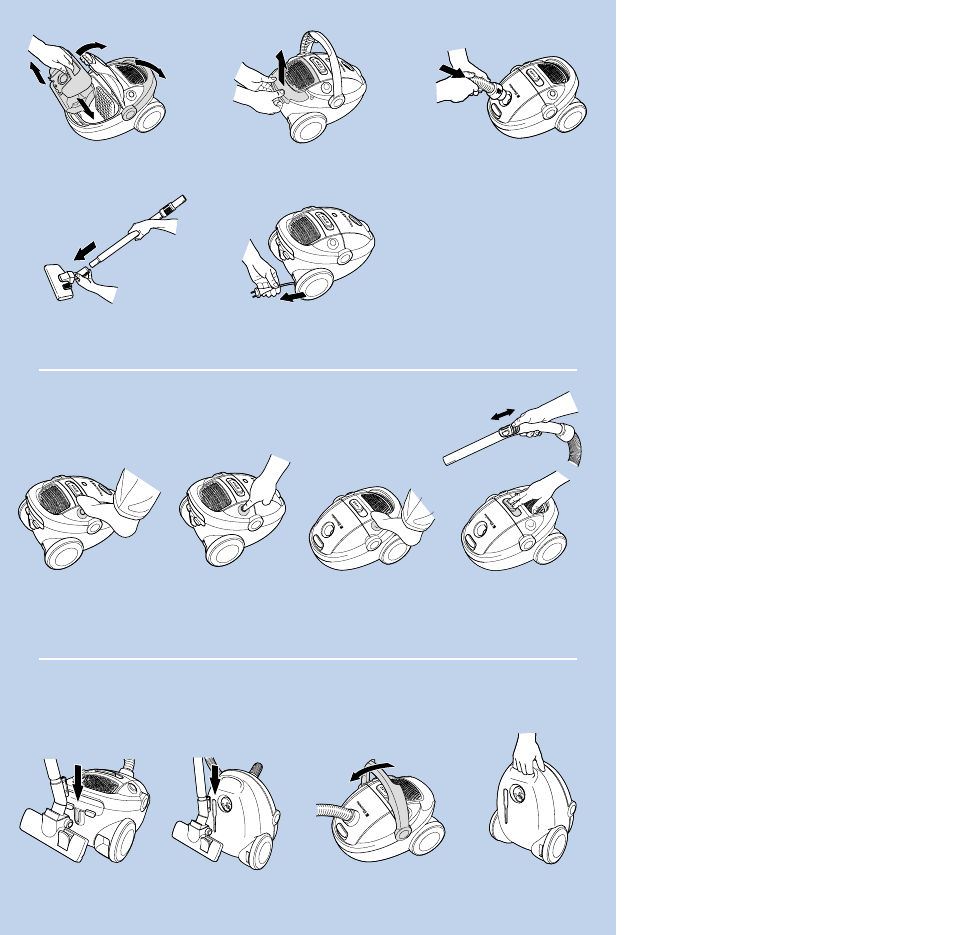

BEFORE STARTING
1 a Ensure that the machine’s carrying handle is folded down.
Then open the front cover on the machine and check that
the dust bag, s-bag™, and the motor filter are in place.
1 b Fold up the carrying handle until it clicks into place. Then
open the back lid on the machine and check that the
exhaust filter is in place.
2 Insert the hose until the catches click to engage (press the
catches to release the hose).
3 Attach the extension tubes or telescopic tube (certain
models only) to the hose handle and hard floor nozzle by
pushing and twisting together. (Twist and pull apart to dis-
mantle.)
4 Extend the electric cable and connect it to the mains. The
vacuum cleaner is fitted with a cable winder.
5 a Press the foot pedal to rewind the cable (take hold of the
plug to prevent it striking you).
5 b Press the small button on the pedal to activate
Autoreverse (on certain models only). The length of the
cable will now be continually adjusted to requirements.
Press the whole pedal to de-activate Autoreverse. The
cable is now fixed, as on a normal cable winder.
6 Press the On/Off button with the foot to start the vacuum
cleaner.
7 Adjust suction power using the suction control on the
vacuum cleaner or the suction control on the hose handle.
8 A practical parking position (and at the same time a back-
saving feature) when you pause during cleaning.
9 A parking position which makes it easy to carry and store
the vacuum cleaner.
10 a When you want to carry the vacuum cleaner, lift the carry-
ing handle until it clicks into place.
10 b You can also carry the vacuum cleaner using the handle
on the lower front edge of the machine.
