Door Magnets
Operating Format
Fail Safe
– Provides optimum safety.
If there is a power failure the door will be unlocked to allow exit, and can
be pushed open even if it is under pressure.
Microswitching
All ASSA Door Magnets are available with Hall Effect microswitches to monitor that the magnet is
active. To specify add x002 to the product reference.

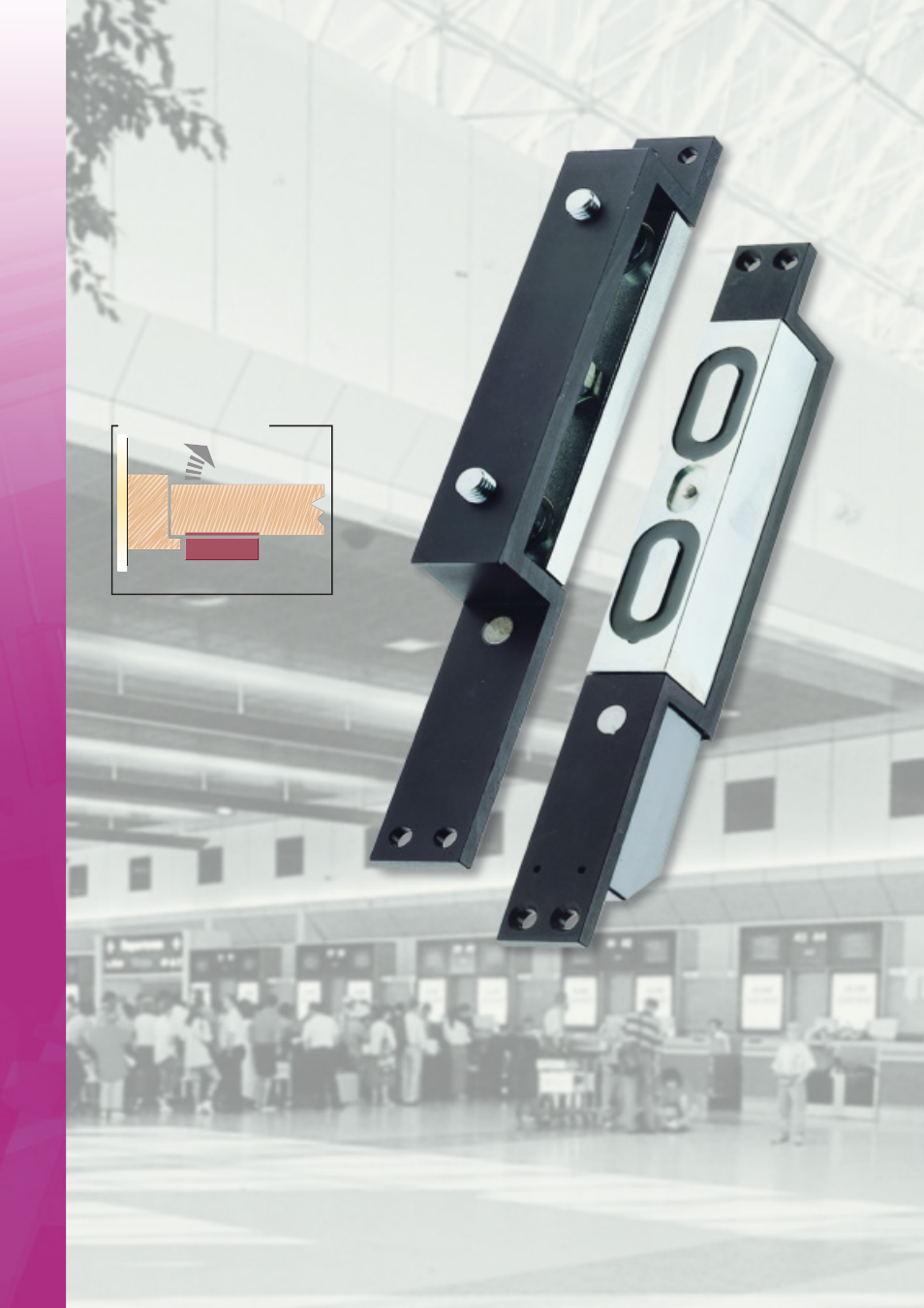

Door magnets secure the door using an electromagnet. When the
correct unlocking signal is received the magnet releases, allowing the
door to open.
The benefits of door magnets include:
The absence of any mechanical moving parts makes these
products extremely reliable and durable.
True fail safe operation: as soon as power is no longer being
applied to the magnet the door may be pushed open freely.
Dual voltage: can be changed between 12 V and 24 V DC
operation on site.
Access Contr
ol Electric Locking
On activation
* Magnet releases
*
