Cost effective internal security.
Access Contr
ol Security Systems

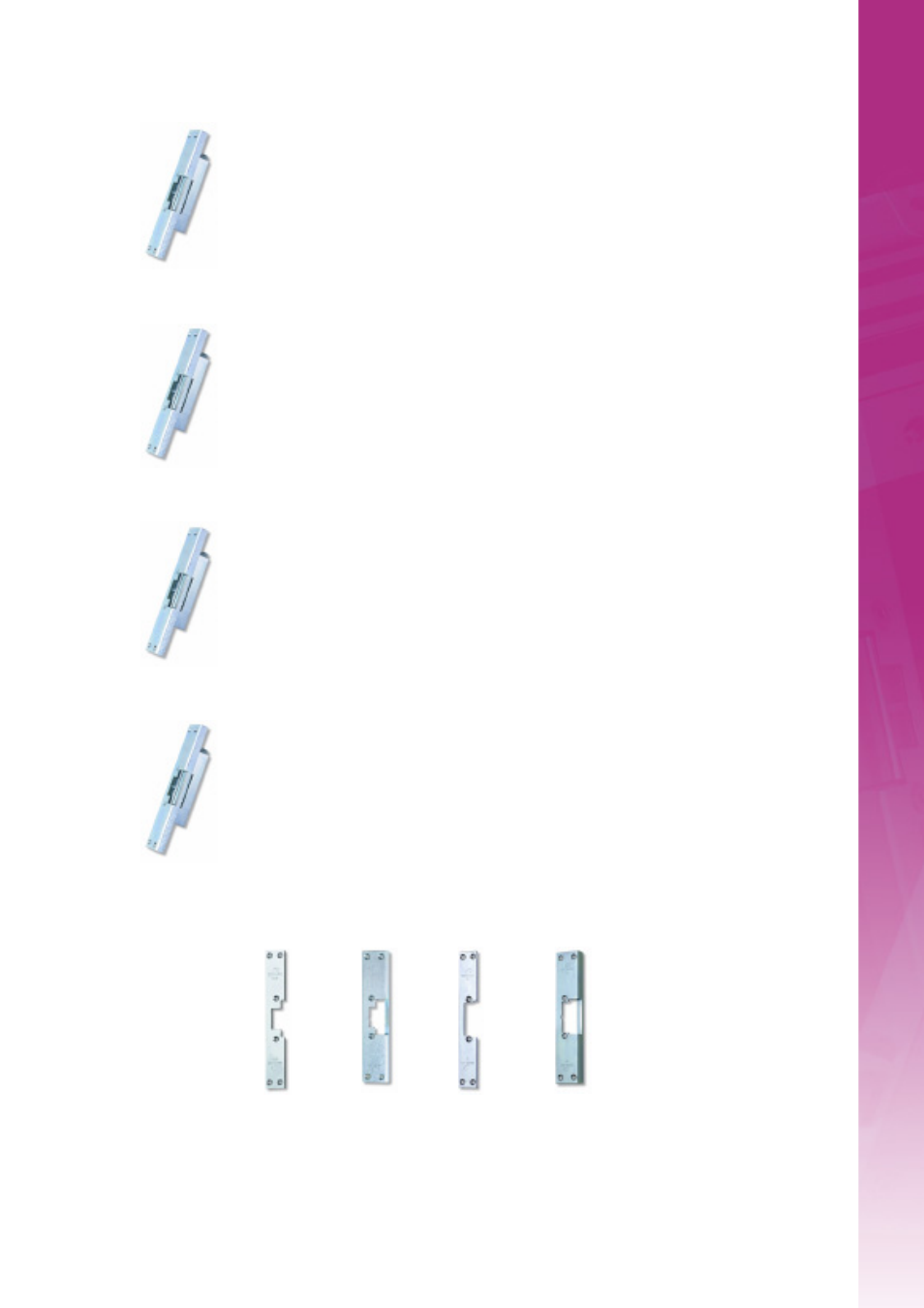

Medium Security Electric Strikes
505
for
metal/uPVC
frames.
510
for timber
frames.
5
for
metal/uPVC
frames.
Used with
non- ASSA locks
10
for timber
frames.
Used with
non- ASSA locks
14E – fail locked electric strike
Fail Locked electric strike suitable for use with nightlatches. Medium strength, resists 450 kg side
pressure. Tested to 1 million operations. Continuously rated, available in 12V and 24V DC
versions.
514E – fail locked electric strike with microswitch
Fail Locked electric strike suitable for use with nightlatches. Microswitch monitors latchbolt
engagement. Medium strength, resists 450 kg side pressure. Tested to 1 million operations.
Continuously rated, available in 12V and 24V DC versions.
Faceplates
114A – fail unlocked electric strike
Fail Unlocked electric strike suitable for use with nightlatches. Medium strength, resists 450 kg side
pressure. Tested to 1 million operations. Continuously rated, available in 12V and 24V DC
versions.
5114A – fail unlocked electric strike with microswitch
Fail Unlocked electric strike suitable for use with nightlatches. Microswitch monitors latchbolt
engagement. Medium strength, resists 450 kg side pressure. Tested to 1 million operations.
Continuously rated, available in 12V and 24V DC versions.
The electric strikes listed above
may be used with any of the
faceplates shown, depending on
the door frame material.
