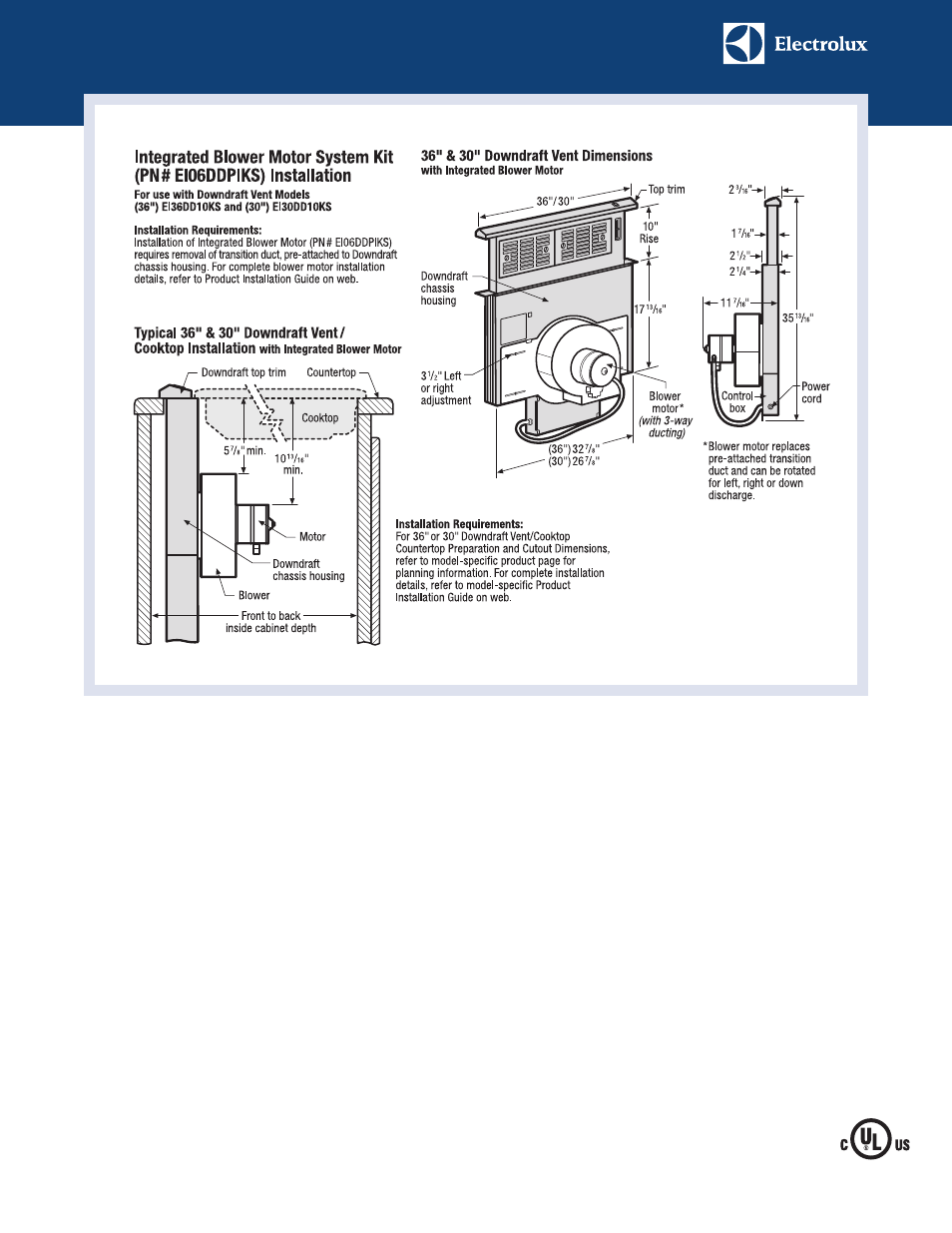

Integrated Blower Motor System Kit
PN # EI06DDPIKS
Integrated Blower Motor System Kit Specifications
• 600 CFM Integrated Blower Motor System Kit is designed for use with
Downdraft Vent models (36") EI36DD10KS and (30") EI30DD10KS. For
complete 36" or 30" Downdraft Vent / Cooktop Countertop Preparation
planning information and Downdraft Vent cutout dimensions, refer to
model-specific Downdraft Vent product page. For complete installation
details, refer to model-specific Product Installation Guide on web.
• Integrated Blower Motor installation requires replacement of transition
duct, pre-attached to Downdraft chassis housing. For complete blower
motor installation details, refer to Product Installation Guide on web.
• Voltage Rating – 120V / 60 Hz / 15 Amps
• Connected Load (kW Rating) = 0.41 kW (For use on adequately wired
120V, dedicated circuit having 2-wire service with a separate ground
wire. Appliance must be grounded for safe operation.)
• Amps @ 120 Volts – 3.4 Amps
• Do not use same circuit as cooktop.
• Always consult local and national electric codes. Check local building
codes for installation requirements, as they may vary per locale.
• Locate grounded electrical outlet for 28"- long power cord within reach-
able distance. When installing 36" vent in 36"- wide cabinet, or 30" in 30"-
wide cabinet, outlet cannot be located on back wall of cabinet,
but can be wall-mounted with access hole in cabinet.
• Vent exhaust air outside only.
• Exhaust Duct Required – Galvanized or aluminum duct in 6" round or
3-1/4" x 10" rectangular, or combination of both. PVC should be used
if installing under concrete slab.
• Three blower discharge direction options available; rotate blower motor
for left, right or down discharge.
• Consider ductwork location before cutting hole in cabinet. Blower motor
mounted on slide plate, enabling 3-1/2" left or right adjustment to avoid
duct interference with joists or other obstructions.
• For maximum efficiency, use shortest and straightest duct run possible.
System operates most efficiently with up to 60 equivalent feet of duct;
Downdraft Vent operates properly with ductwork up to 100 equivalent
feet. (Refer to Calculating Duct Length Table in Product Installation Guide.)
• Do not use flexible duct. Round duct instead of rectangular duct
recommended, especially when elbows are required.
• Thermal breaks such as short section of nonmetallic duct, should be
used in areas of extreme cold. Cold weather installations should have
additional backdraft damper installed.
• High level of airflow may affect gas flame on some gas cooktop models.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
