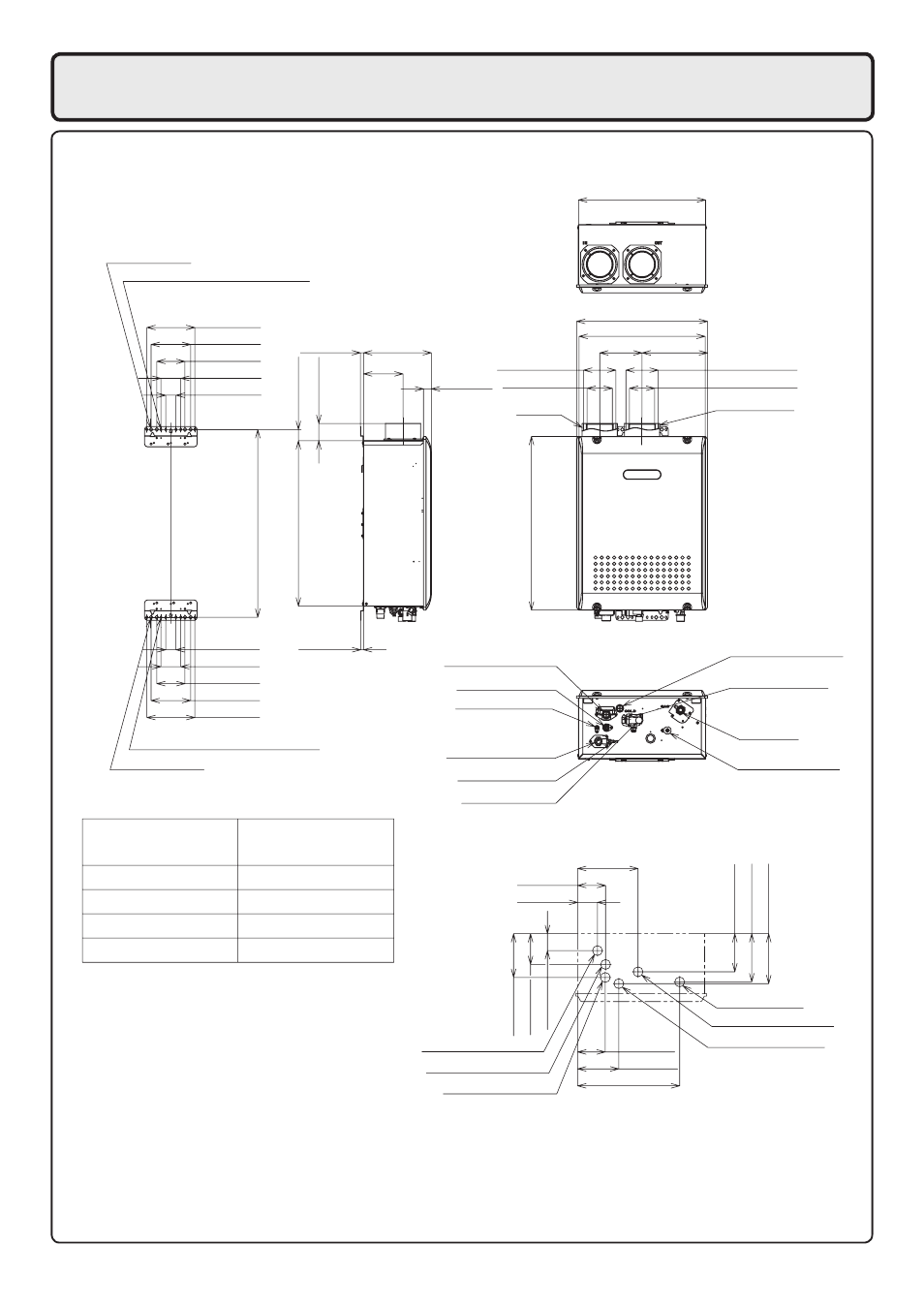

Dimensions
WATER DRAIN VALVE
COLD WATER INLET
WATER DRAIN VALVE
HOT WATER OUTLET
WATER DRAIN VALVE
CONDENSATE DRAIN
WIRING THOROUGHWAY
GAS INLET
(WATER FILTER)
WATER DRAIN VALVE
WIRING THOROUGHWAY
(AC120V)
AIR INLET
FLUE COLLAR
(VIEW FROM TOP)
HOT WATER OUTLET (3/4")
CONDENSATE DRAIN (1/2")
WIRING THOROUGHWAY
WIRING THOROUGHWAY
COLD WATER INLET (3/4")
GAS INLET (3/4")
2.2" (56mm)
2.2" (55mm)
1.7" (44mm)
0.8" (20mm)
EN19WI30LS
EP19WI30LS
GAS INLET
COLD WATER INLET
HOT WATER OUTLET
CONDENSATE DRAIN
FROM BOTTOM OF CASE
HEIGHT OF EACH FITTING
6.7" (170mm)
5.5" (140mm)
3.9" (100mm)
2.8" (70mm)
1.4" (36mm) 0.4" (10mm)
4 - Ш0.5" (Ш13mm)
6 - 0.24" x 0.4" (6 x 10mm) OBLONG HOLE
1.6" (40mm)
5.3" (135mm)
6.1" (155mm) 4.3" (109mm)
2.4" (60mm)
6.7" (171mm) 7.0" (177mm)
26.2" (665mm) 23.1" (586mm) 24.4" (619mm)
2.4" (61mm)
0.4" (10mm) 9.4" (240mm)
5.5" (140mm)
1.1" (28mm)
Ш4.5" (Ш114mm)
Ш3.5" (Ш89mm)
17.7" (450mm)
18.4" (468mm)
17.6" (448mm)
5.9" (150mm) 9.1" (232mm)
Ш4.5" (Ш114mm)
Ш3.5" (Ш89mm)
8.4" (214mm)
3.9" (99mm)
2.8" (70mm)
14.2" (362mm)
5.7" (146mm)
3.9" (98mm)
(AC120V)
< inch (mm) >
4 - Ш0.5" (Ш13mm)
6 - 0.24" x 0.4" (6 x 10mm) OBLONG HOLE
6.7" (170mm)
5.5" (140mm)
3.9" (100mm)
2.8" (70mm)
1.4" (36mm)
