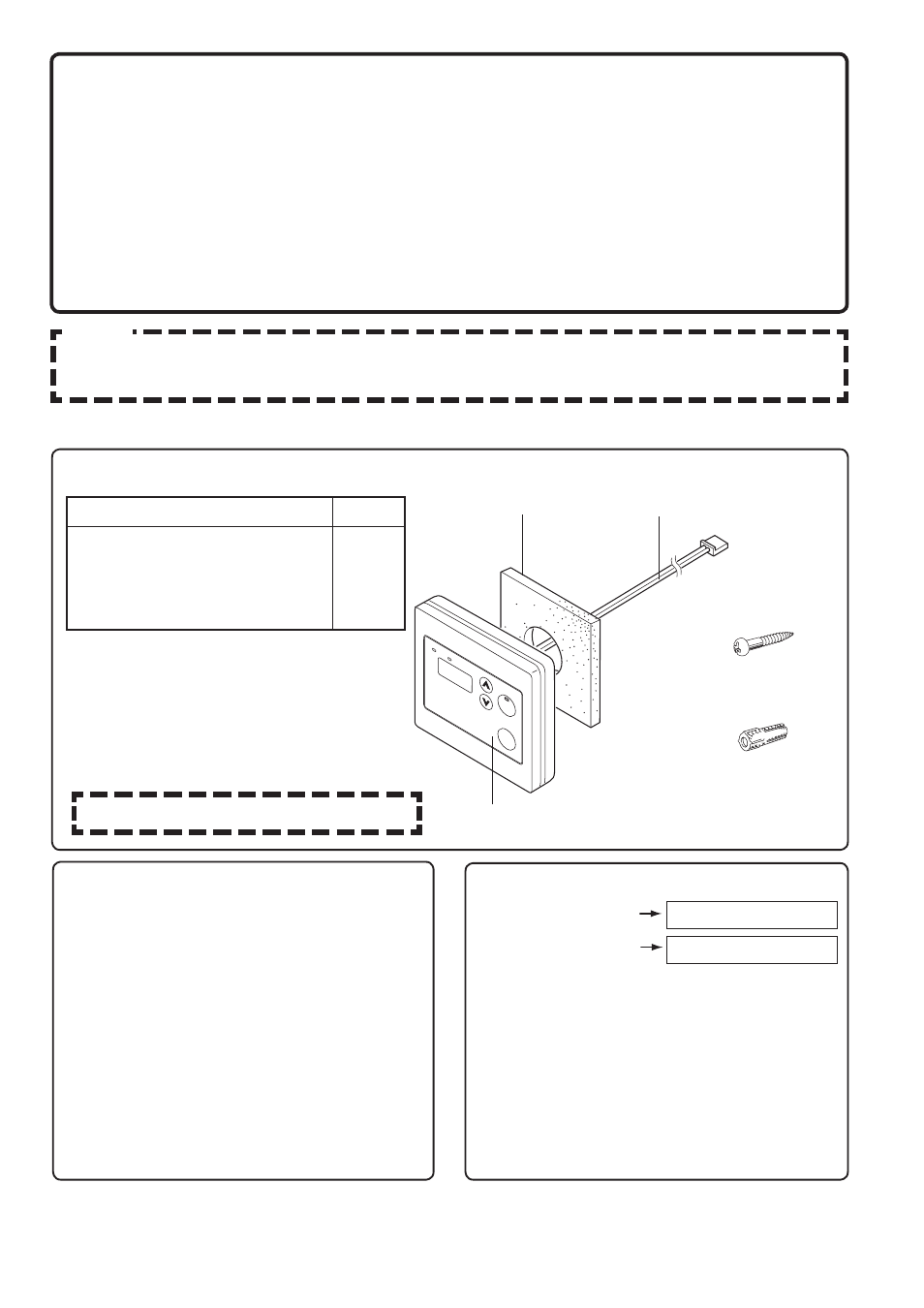

Included Parts List
For Installers:
Read this installation guide
carefully before carrying out
installation.
Note
Do not connect power to the water heater before the remote controller has been properly installed.
Recommended installation location of the remote controller is in a bathroom.
Do not disassemble the remote controller.
Wall Packing Connecting Wire
Remote Controller
Phillips Roundhead
Wood Screw
Wall Anchor
Part Name
Remote Controller
Wall Packing
Phillips Roundhead Wood Screw
Wall Anchor
Quantity
1
1
2
2
Notes on the Installation Location
r5IFSFNPUFTIPVMECFJOTUBMMFEJOBOFBTJMZ
accessible location.
rAvoid installing in a place where water or steam
can come into contact with the controller.
r"WPJEMPDBUJPOTXIFSFTQFDJBMDIFNJDBMBHFOUT
(e.g., benzene, fatty and oily detergents) are
used.
r"WPJEPVUEPPSJOTUBMMBUJPO
PSJOTUBMMBUJPOJO
an indoor location where it will be exposed
to direct sunlight.
Connection of Remote Controller Cord
White Connector To Remote Controller
:TIBQFEUFSNJOBMT 5P8BUFS)FBUFS
(two-core)
* Confirm the connection with the labels at
both ends of the remote controller cord.
rThe remote controller cord can be extended
up to 300 ft (90m). by splicing the cord and
using 18 gauge wire to extend the cord to
the appropriate length.
Remote Controller
Installation Guide
Electrolux Home Products, Inc.
