Hot Food Drop-In Well Operation & Care Manual • 10
I N S T A L L A T I O N
HW
DEPTH
HW/D6
DEPTH
7-1/2" (190mm)
6-3/16" (157mm)
5-3/8" (136mm)
68-1/8" (1730mm)
5" (125mm)
9-1/2" (241mm)
8-3/16" (208mm)
24
-3
/1
6"
(6
14
m
m
)
3-1/8" (78mm)
to electrical cord
10-5/8" (267mm)
22" (558mm)
34-1/16" (865mm)
to electrical cord
One (1) flexible
water-tight tether
36" (914mm)
Electrical Cord
60" (1524mm)

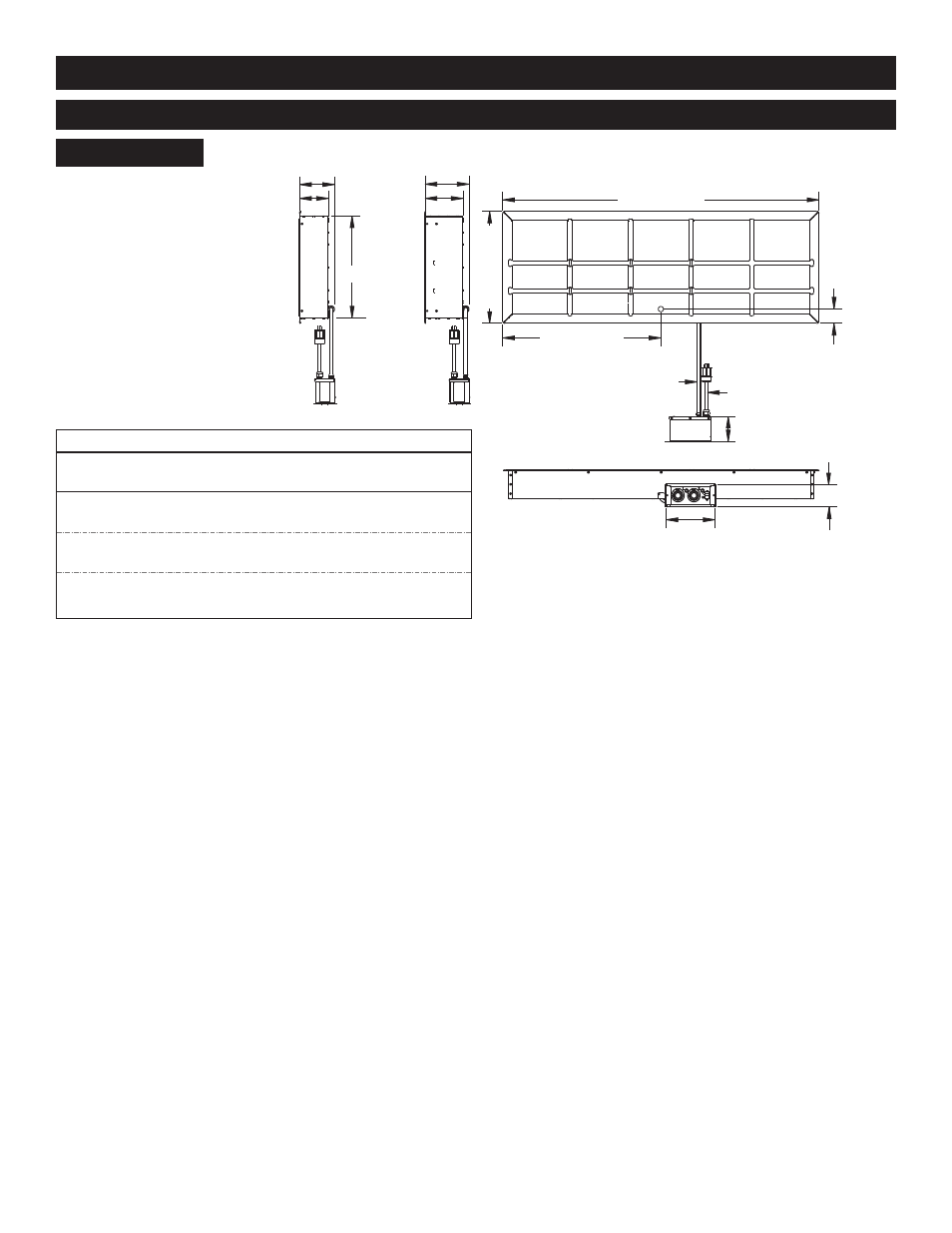

D I M E N S I O N S * C A P A C I T Y
5 0 0 - H W
PRODUCT\PAN CAPACITY
60 lb (27 kg)
MAXIMUM
(
BASED ON
4"
DEEP PANS
)
MAX . VOLUME : 37.5 qt (47.5 L)
FULL-SIZE PANS*: Five (5) 12" x 20" x 2-1/2"
GN 1/1 (325mm x 530mm x 65mm)
HALF-SIZE PANS*: Ten (10) 12" x 10" x 2-1/2"
GN 1/2 (325mm x 265mm x 65mm)
THIRD-SIZE PANS*: Fifteen (15) 12" x 6" x 2-1/2"
GN 1/3 (325mm x 176mm x 65mm)
* WILL ALSO ACCEPT 4" (100mm) DEEP PANS ; D6 UNITS WILL ACCEPT 6" (153mm) DEEP PANS
