Installation
29
802702
Washer
Washer requires 120 Volt, 60 Hertz electrical supply
and comes equipped with a 3-prong grounding plug.
Refer to serial plate for specific electrical
requirements.
NOTE: The wiring diagram is located behind the
control panel, inside the control cabinet.
DRY2022N
1
L1
2
Ground
3
Neutral
4
Neutral Side
5
Round Grounding Prong

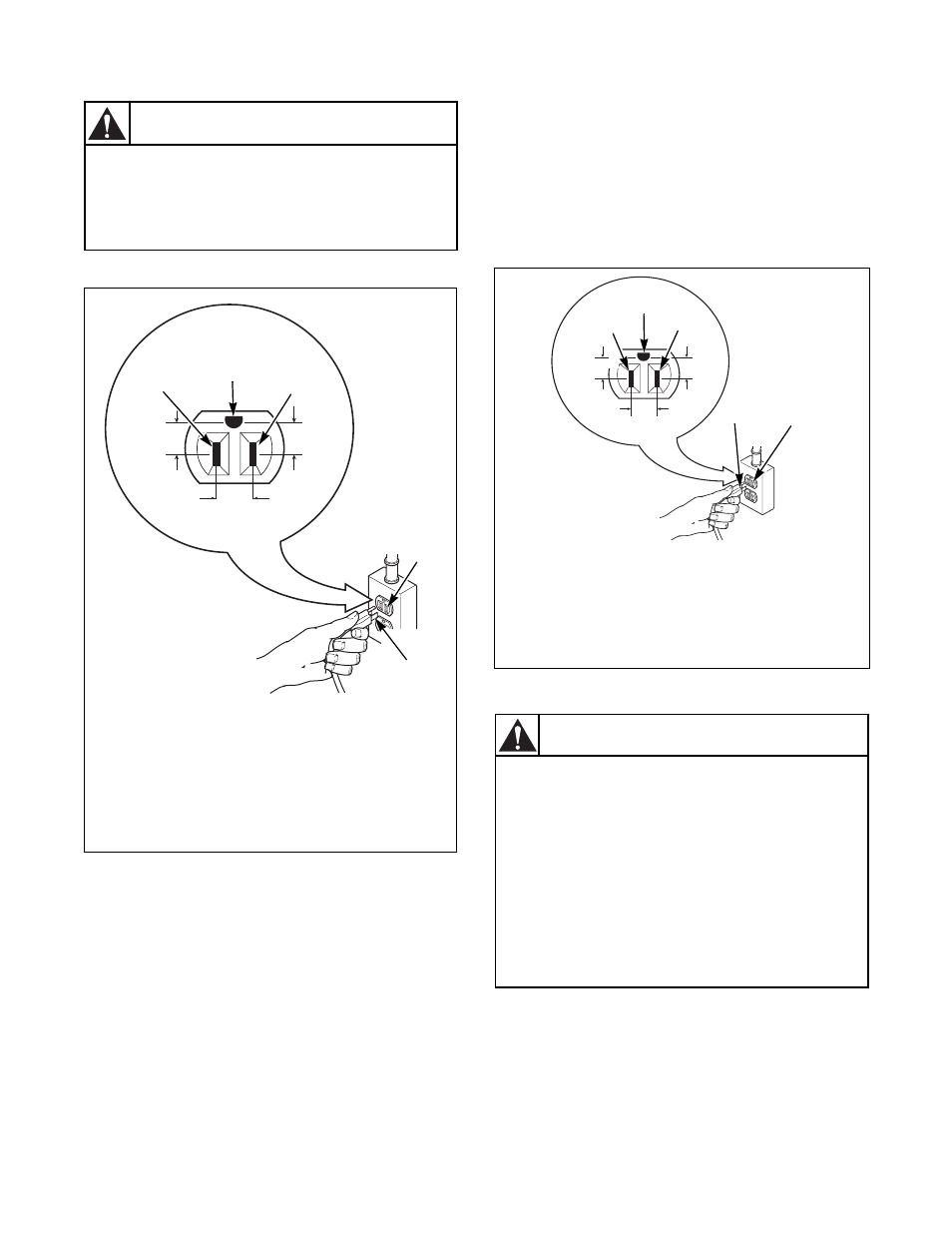

Figure 30
To reduce the risk of an electric shock or
fire, DO NOT use an extension cord or an
adapter to connect the dryer to the electrical
power source.
W037
WARNING
D254I
DRY2
0 V.A.C
120±12
V.A.C
Plug cord into separately fused 15 Amp circuit.
3
2
1
4
5
120±12
V.A.C
DRY2022N
1
L1
2
Ground
3
Neutral Side
4
Round Grounding Prong
5
Neutral
Figure 31
1
2
3
4
5
Standard 120 Volt, 60 Hertz
3-Wire Effectively
Grounded Circuit
0 V.A.C.
120±12
V.A.C.
120±12
V.A.C.
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA No. 70, and such local
regulations as might apply. It is the
customer’s responsibility to have the
wiring, fuses and circuit breakers
installed by a qualified electrician to make
sure adequate electrical power is
available to the washer.
W518
WARNING
