Installation
23
802702
Multi-Dryer Installation Exhaust
Requirements

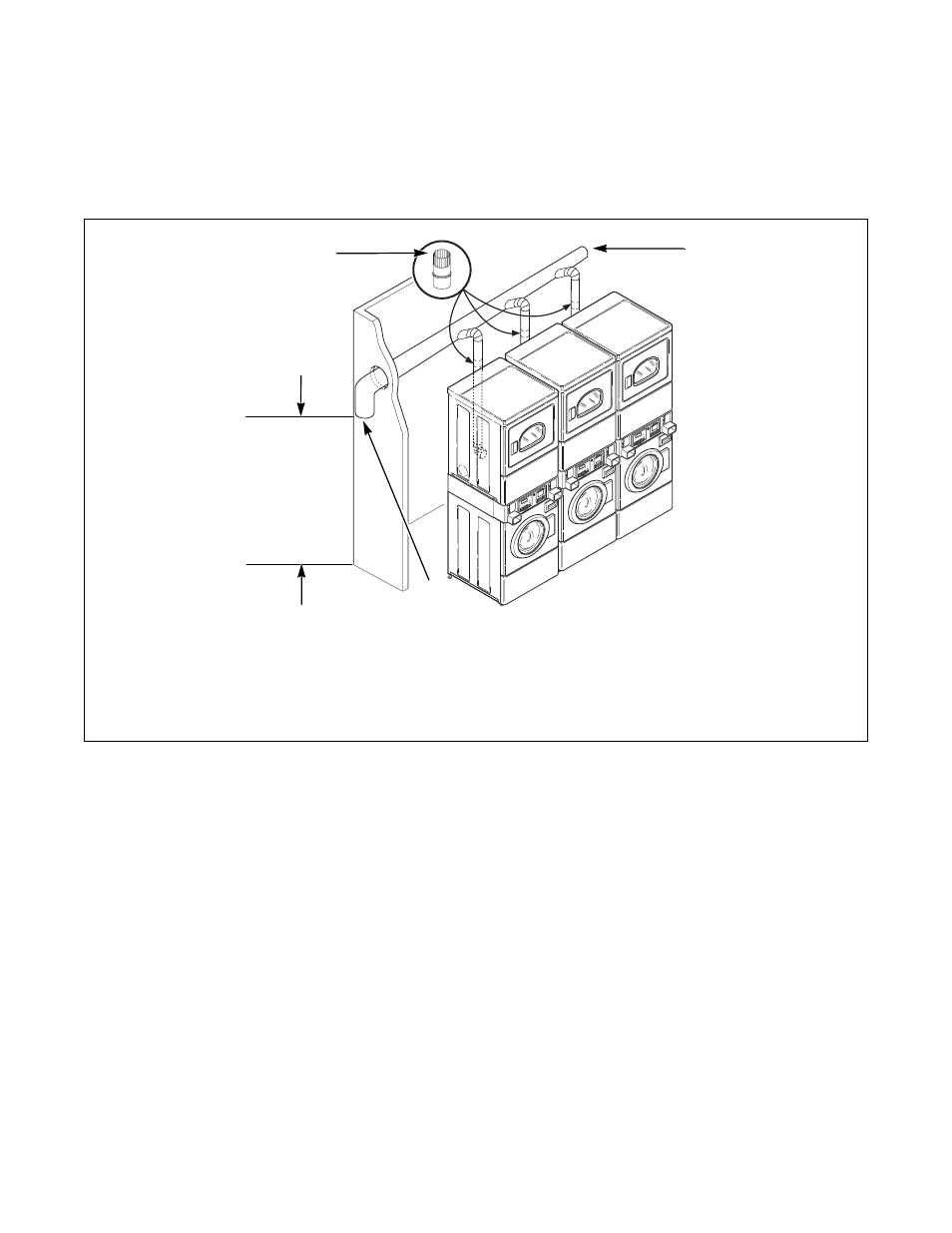

Figure 20 shows a typical example of a multiple dryer
installation. Note how each dryer has its own exhaust
system vented to the central exhaust duct.
Figure 20
SWD798N
1
58786 Backdraft Damper
(Available through your local authorized parts
source)
3
Weather Hood or Sweep Elbow
(No cap or screen)
2
Clean Out Cover (must be provided).
Inspect monthly.
SWD798N
2
1
3
24 in. (61 cm) MINIMUM
CLEARANCE TO
ROOF/GROUND
