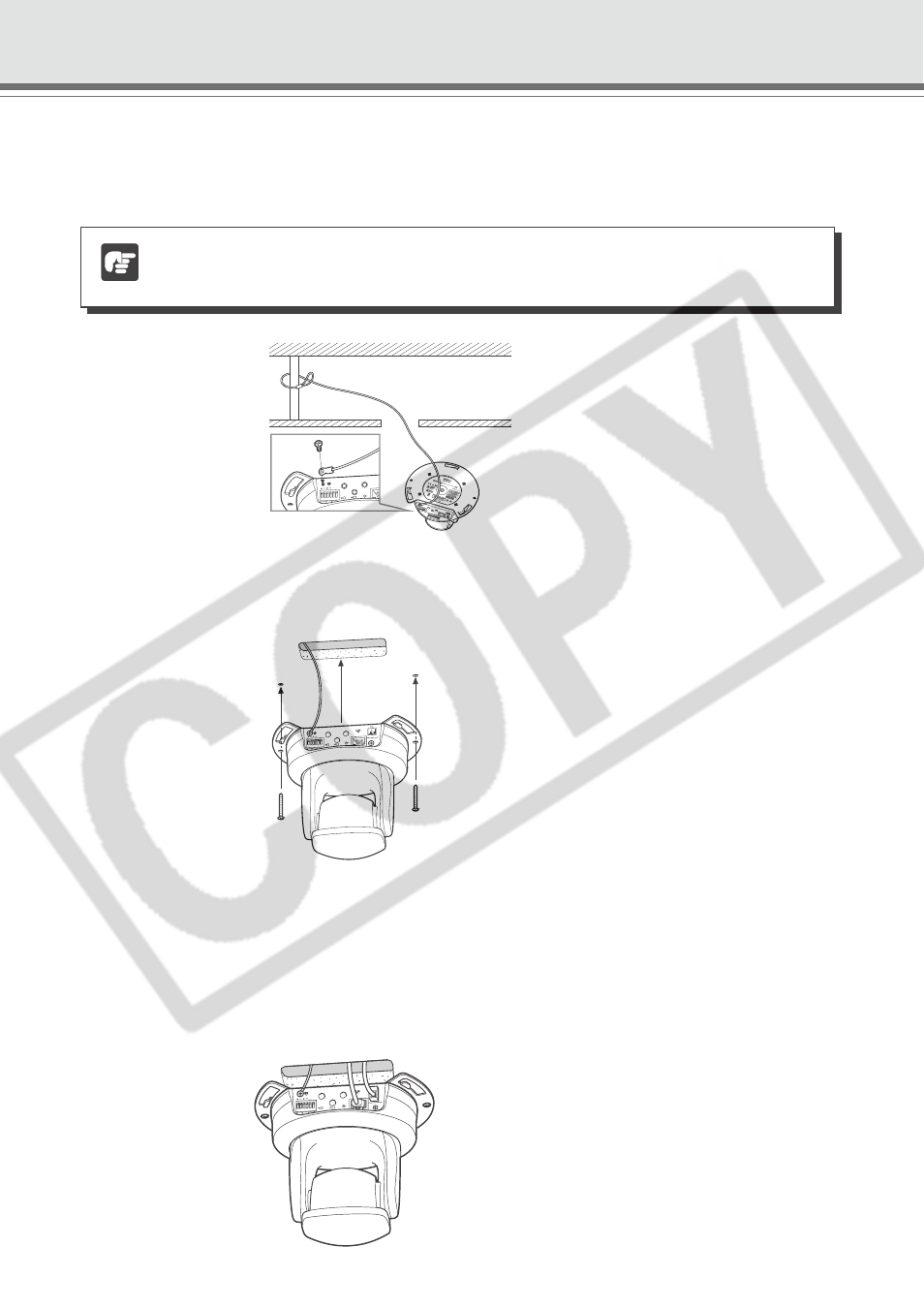

4. Secure the Safety Wire.
Secure the Safety Wire to an anchor or structure.
After securing it, attach and fix it to the camera with a screw supplied with the camera.
5. Mount the camera on the ceiling.
Adjust the Ceiling Bracket to the screw holes on the ceiling, then secure it to the ceiling with
two screws.
6. Connect the LAN cable passing through the cable hole to the camera.
When using the AC adapter (optional) or external power supply, connect the
power cable to the camera.
Connect the cables to External Device I/O terminals or Audio output/input terminals as required
to the camera.
Note
If the cable hole cannot be drilled, because the ceiling is concrete for example, secure
the wire to an appropriate location.
