Installation and Connection Instructions
35
Water drain
Drain hose
1 The drain hose must not be kinked, crushed or entangled.
• Connecting the drain hose:
– Maximum permitted height: 1 metre.
– Minimum required height 30 cm above the lower edge of the
machine.
Extension hoses
• Extension hoses are available from
your dealer or customer service.
The internal diameter of the exten-
sion hoses must be 19 mm to
ensure that the function of the
appliance is not impeded.

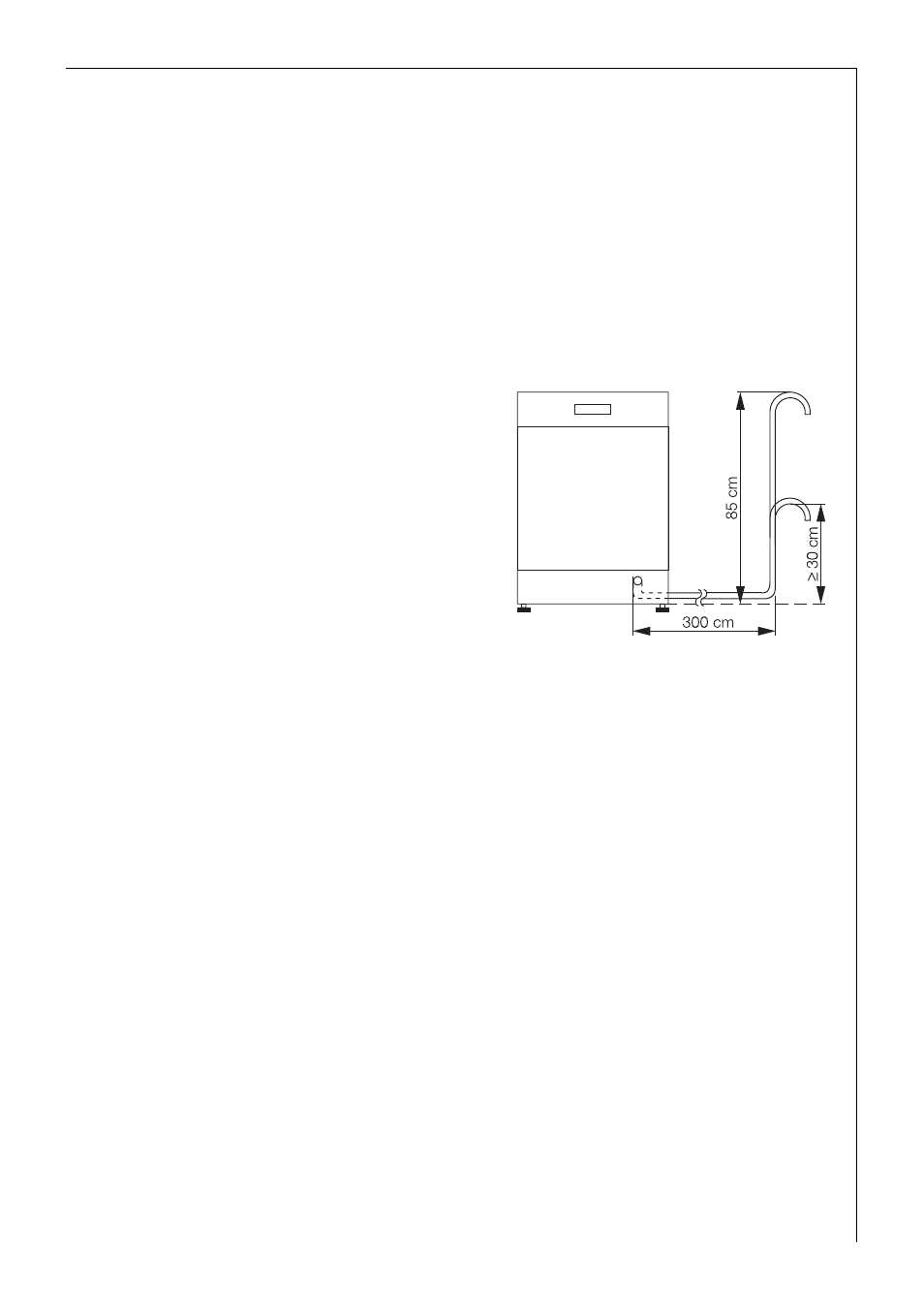

• Extension hoses may be laid a max-
imum of 3 metres horizontally; the
maximum permitted height for the
connection for the drain hose is
then 85 cm.
Siphon connection
• The outlet of the drain hose (ø 19 mm) fits all commonly available
siphon types. The outer diameter of the siphon connection must be at
least 15 mm.
• The drain hose must be fixed to the siphon connection using the hose
clamp supplied.
Water drain into wash basins (only possible with free-standing
appliances)
In the case that you wish to hang the drain hose in a wash basin, use a
detachable hose elbow. You can obtain this from AEG customer service
under spare part number ET 646 069 190.
0 1. Fit the elbow to the drain hose.
2. Secure the drain hose against sliding off the edge of the wash basin.
Pass a piece of cord through the hose elbow and fix it to the wall or the
tap.
