Installation and Connection Instructions
32
1 If the facing panel is longer than 600 mm, the door of the appliance
cannot be opened completely (the facing panel bumps against the
plinth).
If this is the case, the plinth must be cut out (see installation template)
or the brace adapter for the extra long door BLT 60 must be used.
You can obtain this with the E No. 911 239 008.
Built-In Dishwasher
(see enclosed installation instructions)
Free-Standing Appliances
1 • can be set up as stand-alone without additional installation.
If the dishwasher is set up next to a gas or coal cooker, a heat-insu-
lating, non-flammable plate must be mounted between the dish-
washer and the cooker, flush to the top edge of the work surface
(depth
57.5 cm). The plate should have aluminium foil on the side facing the
cooker.

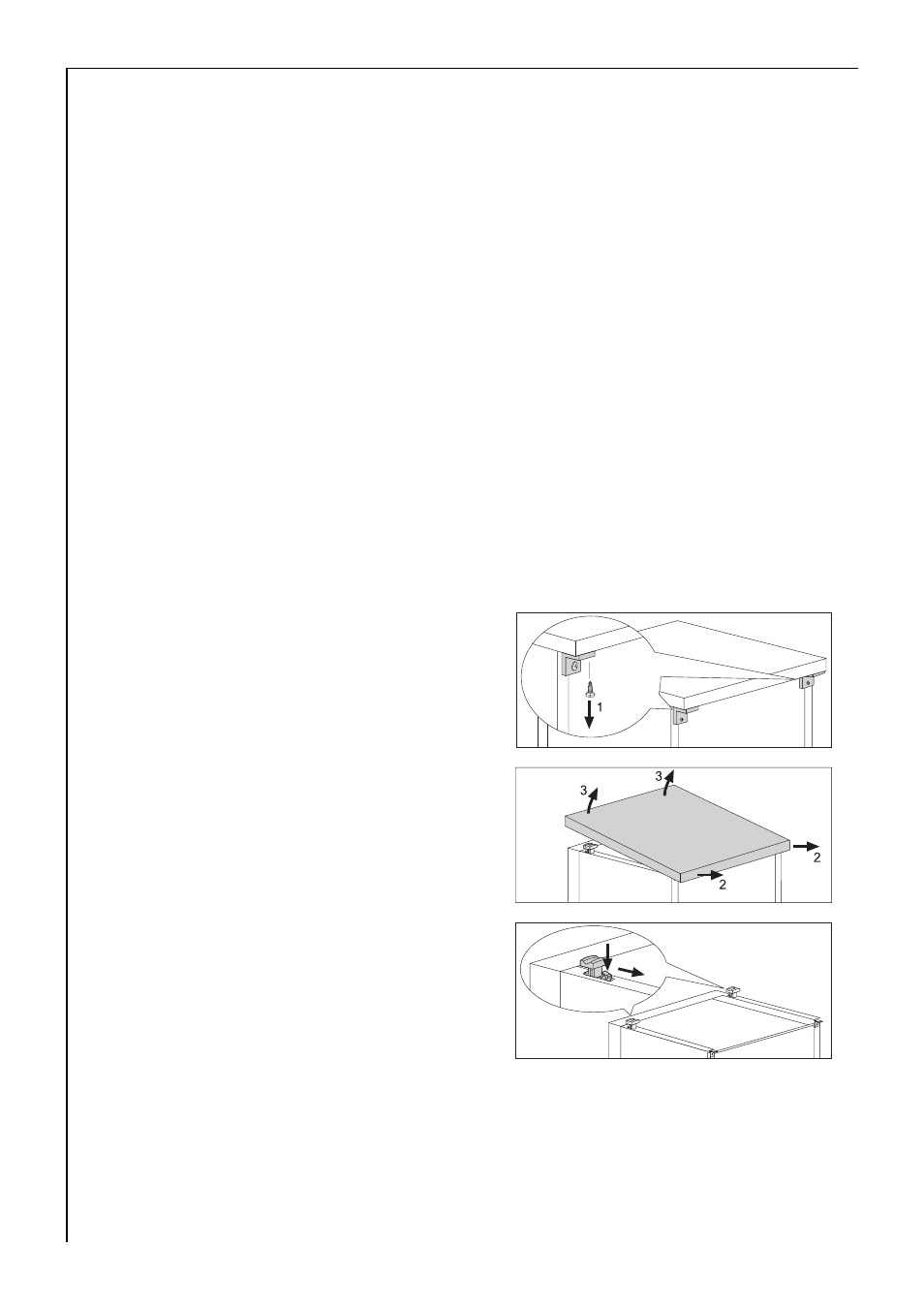

• If the dishwasher is installed under-
neath a kitchen work surface, the
original work surface of the dish-
washer is to be removed as follows:
– Unscrew the screws (1) from the
elbows on the back side.
– Slide the work surface approx.
1cm to the rear (2) , lift at the
front (3) and remove.
– Press the work surface retaining
brackets at the position shown in
the diagram
(4) and remove the
bracket at an angle to the rear
(5).
1 If the dishwasher is later used as a free-standing appliance, the original
work surface must be re-mounted.
4
5
