d. EQ Adjustment: You can adjust the EQ control to Auto Mode by rotating the EQ control
anti-clockwise. The “EQ” and “Auto” LEDs will display blue.
e. LINK OUT: The function of “LINK OUT” port on Multi-Port Transceiver is to cascade HDMI
signal to one-port HDMI Transceiver or another 4 / 8 port HDMI Transceiver;

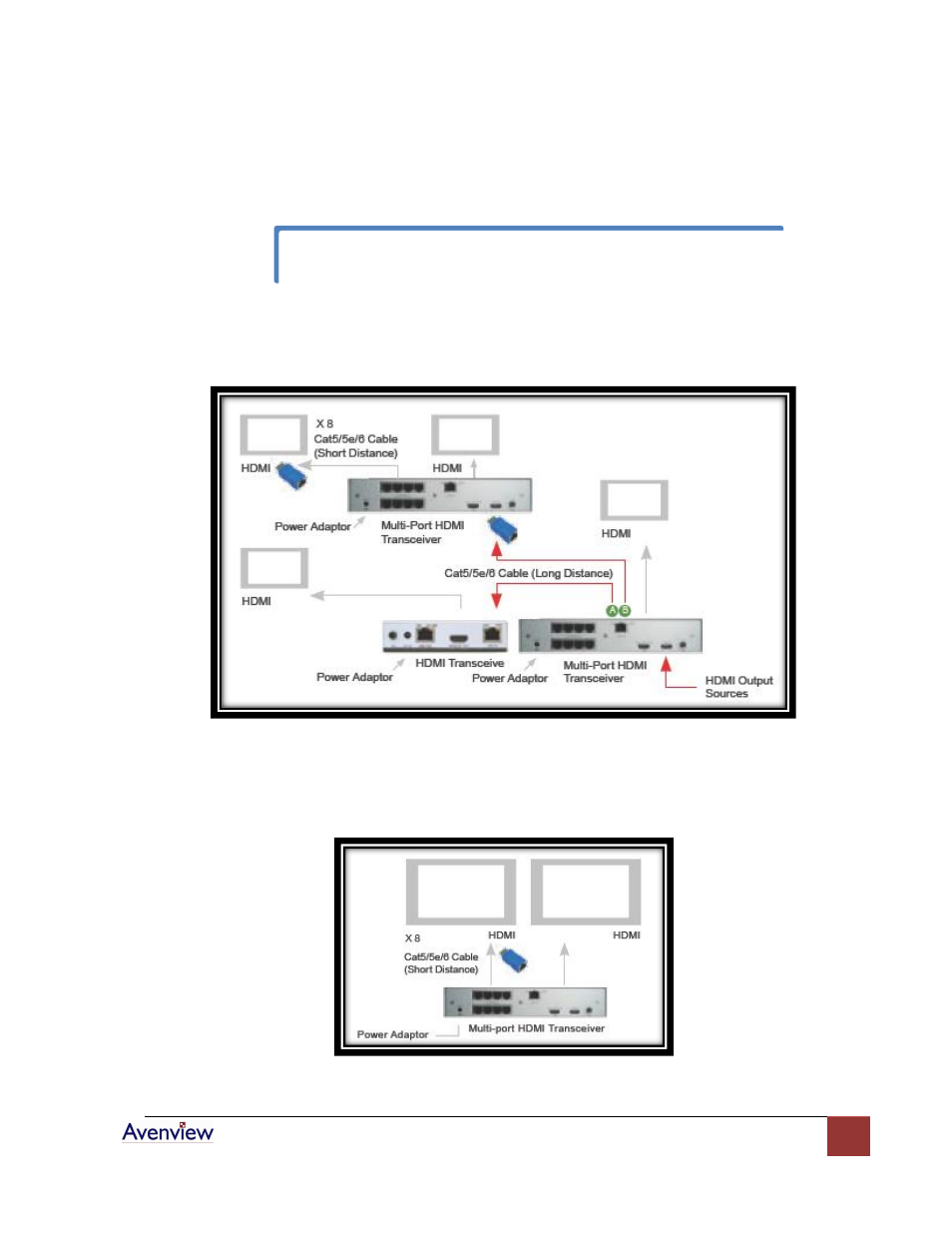

Two ways of cascading HDMI signal by Multi-Port HDMI Transmitter
f. Connecting Monitors: 4 / 8 HDMI monitors can be connected to the “RJ-45 HDMI OUT”
ports by HDMI-C5-R Receiver.
Connecting 8 HDMI Monitors
After connecting the extender system, if you see dynamic dots or unclear image on the
HDMI monitor, adjust the signal on HDMI Transmitter.
