www.avenview.com 10

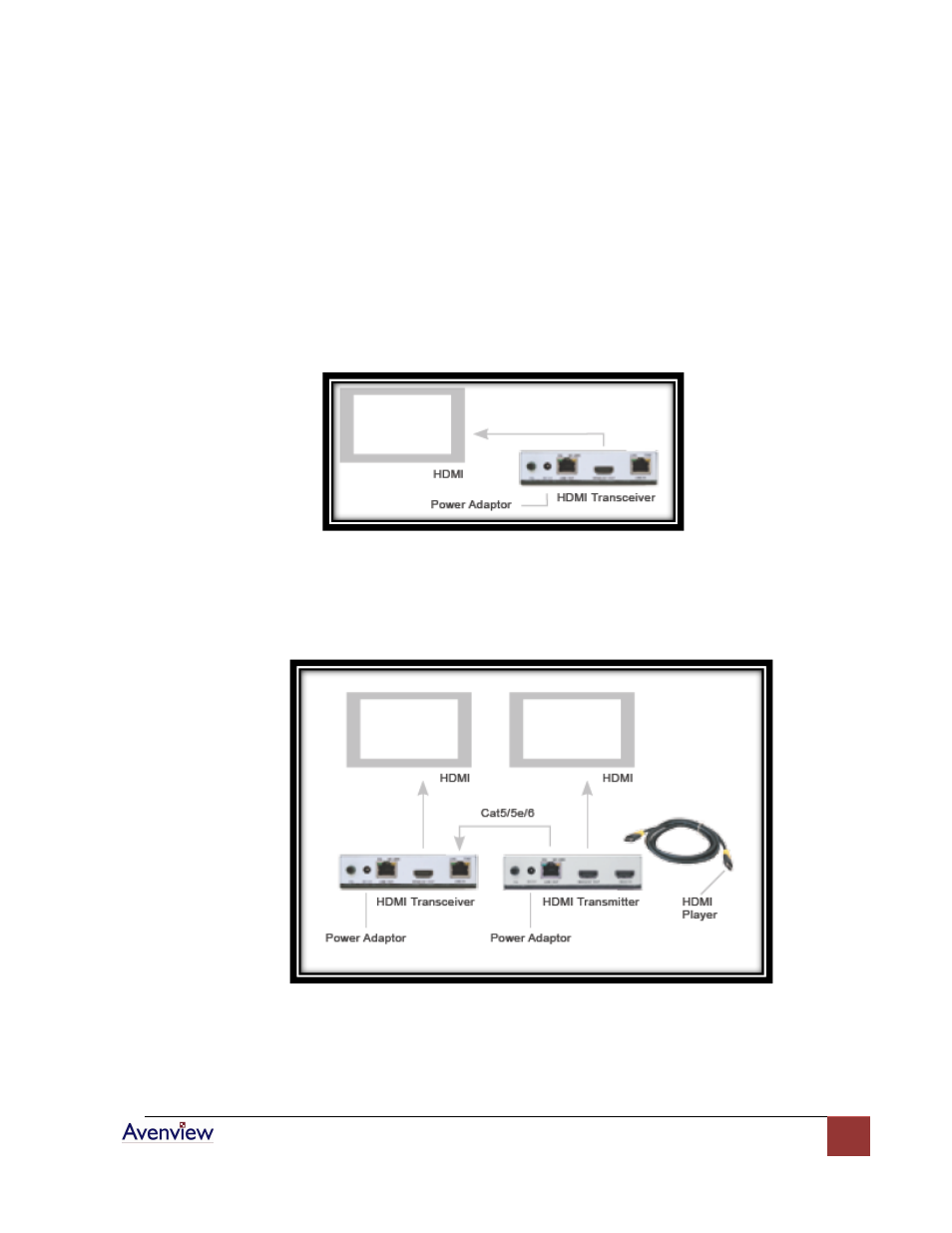

Transceiver HDMI-C5-SR Installation
a. Monitor Connection: Connect HDMI monitor’s HDMI cable to Transceiver and turn on the
monitor.
b. Device Connection: Plug power adapter to HDMI-C5-SR, the “PWR” LED and “M1 LINK” will
turn ON. The “LINK IN” LED should turn off since there is no input of video signal from “LINK
IN” port.
Connection of HDMI Transceiver
c. HDMI Cascading: The RJ45 “LINK IN” port is designed to receive the HDMI signal from
Transmitter over Cat 5 / 5e / 6 cable. Follow “HDMI-C5-S Single Port Transmitter
Installation” to install Transmitter and extend the HDMI signal.
