9
FERTILIZER FERTILIZER
Powder
3 - 5 3' - 4' Powder 3 - 5 3' - 4' Powder 3 - 5 3' - 4' Powder 3 - 5 3' - 4'
Granular 3 - 5 8' - 10' Granular 3 - 5 8' - 10' Granular 3 - 5 8' - 10' Granular 3 - 5 8' - 10'
Pelleted 3 - 5 10' - 12' Pelleted 3 - 5 10' - 12' Pelleted 3 - 5 10' - 12' Pelleted 3 - 5 10' - 12'
Organic 6 - 8 6' - 8' Organic 6 - 8 6' - 8' Organic 6 - 8 6' - 8' Organic 6 - 8 6' - 8'
GRASS SEED GRASS SEED
Fine
3 - 4 6' - 7' Fine 3 - 4 6' - 7' Fine 3 - 4 6' - 7' Fine 3 - 4 6' - 7'
Coarse 4 - 5 8' - 9' Coarse 4 - 5 8' - 9' Coarse 4 - 5 8' - 9' Coarse 4 - 5 8' - 9'
ICE MELTER 6 - 8 10' - 12' ICE MELTER 6 - 8 10' - 12' ICE MELTER 6 - 8 10' - 12' ICE MELTER 6 - 8 10' - 12'
TYPE SPREAD TYPE SPREAD TYPE SPREAD TYPE SPREAD
MATERIAL FLOW SETTING WIDTH MATERIAL FLOW SETTING WIDTH MATERIAL FLOW SETTING WIDTH MATERIAL FLOW SETTING WIDTH

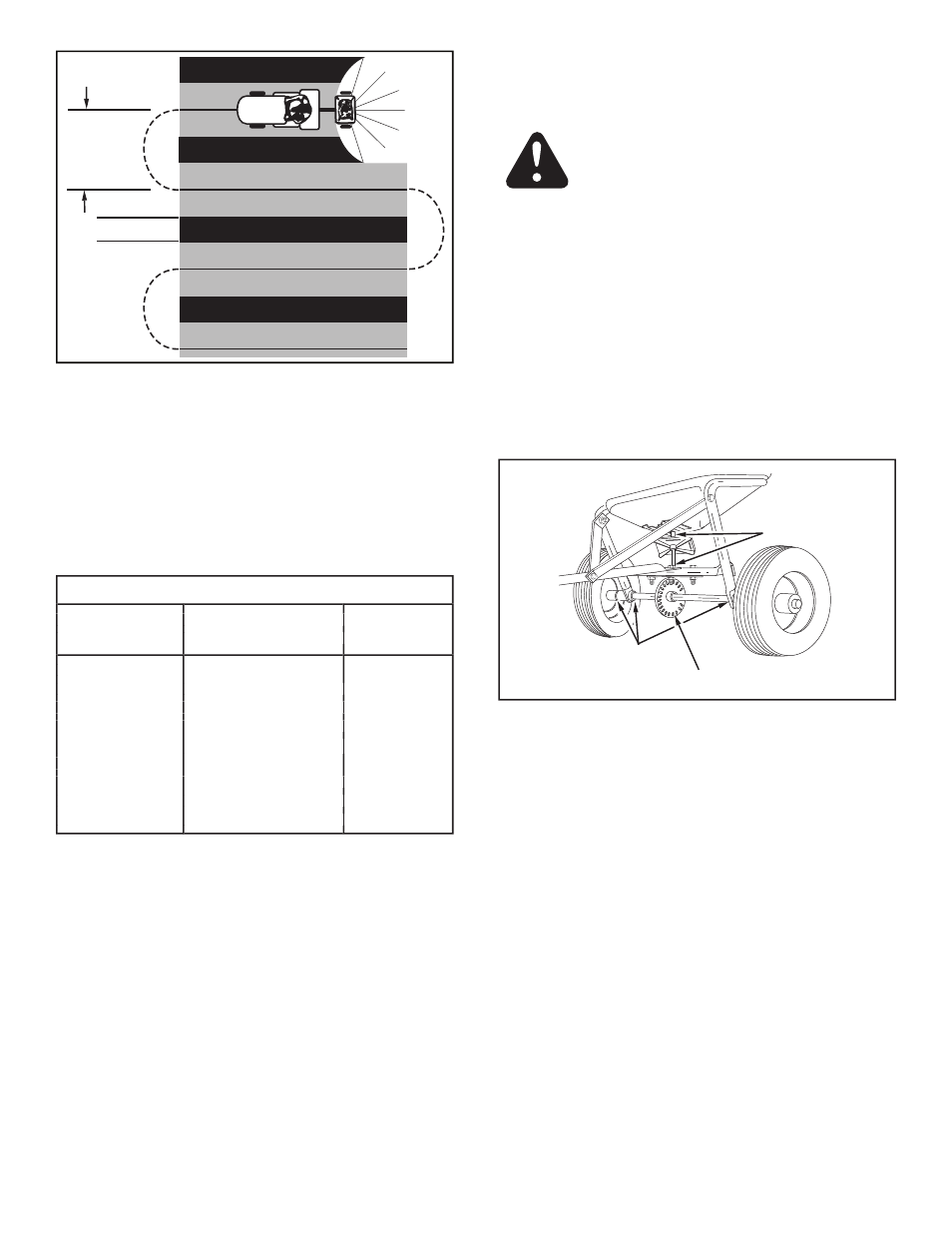

APPLICATION CHART
OPERATING SPEED - 3 MPH. (100 ft. in 23 seconds)
IMPORTANT: Application rates shown in the chart are
affected by humidity and by the moisture content of
the material (granular and pellet). Some minor setting
adjustments may be necessary to compensate for this
condition.
CHECK FOR LOOSE FASTENERS
1. Before each use make a thorough visual check of the
spreader for any bolts and nuts which may have loosened.
Retighten any loose bolts and nuts.
CHECK FOR WORN OR DAMAGED PARTS
2. Check for worn or damaged parts before each use.
Repair or replace parts if necessary.
FIGURE 18
1. Rinse inside of hopper and exterior of spreader and dry
off before storing.
2. Store in a clean, dry area.
CAUTION: DO NOT infl ate tires beyond the
maximum recommended pressure printed on
side of tire.
CLEANING
4. Rinse inside of hopper and exterior of spreader and dry
off before storing.
LUBRICATE (See fi gure 18)
5. Lightly apply automotive grease as needed to the
sprocket and gear.
6. Oil the nylon bushings on the vertical sprocket shaft
and on the axle at least once a year, or more often as
needed.
7. Oil right hand (idler) wheel bearing at least once a year
or more often as needed.
MAINTENANCE
GREASE
OIL
OIL
STORAGE
1. If the axle, slotted gear and sprocket assembly is
disassembled, mark down the positions of the parts as
they are removed. The drive wheel and sprocket positions
in relation to the slotted gear determine which direction
the spreader plate will spin. Be sure to reassemble them
in their original positions. (Refer to fi gure 4 on page 5.)
Use shim washers (Ref. no. 21 on pages 10 and 11)
as needed for minimum backlash. Add grease to gear
and sprocket.
SERVICE AND ADJUSTMENTS
FIGURE 17
OVERLAP
REFER
TO
CHARTS
CHECK TIRE INFLATION
3. Check if tires are adequately infl ated before each use. Do
not infl ate beyond maximum recommended pressure.
