Page 13: Chapter 1 g eneral information

background image

5

TREK-305R User Manual

Chapter 1

G

eneral

Information

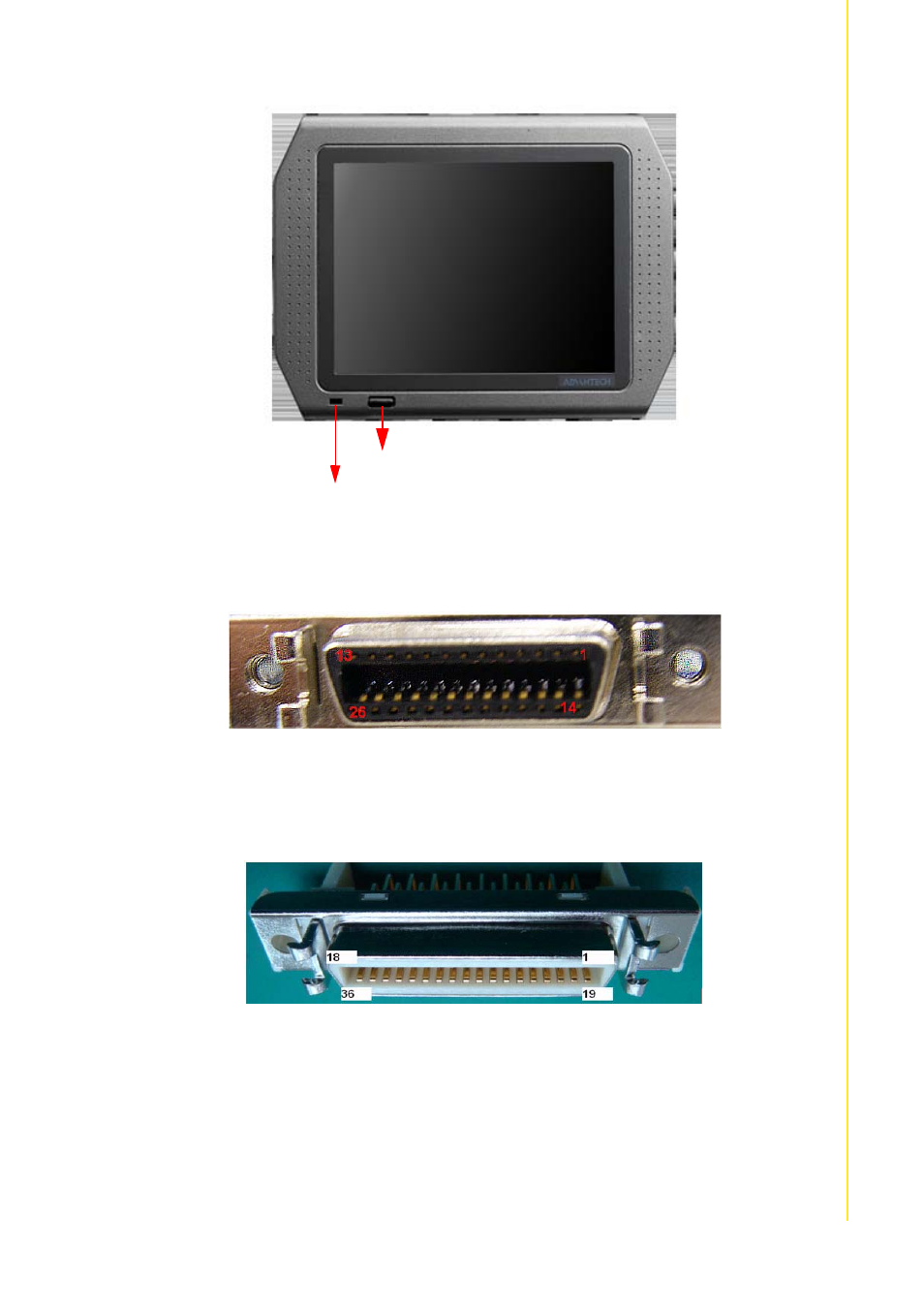

Figure 1.4 Front side of TREK-305R

Pin definition (on TREK)

Connector vendor: 3M Touch systems, p/n: 10226-55G3PC

Figure 1.5 26-pin connector

Pin definition (on VITA)

Connector vendor: 3M Touch systems, p/n: 10236-55G3PC

Figure 1.6 36-pin connector

Power button to control LCD backlight On/Off

When LCD backlight is on, red LED light is on
