RADEON™ VE User’s Guide 23
Using SCART Connectors for European Televisions
The SCART connector supports only the Composite video
format, which means you will have to use the video adapter
cable. The above illustration shows how to connect your
RADEON™ VE to a European TV using the SCART.
If your European television does support S-Video (S-VHS)
input, you can use an S-Video cable (available in most
consumer electronic stores) to view your PC on a television.

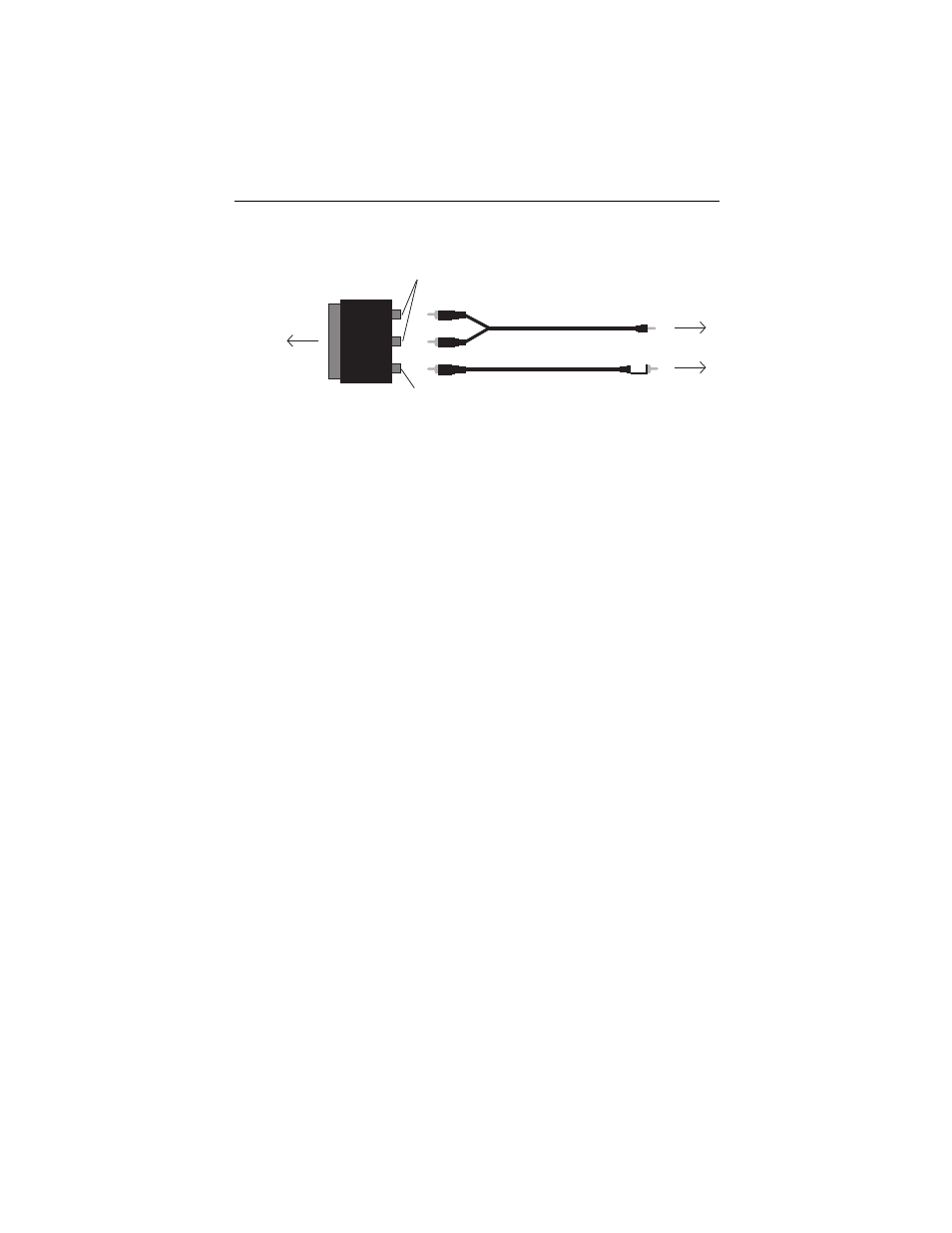

Figure 2. Using a SCART connector with the video adapter cable
Audio In
(Right = Red)
(Left = White)
SCART
Connector
Composite
Audio Cable
Video Adapter Cable
Connect to
audio source
Connect to
S-Video Out
Video In (Yellow)
Connect to
TV or VCR
