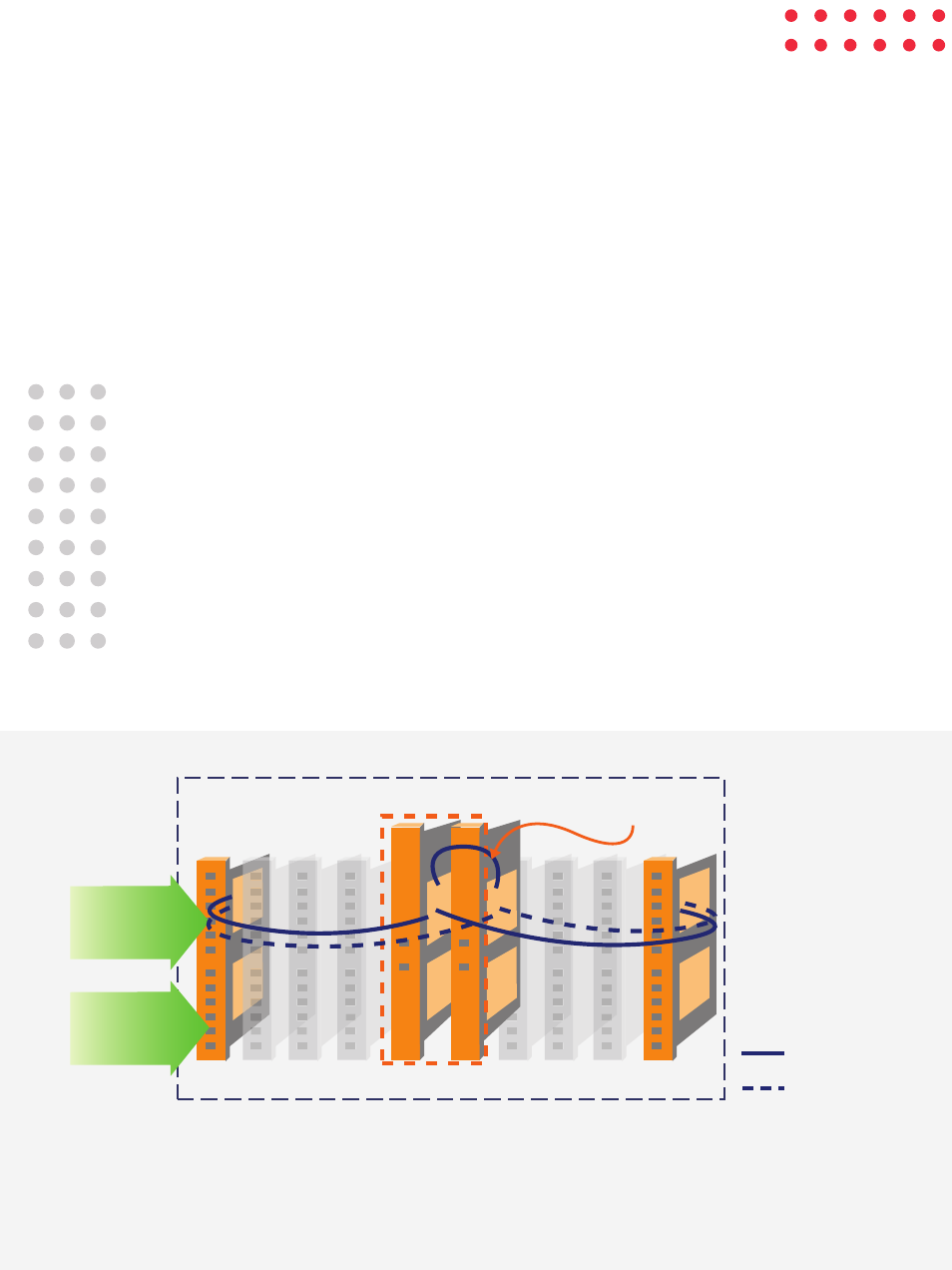

OmniSwitch 9700

CPU

CPU

CPU

CPU

X

X

X

X

Virtual Switching Fabric

CMM Monitoring
& Sychronization

CMM A

Active Control

Standby Control

Standby Gigabit
Ethernet Connection

Active Gigabit
Ethernet Connection

CMM B

NI 8

NI1

STP BPDU

ARP Request

Locally Processed

Requests

Centrally Processed

Requests

Routing Update

Management Access

Principle of operation for distributed intelligence

Alcatel-Lucent | OmniSwitch 9000

6

P R O D U C T F E AT U R E S A N D B E N E F I T S

The OS9000 family provides an easy and economical way to upgrade or

deploy a new Ethernet network. The large number of ports makes the

OmniSwitch 9000s suitable for two- or three-tier network designs. This is

possible because of the high performance capability and density of GigE and

10GigE. The OS9000s also future proofs the network with native and full

support of simultaneous IPv4 / IPv6 for addressing migration from IPv4 to

IPv6 or new IPv6 deployments.

The OS9000s are engineered to be deployed in the:

The OS9000 switch family addresses the needs of

converged networks: high availability, wire-speed

performance, high density GigE and 10GigE, and

improved network response time.

Enterprise core

Data center

Wiring closet

Aggregation layer
