Alcatel-Lucent | OmniSwitch 9000

5

A l c a t e l - L u c e n t O m n i S w i t c h 9 8 0 0

The Alcatel-Lucent OmniSwitch 9800 (OS9800) has an 18-slot chassis which

provides the largest capacity available in the OS9000 family and is designed

for those applications that require a large port density. Designed for smart

continuous switching operations, the two center slots are dedicated to CMMs

allowing redundant configurations, with 16 additional slots for network interface

modules. The CMMs provide two critical functions – active standby resiliency for

system control and active-active redundancy for the switching fabric. The 16 slots

provide support for up to 768 GigE ports or 96 10 GigE ports. Plus, key OS9800’s

sub-components – such as network interface cards (NICs) and the power supply

units (PSU) – are compatible and interchangeable with all other OS9000s as well

as the fan trays with the OS9700, reducing the cost of keeping spares and

lowering the total cost of ownership.

A l c a t e l - L u c e n t O m n i S w i t c h 9 7 0 0

The Alcatel-Lucent OmniSwitch 9700 (OS9700) has a 10-slot chassis that offers

high-density capacity supporting an aggregation of up to 384 GigE ports or 48

10GigE ports. The OS9700 supports two slots for CMMs and has eight additional

slots for network interface modules. Similar to the OS9800, the OS9700 has been

designed for smart continuous switching operation whenever used in a redundant

configuration. The Alcatel-Lucent OmniSwitch 9700 was named as Network

Computing’s Editor’s Choice for its superb manageability and ease of use.

A l c a t e l - L u c e n t O m n i S w i t c h 9 6 0 0

The Alcatel-Lucent OmniSwitch 9600 (OS9600) features a 5-slot chassis making it

Alcatel-Lucent’s low-cost, entry-point LAN switch solution that provides the small

enterprise the best performance-to-price available today. The OS9600 supports a

single CMM and four network interface modules. The OS9600 also future proofs

the investment since the network can be expanded inexpensively by reusing all

components in an OS9700 including the CMM, the OS9000 network interface

modules, the power supplies, and the large power-over-Ethernet shelf. By offering

the same features and capabilities as the other OmniSwitch 9000 switches, the

OS9600 provides enterprise businesses an affordable core that supports converged

voice, video, data and other applications.

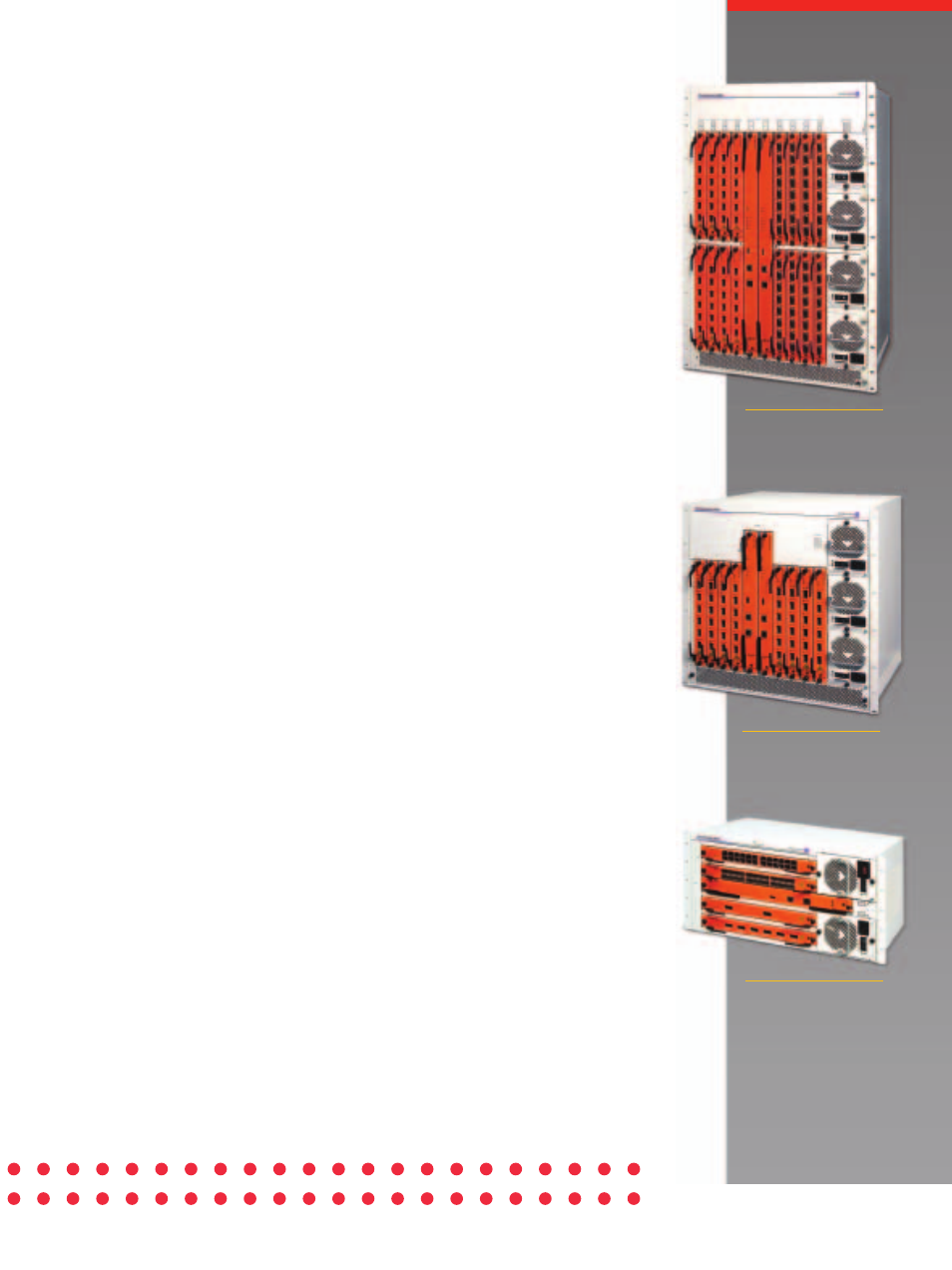

OmniSwitch 9700

OmniSwitch 9800

OmniSwitch 9600
