Removing the Antennas
1. See “Removing the LCD Panel” on page 99.

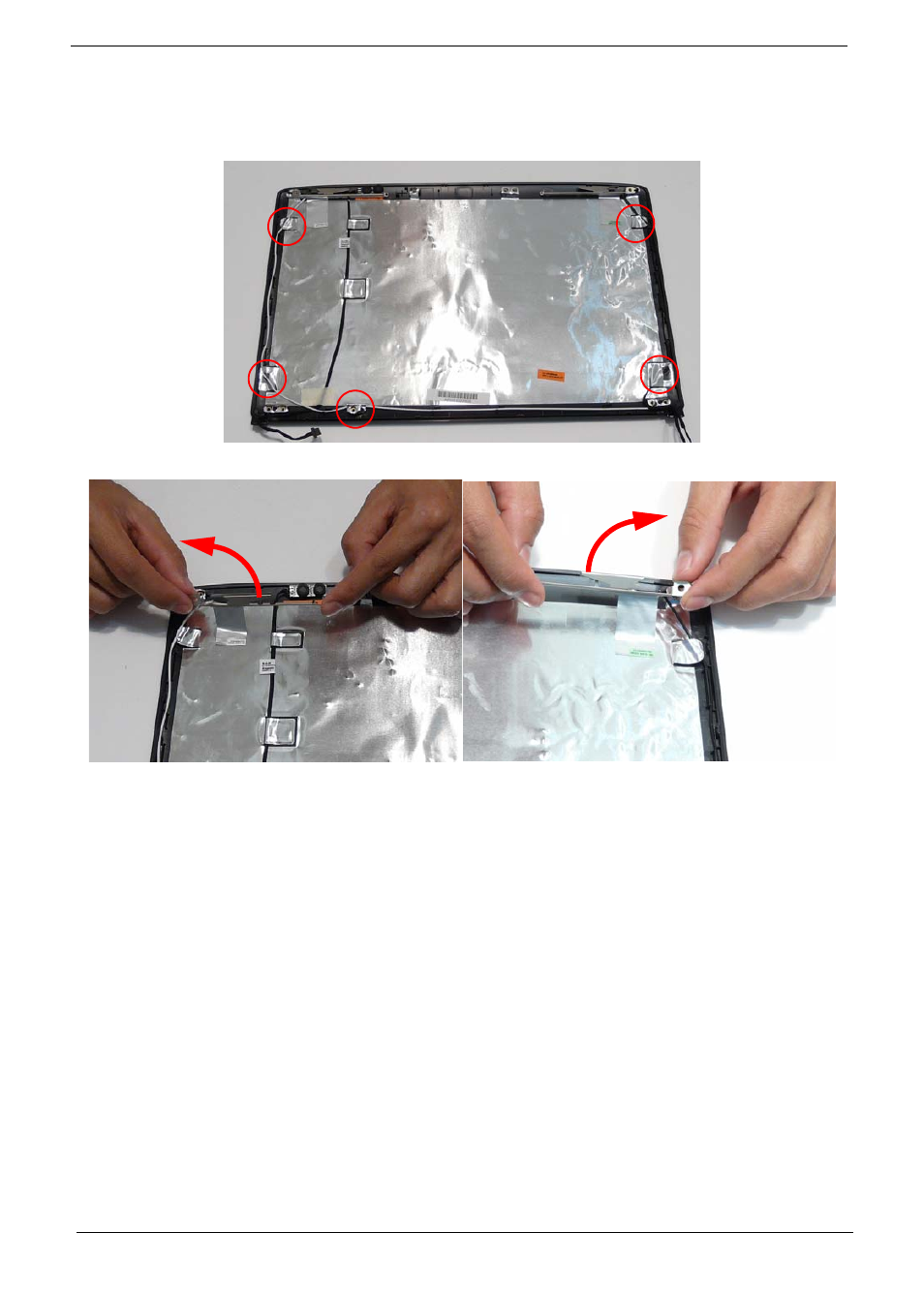

2. Remove the foil tabs holding the antenna cables in place. Ensure the cables are free from obstructions.
3. Remove the foil tabs securing the left and right antennas to the LCD module and lift the antennas clear.
4. Remove the antenna cables and assembly from the LCD module.
