Removing the USB Board

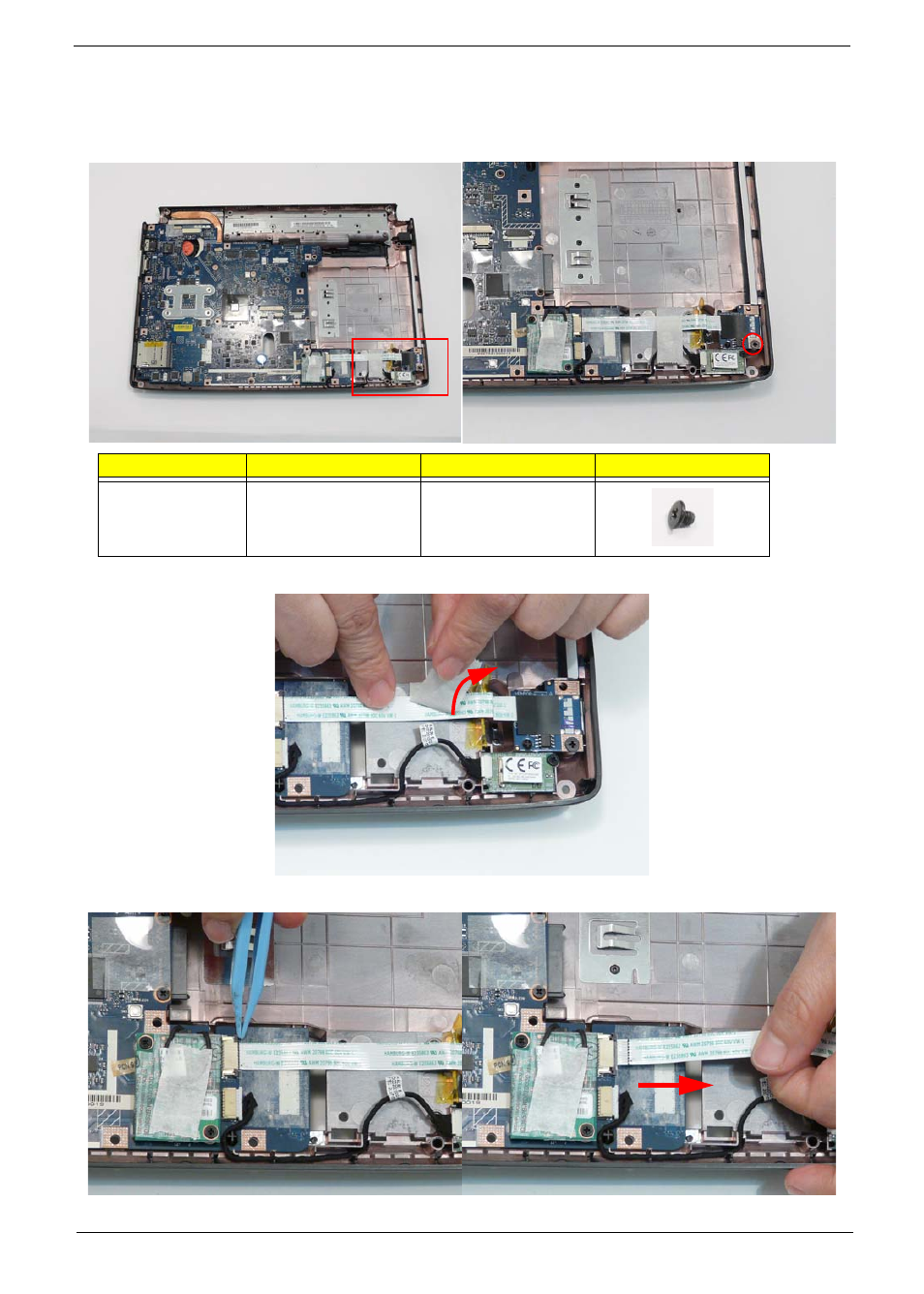

1. See “Removing the Upper Cover” on page 74.
2. Remove the one (1) securing screw from the USB board.
3. Remove the adhesive tape as shown.
4. Open the FFC locking latch and remove the FFC from the Mainboard.
Step
Size
Quantity
Screw Type
USB Board
M2.5*3
1
