3 Pin Input/Output Harness:
Dark Blue/Black Trace Wire: External Trigger Input
The Dark Blue/Black trace wire allows the remote start unit to be activated from an external source. The
intent of this wire is to allow the unit to be controlled from a "POSSE/CAR-LINK" paging system or similar
device. When this wire receives a ground pulse, the unit will start the vehicle. Connect this wire to a
ground pulsed output from the controlling circuit.
Green w/ White Trace Wire: Entry Illumination Ground Output
This wire provides a 30 second ground output (300 mA Max.) whenever the remote is used to unlock the
doors . This wire should be connected to an external relay, and wired to the vehicles interior entry lighting
whenever the optional Interior Illumination circuit is desired. See below for relay wiring details.
Black w/ White Trace Wire: 300 mA Horn Output
The black w/ white trace wire is provided to beep the vehicle’s horn. This is a transistorized low current
output, and should only be connected to the low current ground output from the vehicle’s horn switch.
If the vehicle uses a + 12 VDC horn switch, then connect the black w/ white trace wire to terminal 86 of the
AS 9256 relay ( or an equivalent 30 Amp automotive relay ), and connect relay terminal 85 to a fused + 12
VDC battery source. Connect relay terminal 87 to the vehicle’s horn switch output, and connect relay
terminal 30 to a fused + 12 VDC battery source.

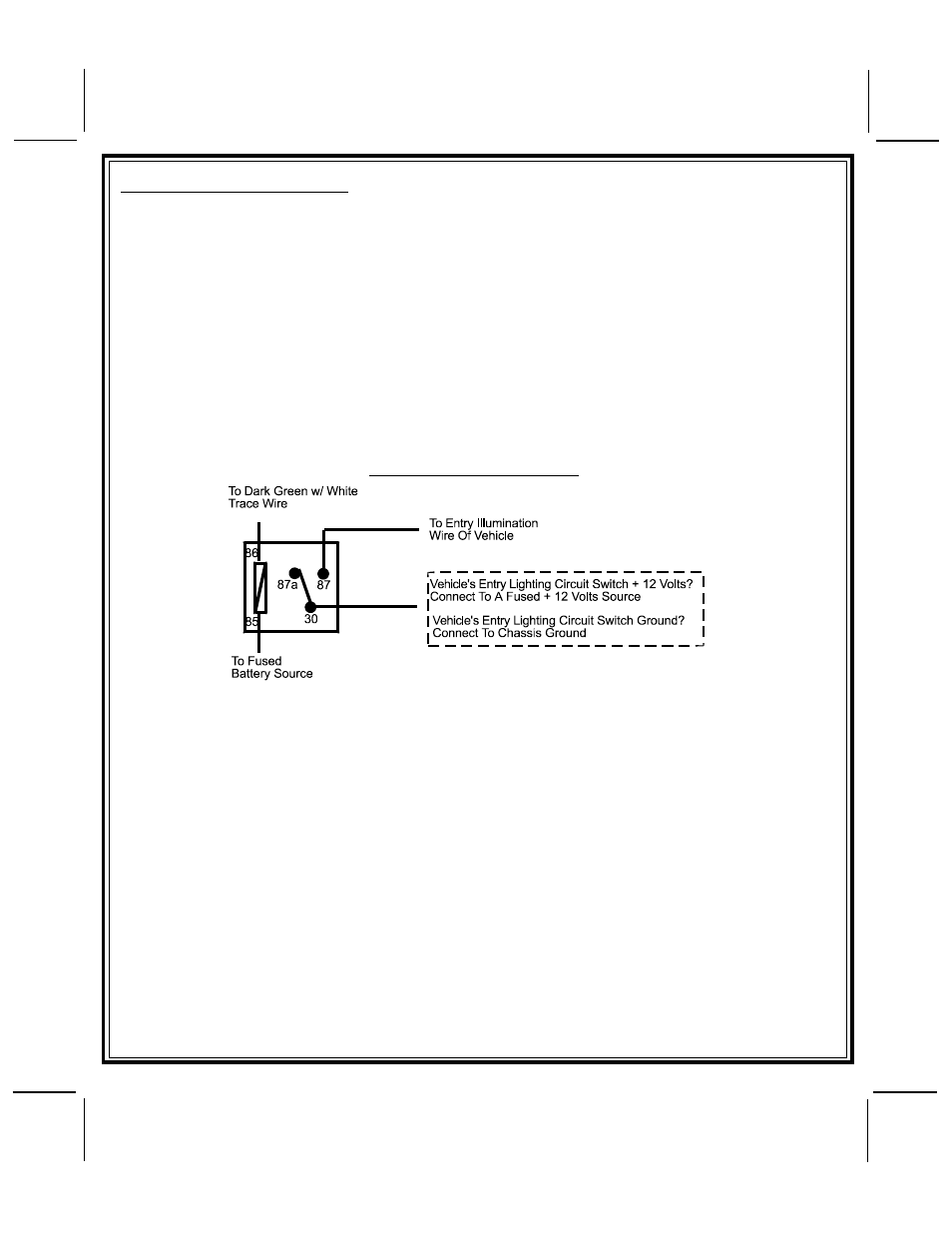

Entry Illumination Detail
1. RF Programmable Features:
Feature 1 Flash 2 Flash 3 Flash 4 Flash Default
1st Door Lock O/P 1S/1S 3.5S/3.5S 1S/Dbl1S 1S/1S
2nd Auto Locks On Off Off
3rd Auto Unlock Dr. Door All Doors Off Off
4th Run Time 5 Min 10 Min 15 Min 20 Min 10 Min.
5th Lights On Steady Flash Steady
6th Horn Timing Select 10mS 16mS 30mS 40mS 16mS
7th Input Check Voltage Tach Tach
8th Check Level > 0.5V B4 Start < 0.5V B4 Start >0.5
9th Ign 2 Crank Off On On
10th Diagnostics Off On Off
11 Crank Time 0.8Sec 1.0 Sec 1.5 Sec 2.0 Sec 1.0
12th Gas/Diesel Gas Diesel 10 Diesel 15 Diesel 20 Gas
13th 2nd Step Unlock On Off Off
NOTE: When selecting Diesel operation, (Feature #11), over gasoline, the only change is to the ignition
circuits. When Diesel is selected, the ignition circuits will power up for X seconds, as dictated by
the feature selection, before the start circuit. The intent of this feature is to allow the glow plug
warming required by some diesel engines. If your vehicle is a instant start diesel, it is not necessary
to activate this feature.
