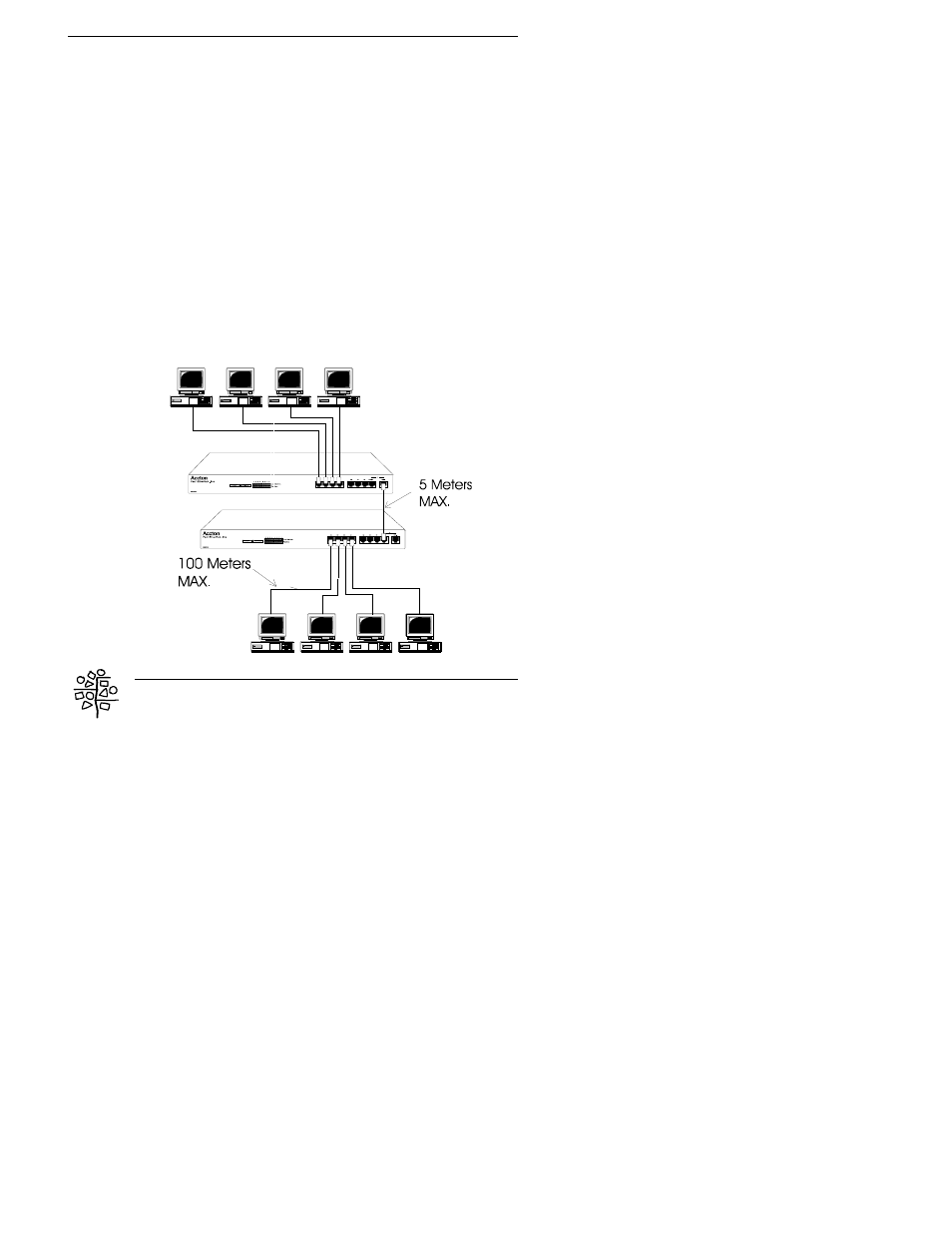

Uplink Multiple Hubs

If you want to connect more than 8/12 ports, you can use the uplink
port to connect to another hub. In compliance with the IEEE802.3u
Class II specification, two repeaters can be cascaded using 5 meters of
cable in a single collision domain.

1.

Connect a Category 5 UTP cable to the UPLINK port (Port 8/12)
on the first hub.

2.

Connect the other end of the UTP cable to any of Ports 1 - 8/12 on
the second hub (i.e., do not connect it to the UPLINK port on the
second hub).

? You do not need crossover cable if you use the uplink port.

? Do not connect the uplink port (Port 8/12) on first hub to the

uplink port (Port 8/12) on the second hub.
