SSC Series Central Chilling Stations
2. READY – Indicates that the pump is enabled and ready to run.
However, the current number of pumps specified to run does
not require this pump to operate. The color code for this
indication is yellow.
3. RUNNING – Pump is currently running. The color code for
this indication is green.
4. FAULT – A safety on the pump indicates a fault condition and
the pump has been deactivated. Once the problem is remedied,
the pump will return to a READY state unless it is put in the
OFFLINE state. The color code for this indication is red.
Operating Chiller Pumps
To turn on and off the pumps, start from the Main Menu, then:
Press the Up or Down buttons to highlight either “Chilled
Water Pump Tank Configuration”.
Press
↵

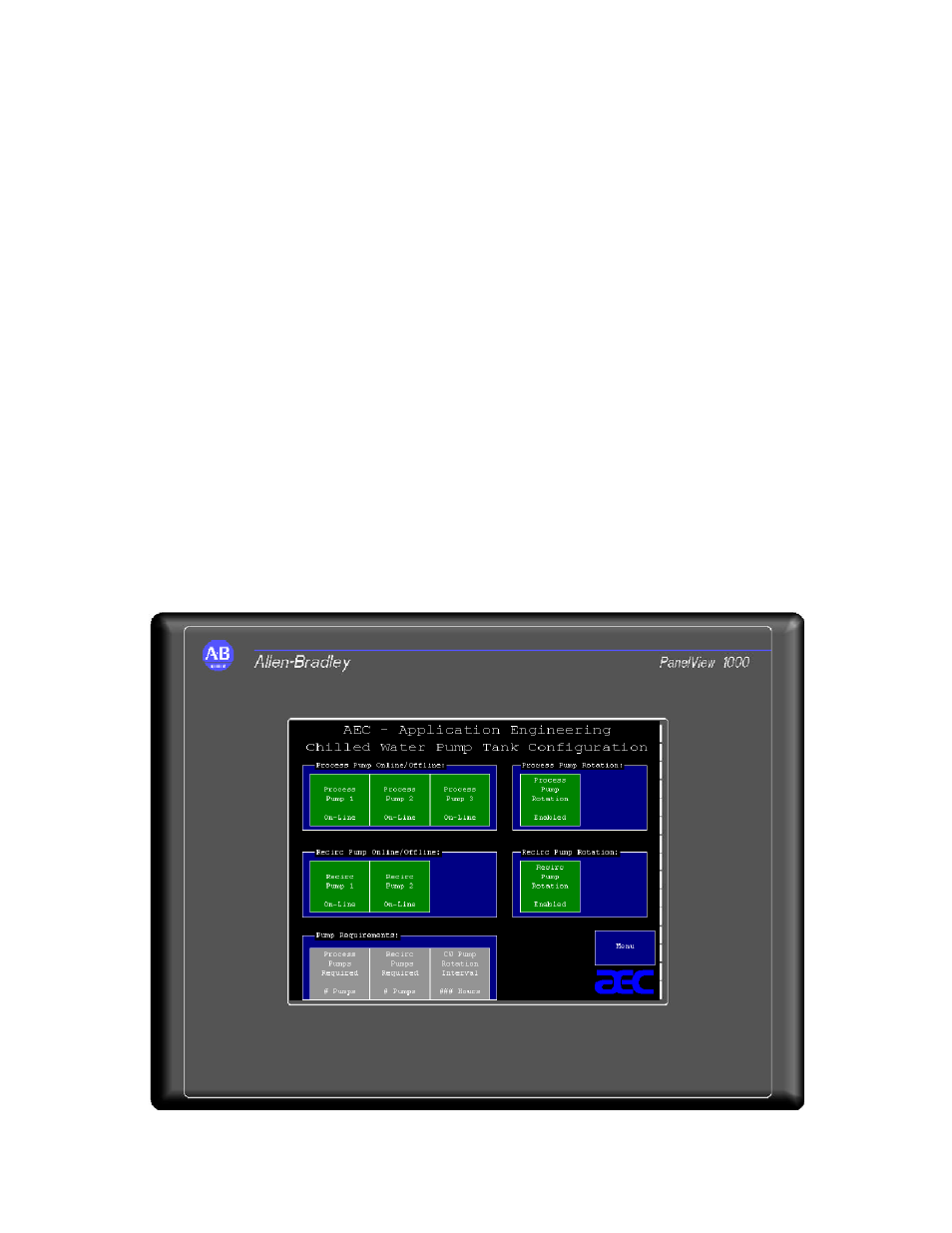

The Pump Enables Screen appears
Figure 13
Pump Enables Screen
