Dimensions

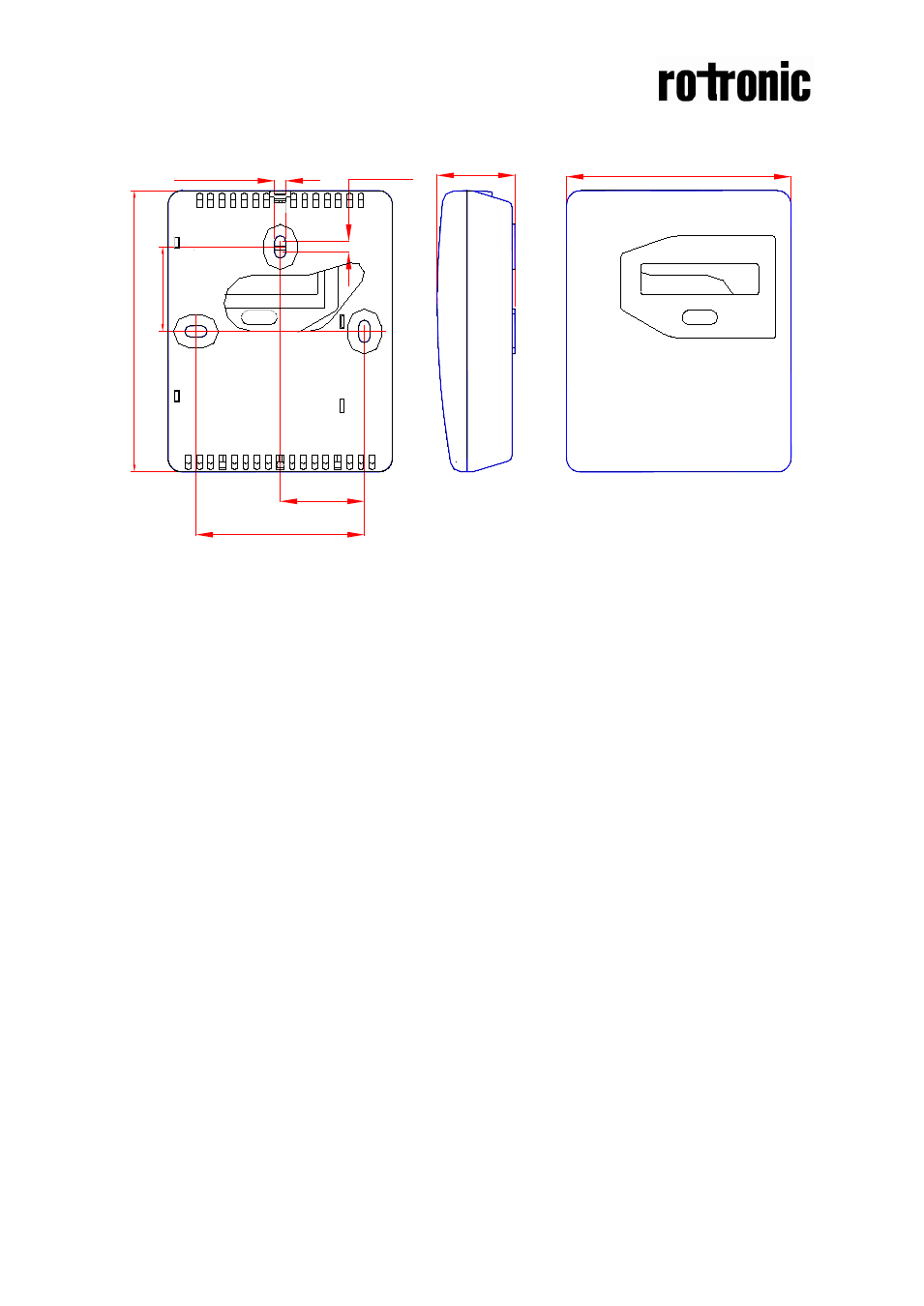

Figure 5. The dimensions of the sensor in mm and (inches)
Mounting of the sensor onto the wall
Please use screws with screw head diameter less than 7,5 mm (0,295 inches) and
screw head height less than 2,4 mm (0,094 inches).
80(3,15) 28(1,10)
30(1,18)
60(2,36)
4(0,16) 4(0,16)
3
0(1
,18)
1
00(3
,94)
