XProtect® American Dynamics CC300 Keyboard Smart Client Plug-in
www.milestonesys.com Page 11 Configuration & Licensing
•
Configure action from the setup module. This action is set to CAMERA by default.
•
The function can be activated by pressing a number followed by pressing CAMERA on the device. E.g.
press 65 and CAMERA will switch to camera with shortcut ‘65’.
Example of Select Monitor
To configure “Select Monitor” function,
•

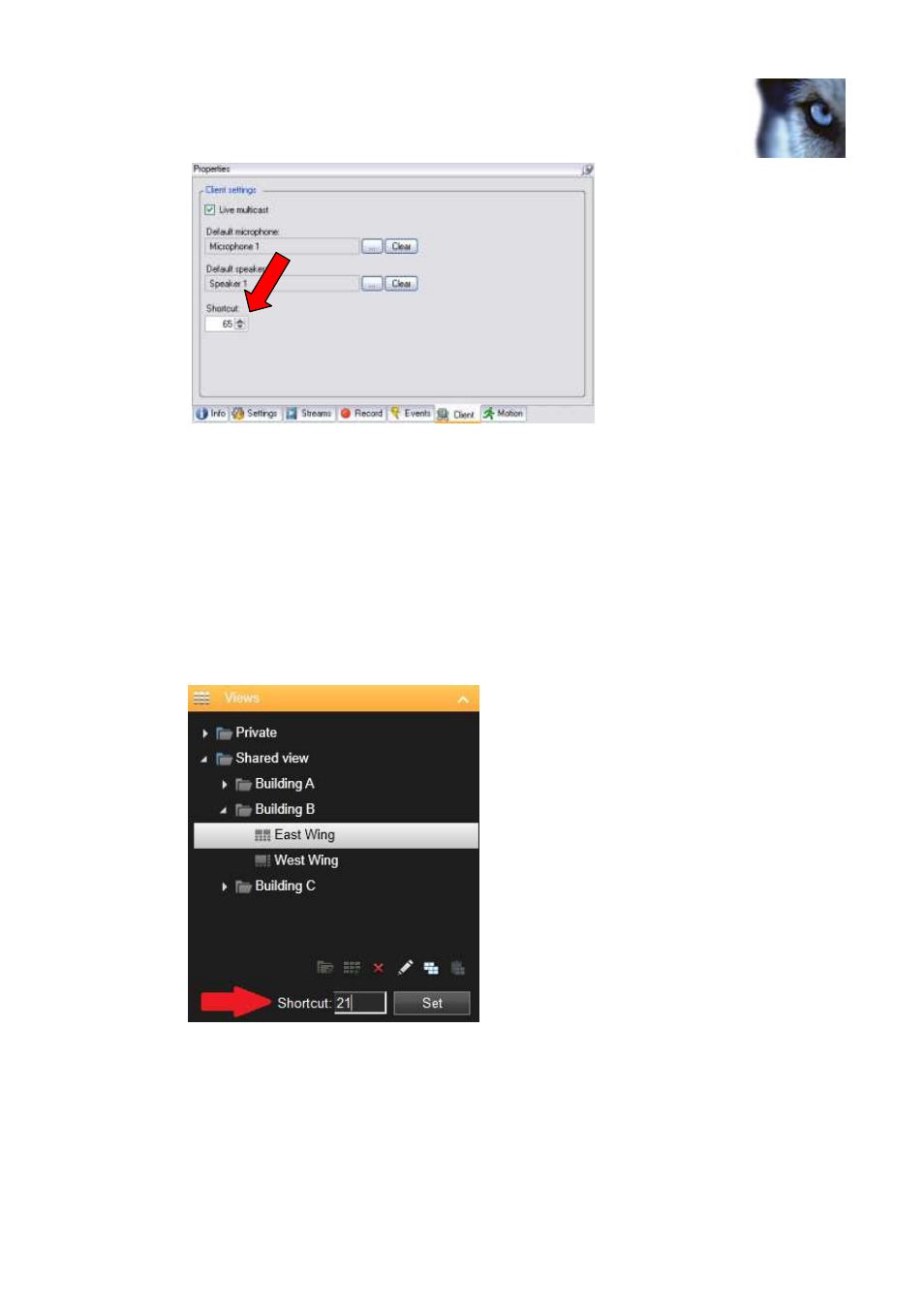

Make sure view number (shortcut) is defined, which are used to identify each view. This can be defined
in the Smart Client on the Setup tab.
Specify the required shortcut number in the Shortcut field.
•
Configure action from the setup module. This action is set to MONITOR by default.
•
The function can be activated by pressing a number followed by pressing MONITOR on the device. E.g.
press 21 and MONITOR will switch to view with shortcut ‘21’.
