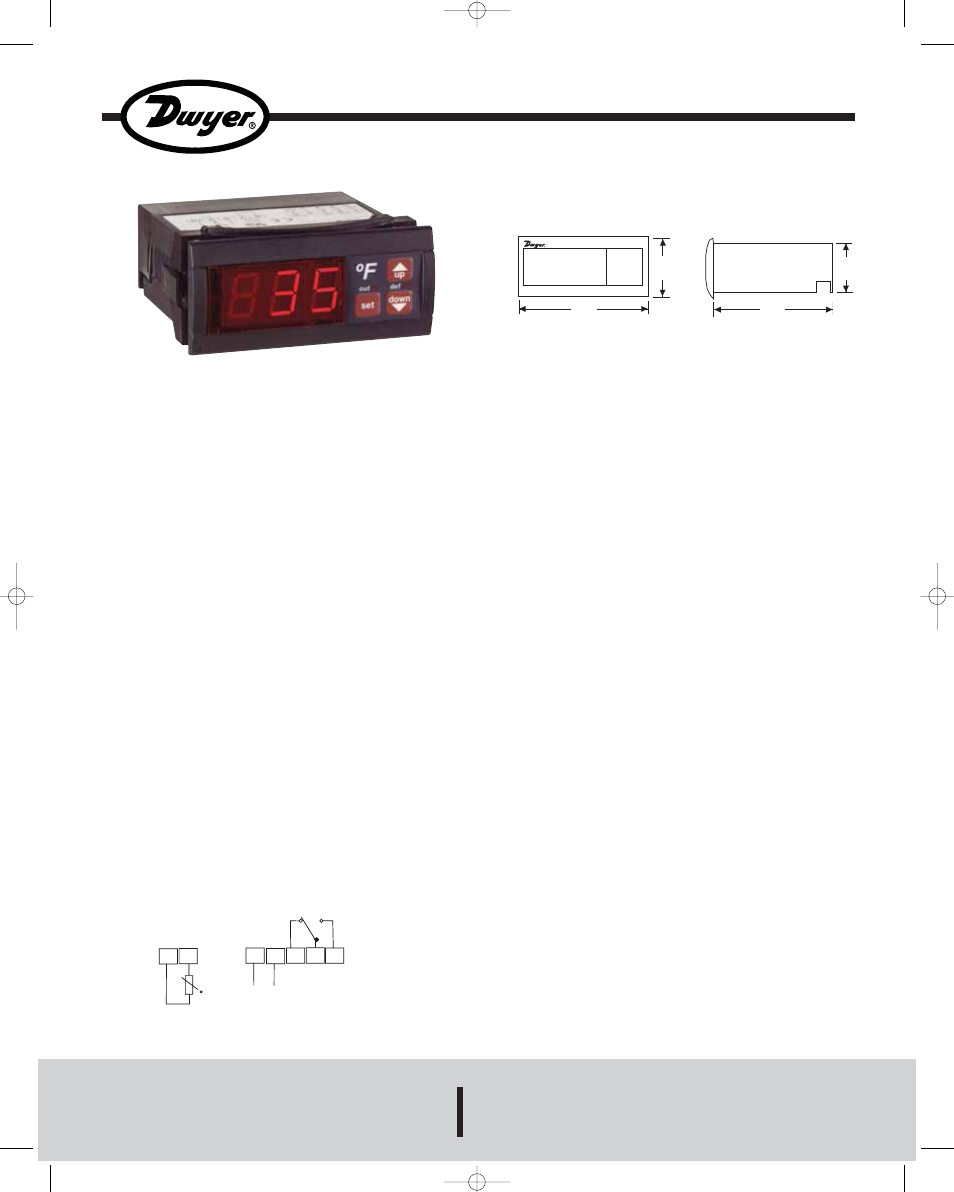

Series TS Digital Temperature Switch
Specifications - Installation and Operating Instructions
Bulletin E-90-TS
The TS Digital Temperature Switch is designed for many
heating and cooling applications. The probe temperature is
displayed on the bright 3-digit, red LED. The user is able to
program 12 different parameters including set point,
hysteresis, cycle time, and ambient probe adjustment using
the front keypad. The unit features error or alarm messaging
and password protection. Select between temperature
display in °F or °C, and 110 VAC, 230 VAC, or 12 VDC
power supplies. The TS includes a thermistor with 5 ft (1.5
m) cable, fitting clips for panel mounting, and instruction
manual.
INSTALLATION
NOTE:
Unit must be mounted away from vibration,
impacts, water and corrosive gases.
• Cut hole in panel 2.80 x 1.14 inches (71 x 29 mm).
• Apply silicone (or rubber gasket) around the perimeter of
the hole to prevent leakage.
• Insert unit into hole in the panel.
• Slide removable fitting clips onto unit from the back until
secure to panel.
• Remove back cover to wire unit.
• Wiring diagram is displayed on the top of the unit.
• (Note: PROBE CABLE LENGTH MUST NOT EXCEED
328 ft (100 m). DO NOT INSTALL PROBE CABLE NEAR
POWER CABLES).
• Replace cover once wiring is completed.
WIRING DIAGRAM
PARAMETERS
Description Units Range
SP Set Point Degrees r1 to r2
r0 Differential or Hysteresis Degrees 1 to 20
r1 Lower Value Set Point Degrees -50 to 150°
r2 Higher Value Set Point Degrees -50 to 302°F (-50 to 150°C)
d0 Heating or Cooling Control Option Ht/Co
d2 Time for Defrosting Minutes 0 to 59 min.
d8 Interval Time between Hours 1 to 24 hr.
Defrosting
c0 Min. Stop Time for Load Minutes 0 to 59 min.
c1 Continuous Cycle Time Hours 0 to 24 hr.
P1 Ambient Probe Adjustment Degrees -10 to 10
H5 Parameter Access Code Numeric 0 to 99 (SET AT 00 FROM FACTORY)
t0 Max. Temp. on Display Degrees -50 to 302°F (-50 to 150°C)
DWYER INSTRUMENTS, INC.
Phone: 219/879-8000 www.dwyer-inst.com
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46361, U.S.A. Fax: 219/872-9057 e-mail: [email protected]
SPECIFICATIONS
Probe Range: -58 to 302°F (-50 to 150°C).
Input: 1.5-inch (4 cm) thermistor (1000Ω @ 25°C) with 5-foot
(1.5 m) cable.
Accuracy: ±1°.
Resolution: ±1 digit.
Output: 16 amp SPDT relay @ 250 VAC.
Horsepower Rating (HP): 1 /
3
HP for 8 amp and 3 /
4
HP for
16 amp.
Supply Voltage: 110 VAC, 230 VAC or 12 VDC/VAC, 24
VDC/VAC (depending on model).
Supply Power: 4 VA (230 V).
Ambient Temp: 14 to 158°F (-10 to 70°C).
Storage Temperature: -4 to 176°F (-20 to 80°C).
Front Panel Protection: IP64.
Display: 3-Digit, Red or Green (depending on model).
2.95
[75]
1.34
[34]
2.72
[69]
1.10
[28]
1 2 7 8 9 10 11
SUPPLY
load
power
t
