Blue-White Flow Verification Sensor (FVS) - Manual (Page 3)

Industries, Ltd.
Blue-White
Industries, Ltd.
®
Page 2 FVS
Wiring Diagram
Foot Strainer
Strainer Adapter
Strainer Body
Screen Strainer
Suction Tubing
Part Number
C-340X
Exploded View

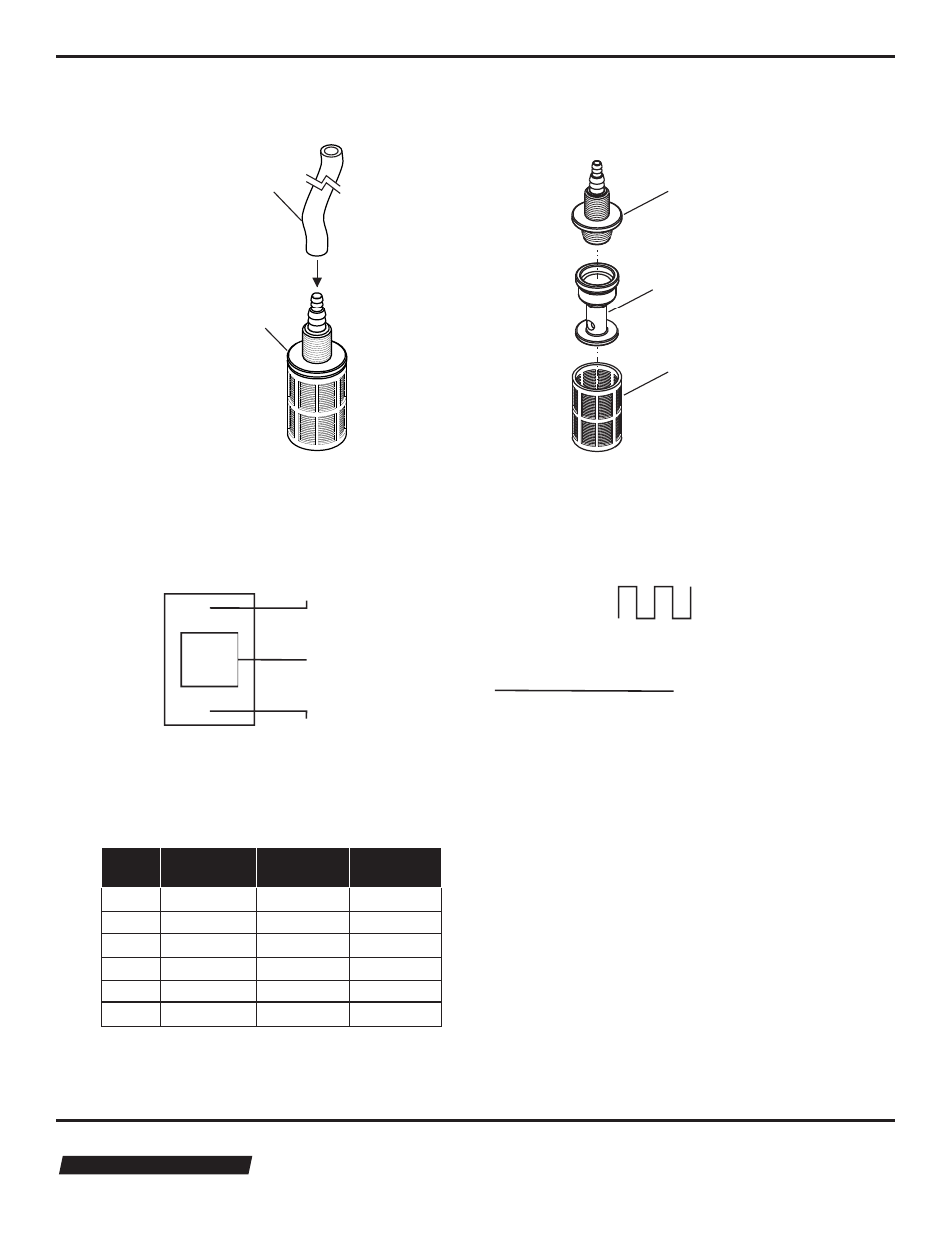

Your flow verification sensorpackage includes a Foot Strainer (see diagram below). This strainer will prevent any small
particles from entering and clogging the Micro Body. Diaphragm pumps will require a strainer and a check valve. The part
number for the strainer that includes a check valve is C-340A. Blue-White peristaltic pumps do not require a check valve.
Sensor
+
_
Red
0v dc
(True digital Square-wave output)
+5v dc
Bare
Black
(Ground)
Sensor connections:
Input voltage (vdc) 8 to 28 vdc
Output voltage (v) “high state” 4 80 v dc min (5 vdc normal)
Output voltage (v) “low state” 0 2v dc max
+ 5 Vdc (signal output)
8 to 28 Vdc (Positive)
K-Factors (pulses per fluid volume)
30-300 1
100-1000 2
200-2000 3
300-3000 4
500-5000 5
700-7000 6
181,336
81,509
42,051
25,153
15,737
9,375
Flow Range
(ml/min)
Body
Size
Pulses per
Gallon
21,535
13,752
6,646
4,157
2,477
Pulses per
Liter
47,909
Useful formulas
60 / K = rate scale factor
rate scale factor x Hz = flow rate in volume per minute
1 / K = total scale factor
total scale factor x n pulses = total volume
