Maintenance

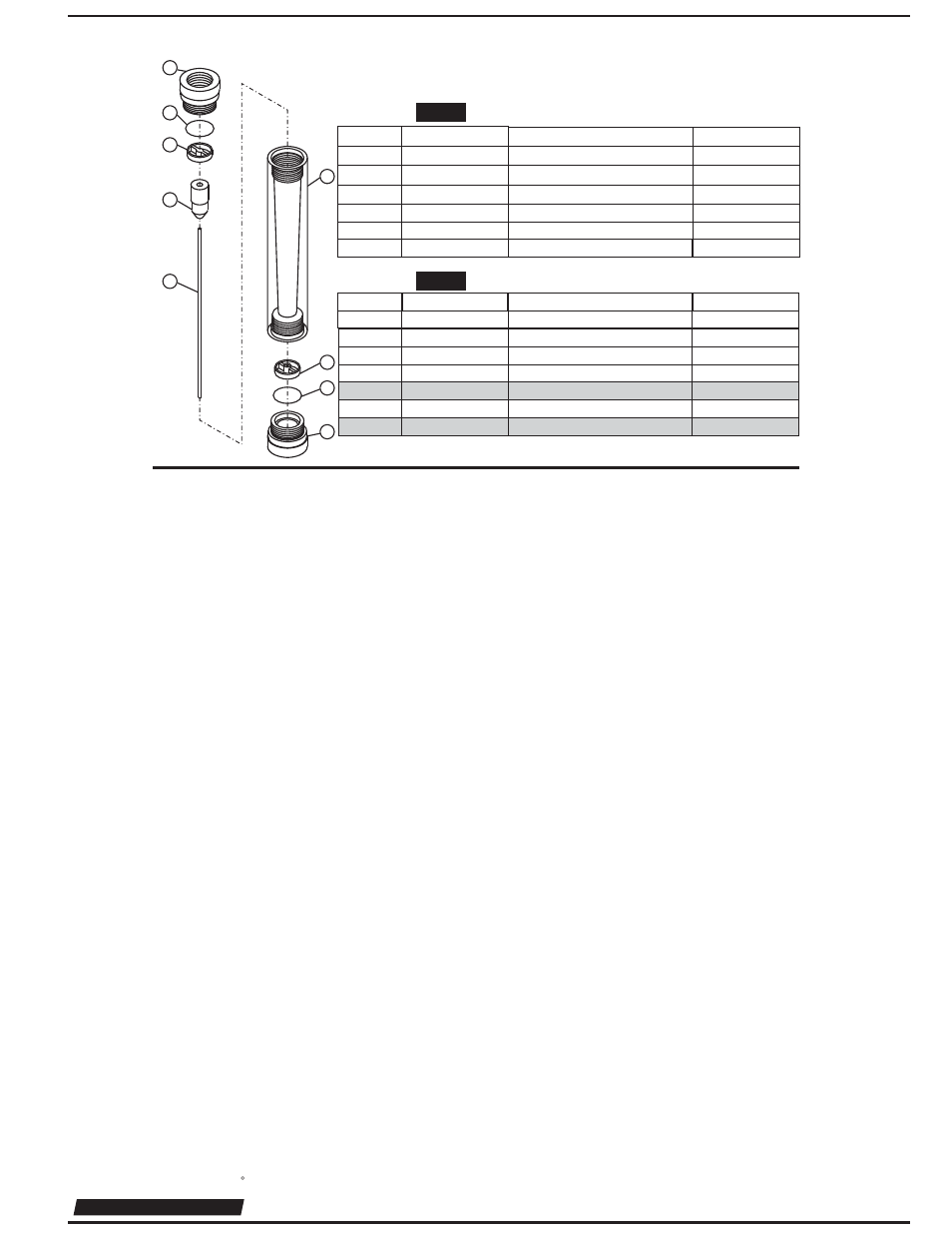

The “Exploded View” drawing illustrates assembly of the F-400N series meter. If your flowmeter needs to be
cleaned refer to this drawing when reassembling the unit. The tapered tube may be cleaned with a soft bottle
brush. Use a MILD soap and water solution for cleaning purposes. Hard water deposits can be removed with a
5% acetic acid solution (vinegar). 316 Stainless Steel components can be cleaned with a “Scotch-Brite” pad or
an appropriate metal cleaning solution. Note the floats “up” position.
BLUE-WHITE INDUSTRIES LIMITED WARRANTY
FLOWMETERS are warranted to be free of defects in material and workmanship for up to 12 months from the
date of factory shipment. Warranty coverage is limited to repair or replacement of the defective flowmeter only.
Blue-White Industries does not assume responsibility for any other damage that may occur.
This warranty does not cover damage to the flowmeter that results from misuse or alterations, nor damage that
occurs as a result of: meter misalignment, improper installation, over tightening, use of non- recommended
chemicals, use of non-reccomended adhesives or pipe dopes, excessive heat or pressure, or allowing the
meter to support the weight of related piping. Flowmeters are tested and calibrated with water and air only.
Although meters may be suitable for other chemicals, Blue-White cannot guarantee their suitability.
Flowmeters are repaired at the factory only. Call or write the factory to receive a Return Authorization Number,
carefully pack the flowmeter to be returned, including a brief description of the problem. Note the RA number
on the outside of the carton.
Prepay all shipping costs. The factory does not accept COD Shipments. Damage that occurs during shipping is
the responsibility of the sender.
BLUE-WHITE INDUSTRIES
5300 Business Drive - Huntington Beach, CA 92649 USA
(714) 893-8529 • FAX (714) 894-9492
1
2
3
4
5
6
3
2
1
Note: Shaded items (float and meterbody) are not sold separately
Parts List 3/4” and 1” FPT
Item
1
Catalog Number Description Amount Required
3/4” FPT Adapter PP
Guide wire, SS
2
3
4
5
6
F-4010K
F-4009
-
F-4013PP
F-4012
-
2
O-ring, 127, Viton
Wire holder, .75 - 1.0 PP
Float
Guide Wire, .125 x 8.5 SS
2
2
1
1
Meterbody
1 F-4011 1” FPT Adapter PP 2
1
F-410
Amount
Parts List 1/4”, 3/8” and 1/2” FPT
1
1
1
F-4019
76000-707
76000-708
1/4” FPT Adapter PVC 2
3/8” FPT Adapter PP 2
1/2” FPT Adapter PP 2
2
3
5
90003-119
F-4005
F-4004
O-ring, 127, Viton
Wire holder, 1/4” PSF
2
2
1
Description Catalog Item
F-400
Exploded View and Parts List
