C-1100v, Circuit board connections, Page 7 – Blue-White C-1100 CHEM-FEED Diaphragm Pump User Manual

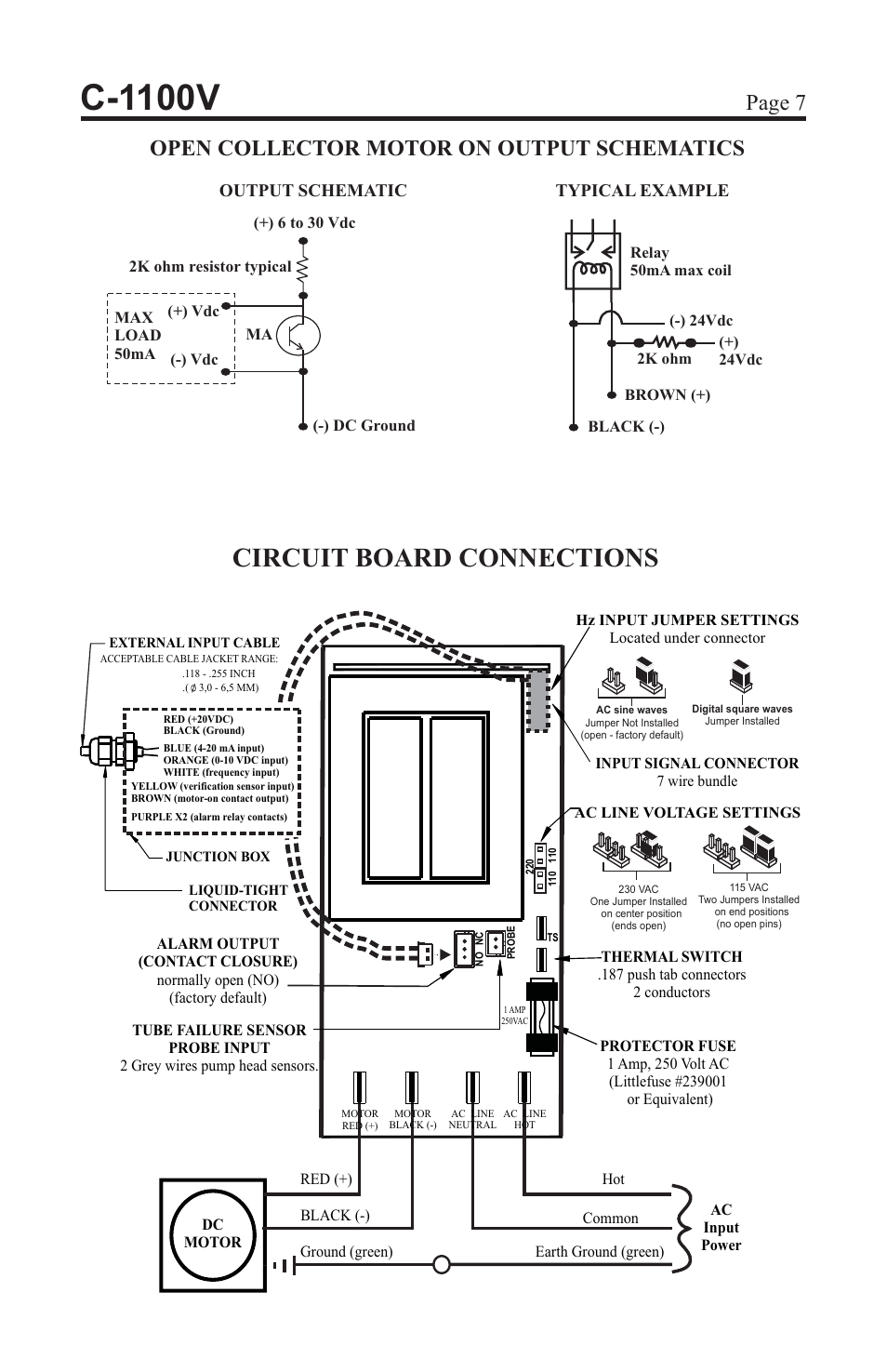

Page 7: Open collector motor on output schematics, Typical example output schematic

C-1100v, Circuit board connections, Page 7 | Open collector motor on output schematics, Typical example output schematic | Blue-White C-1100 CHEM-FEED Diaphragm Pump User Manual | Page 7 / 28 C-1100v, Circuit board connections, Page 7 | Open collector motor on output schematics, Typical example output schematic | Blue-White C-1100 CHEM-FEED Diaphragm Pump User Manual | Page 7 / 28
